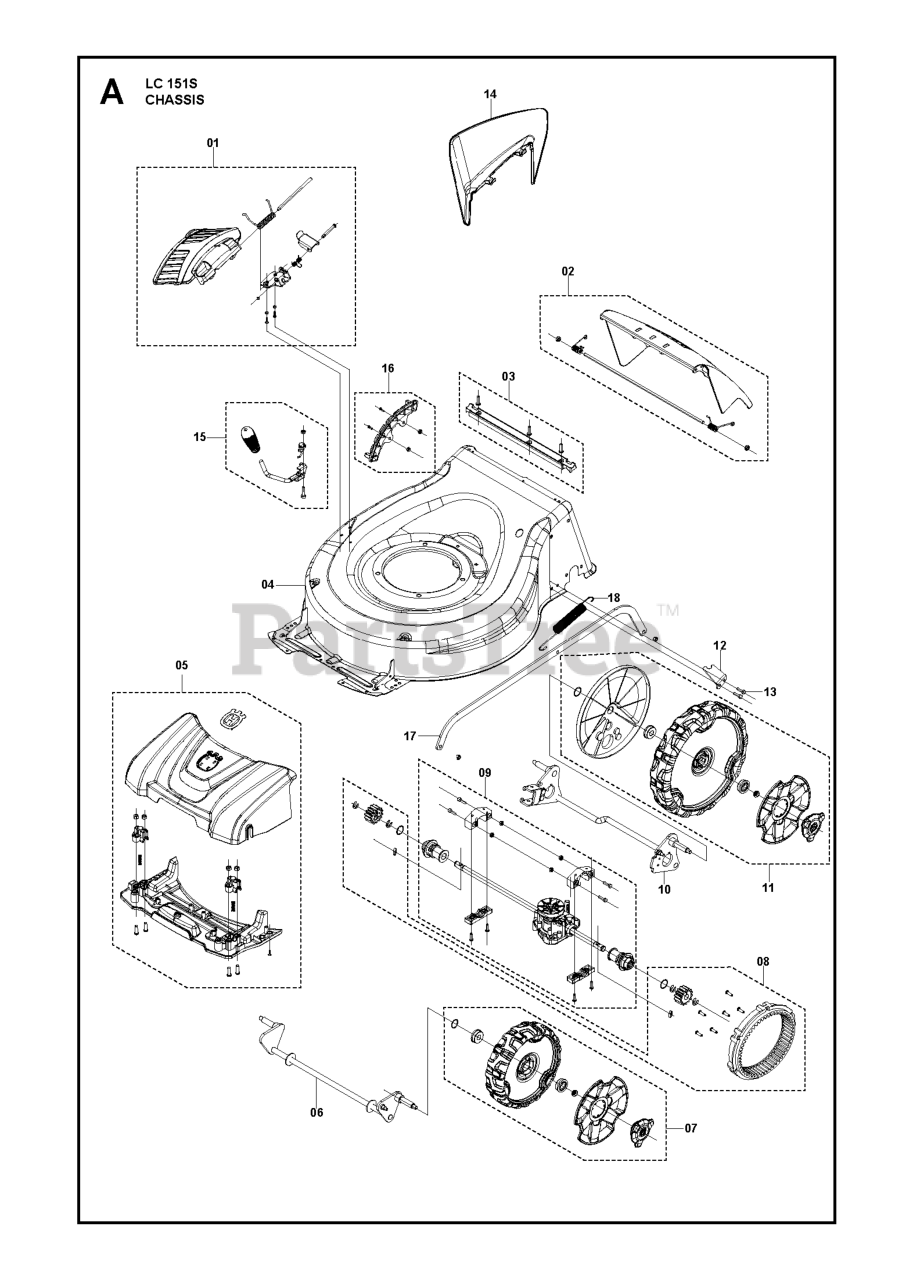

LC 151 S - Husqvarna Walk-Behind Mower (Original) CHASSIS Parts Diagram

Walk-Behind Mower

CHASSIS Parts Diagram

  • Title
15

Husqvarna 599139101

NEEDS DESCRIPTION

Note: For 970488401. HEIGHT ADJUSTMENT HANDLE.

$

$

Currently unavailable

17

Husqvarna 529596201

NEEDS DESCRIPTION

Note: For 970488402. HEIGHT ADJUSTMENT ROD.

$

$

Currently unavailable

15

Husqvarna 529595701

NEEDS DESCRIPTION

Note: For 970488402. HEIGHT ADJUSTMENT HANDLE.

$

$

Currently unavailable

12

Husqvarna 598860801

NEEDS DESCRIPTION

Note: GAUGE PLATE

$

$

Currently unavailable

14

Husqvarna 598819001

NEEDS DESCRIPTION

Note: SIDE PROTECTION COVER

$

$

Currently unavailable

18

Husqvarna 599138901

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT SPRING

$

$

Currently unavailable

10

Husqvarna 529595501

NEEDS DESCRIPTION

Note: For 970488402. WHEEL AXLE.

$

$

Currently unavailable

6

Husqvarna 529595301

NEEDS DESCRIPTION

Note: For 970488402. WHEEL AXLE.

$

$

Currently unavailable

11

Husqvarna 529595601

NEEDS DESCRIPTION

Note: For 970488402. REAR WHEEL.

$

$

Currently unavailable

3

Husqvarna 598684128

Seals

Note: SEALING PLATE

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 598861301

NEEDS DESCRIPTION

Note: BOLT CLIP

$

$

Currently unavailable

2

Husqvarna 598684119

NEEDS DESCRIPTION

Note: REAR DOOR

$

$

Currently unavailable

6

Husqvarna 598818701

NEEDS DESCRIPTION

Note: For 970488401. WHEEL AXLE.

$

$

Currently unavailable

7

Husqvarna 598512901

Wheels

Note: FRONT WHEEL

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 529596401

NEEDS DESCRIPTION

Note: For 970488402. WHEEL DRIVE.

$

$

Currently unavailable

16

Husqvarna 529595801

NEEDS DESCRIPTION

Note: For 970488402. HEIGHT ADJUSTMENT PLATE.

$

$

Currently unavailable

16

Husqvarna 599139001

NEEDS DESCRIPTION

Note: For 970488401. HEIGHT ADJUSTMENT PLATE.

$

$

Currently unavailable

17

Husqvarna 599138801

NEEDS DESCRIPTION

Note: For 970488401. HEIGHT ADJUSTMENT ROD.

$

$

Currently unavailable

10

Husqvarna 598684109

NEEDS DESCRIPTION

Note: For 970488401. WHEEL AXLE.

$

$

Currently unavailable

9

Husqvarna 598513701

Transmissions

Note: REAR TRANSMISSION

$113.99

$

In Stock, only 1 left!

0

1

Husqvarna 598684111

NEEDS DESCRIPTION

Note: SIDE DISCHARGE PLATE

$

$

Currently unavailable

8

Husqvarna 598684117

NEEDS DESCRIPTION

Note: For 970488401. WHEEL DRIVE.

$

$

Currently unavailable

4

Husqvarna 598861201

NEEDS DESCRIPTION

Note: CHASSIS

$

$

Currently unavailable

5

Husqvarna 598684122

NEEDS DESCRIPTION

Note: FRONT COVER

$

$

Currently unavailable

11

Husqvarna 598684103

NEEDS DESCRIPTION

Note: For 970488401. REAR WHEEL.

$

$

Currently unavailable
