LC 151 S (970488401) - Husqvarna Walk-Behind Mower CHASSIS Parts Diagram

Walk-Behind Mower

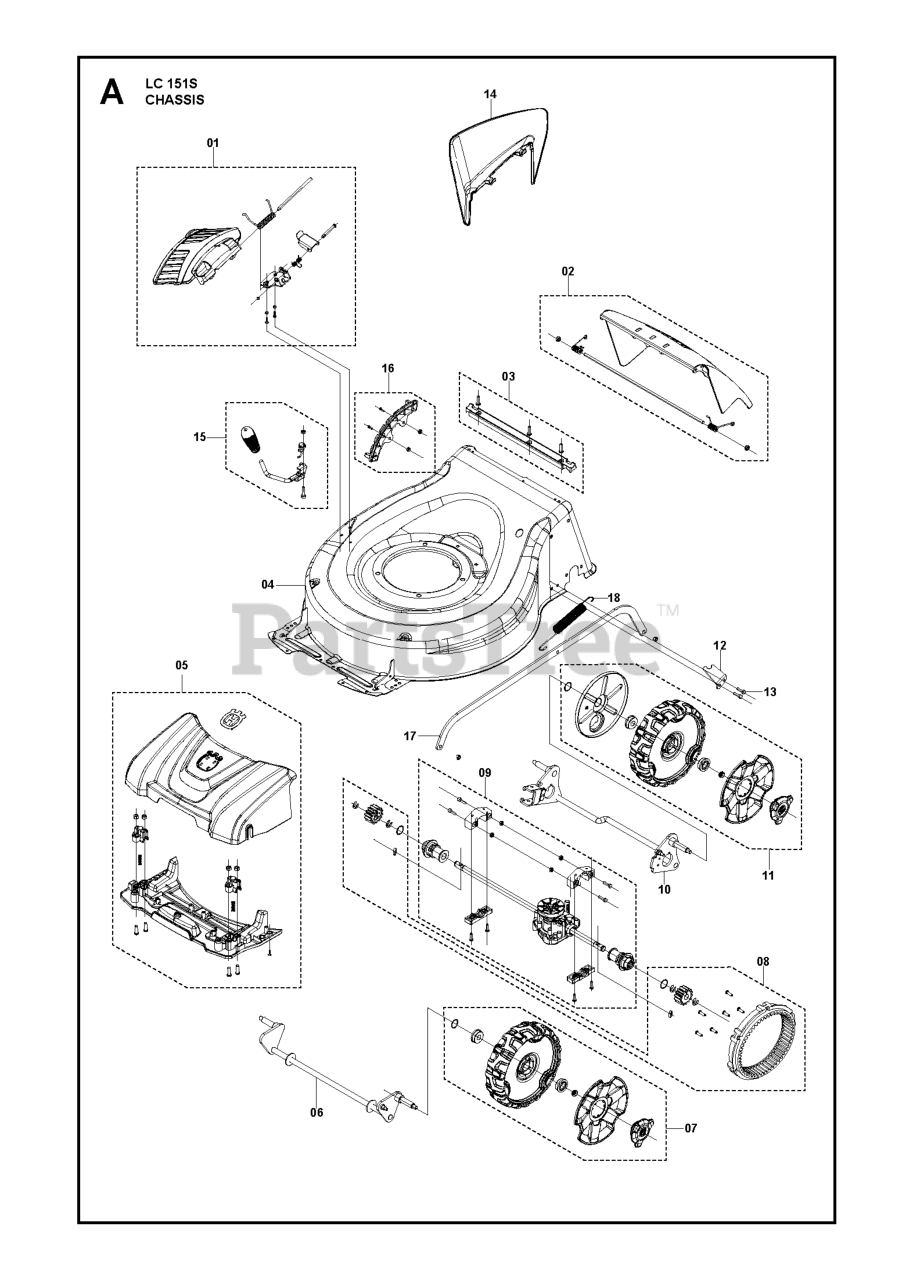

CHASSIS Parts Diagram

  • Title

11

Husqvarna 598684103

NEEDS DESCRIPTION

Note: REAR WHEEL

$

$

Currently unavailable

13

Husqvarna 598861301

NEEDS DESCRIPTION

Note: BOLT CLIP

$

$

Currently unavailable

6

Husqvarna 598818701

NEEDS DESCRIPTION

Note: WHEEL AXLE

$

$

Currently unavailable

1

Husqvarna 598684111

NEEDS DESCRIPTION

Note: SIDE DISCHARGE PLATE

$

$

Currently unavailable

17

Husqvarna 599138801

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT ROD

$

$

Currently unavailable

14

Husqvarna 598819001

NEEDS DESCRIPTION

Note: SIDE PROTECTION COVER

$

$

Currently unavailable

2

Husqvarna 598684119

NEEDS DESCRIPTION

Note: REAR DOOR

$

$

Currently unavailable

4

Husqvarna 598861201

NEEDS DESCRIPTION

Note: CHASSIS

$

$

Currently unavailable

12

Husqvarna 598860801

NEEDS DESCRIPTION

Note: PLATE GAUGE PLATE

$

$

Currently unavailable

5

Husqvarna 598684122

NEEDS DESCRIPTION

Note: FRONT COVER

$

$

Currently unavailable

8

Husqvarna 598684117

NEEDS DESCRIPTION

Note: WHEEL DRIVE

$

$

Currently unavailable

3

Husqvarna 598684128

Seals

Note: SEALING PLATE

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 598513701

Transmissions

Note: REAR TRANSMISSION

$113.99

$

In Stock, only 1 left!

0

10

Husqvarna 598684109

NEEDS DESCRIPTION

Note: WHEEL AXLE

$

$

Currently unavailable

18

Husqvarna 599138901

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT SPRING

$

$

Currently unavailable

16

Husqvarna 599139001

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT PLATE

$

$

Currently unavailable

15

Husqvarna 599139101

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT HANDLE

$

$

Currently unavailable

7

Husqvarna 598512901

Wheels

Note: FRONT WHEEL

$34.99

$

Usually ships in 3-10 days

0
