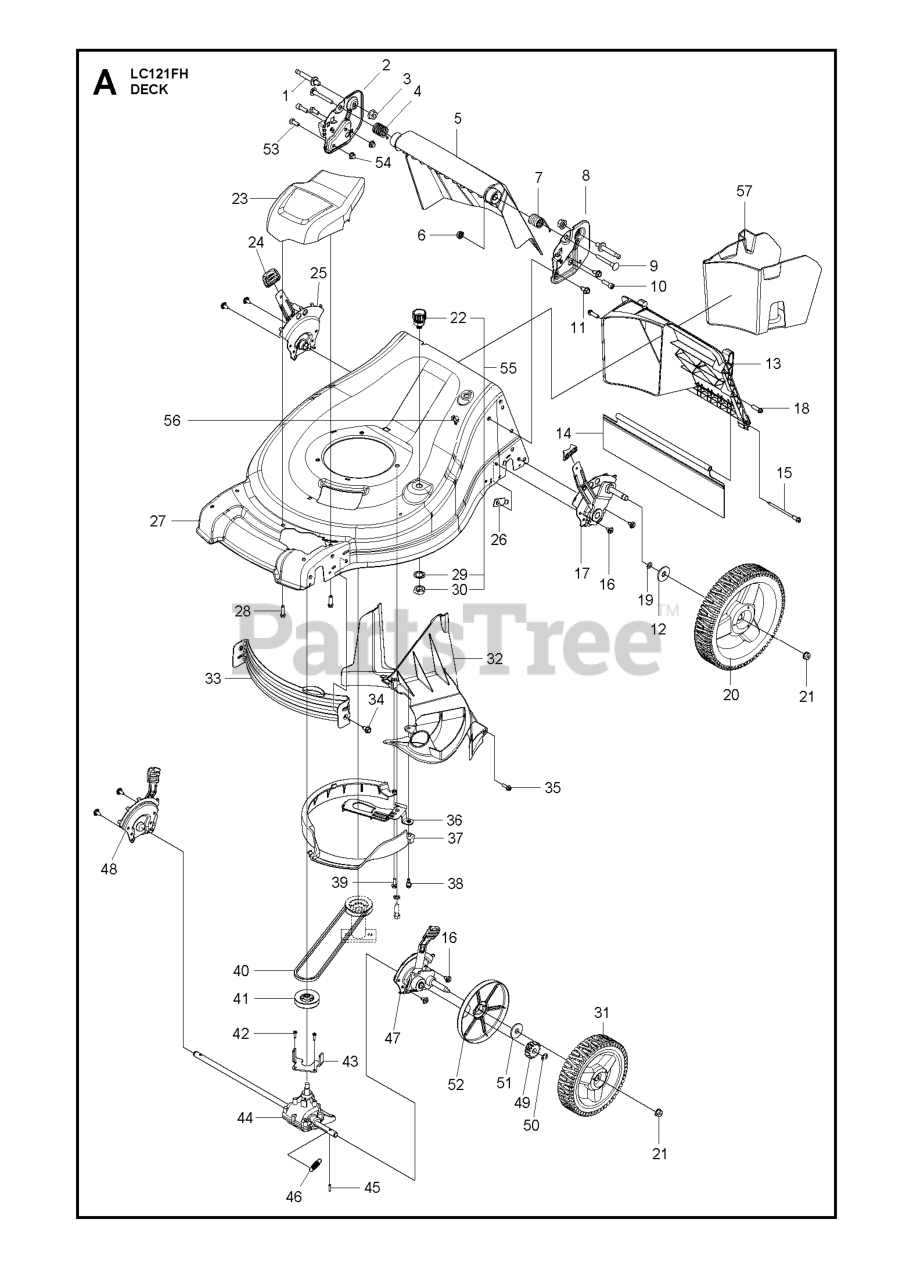

LC 121 FH (961480061-00) - Husqvarna 21" Walk-Behind Mower (2017-10) MOWER DECK / CUTTING DECK Parts Diagram

21" Walk-Behind Mower

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 587015201

BOLT.HAND.PIVOT.3125-18.21EFF

Note: Handle Pivot 5 /16-18

$12.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589197802

BRACKET.HANDLE.ADJ.21EF.RH.498

Note: Adjustable Handle Right

$

$

Not available

3

Husqvarna 587599901

NUT.FLANGE.SERRAT.3125-18.5625

Note: Serrated Flange 5 /16-18

$4.99

$

In Stock, Qty 12

0

4

Husqvarna 587250601

SPRING.RH.DOOR.21 EFF

Note: Right Door

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 586138001

DOOR.REAR.21 EFF.GRY
(Superseded to 586138004)

Note: Rear

$31.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532413284

NUT.FLANGED.3/8-16.ZINC

Note: Flanged 3 /8-16

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 587249801

SPRING.LH.DOOR.21 EFF

Note: Left Door

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 589197602

BRACKET.HANDLE.ADJ.21EF.LH.498

Note: Adjustable Handle Left

$

$

Not available

9

Husqvarna 587198901

BOLT.DOOR.PIVOT..375-16.21EFF

Note: Pivot 3 /8-16

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 587281101

SCREW.HI-LO,5/16-14 X T-45

Note: Hi-Lo 5 /16-14 X T-45

$3.49

$

In Stock, only 2 left!

0

11

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

Note: Hex 5 /16

$7.49

$

In Stock, Qty 12

0

12

Husqvarna 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

13

Husqvarna 586137501

INSERT.REAR.21 EFF

Note: Rear

$26.99

$

Usually ships in 3-10 days

0

14

Husqvarna 586698801

SKIRT.REAR.21 EFF

Note: Rear

$13.99

$

In Stock, only 1 left!

0

15

Husqvarna 587438201

SCREW.HI-LO.5/16-14 X 4.10

Note: Hi-Lo 5 /16-14 X 4 10

$4.99

$

In Stock, Qty 6

0

16

Husqvarna 581127601

SCREW

Note: 1 /4-20 Tri-lobe

$7.99

$

In Stock, Qty 11

0

17

Husqvarna 582261806

HEIGHT ADJUSTER ASSY, 4 PT, 21

Note: 4-Point Left Rear

$21.99

$

Usually ships in 3-10 days

0

18

Husqvarna 587281101

SCREW.HI-LO,5/16-14 X T-45

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 588268602

WHEEL.11X1.75.H3SPK.RAD3.BB1

Note: 11 X 1 75

$26.99

$

In Stock, only 2 left!

0

21

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

Note: Lock Hex Flange 3 /8-16

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

Note: Blue

$24.99

$

In Stock, only 2 left!

0

23

Husqvarna 587794002

COVER DRIVE, HALF, 21 IN EFF H

Note: Drive FWD

$62.99

$

In Stock, only 1 left!

0

24

Husqvarna 532701037

SELECTOR KNOB

Note: Ergonomic

$5.99

$

In Stock, only 4 left!

0

25

Husqvarna 582261805

HEIGHT ADJUSTER ASSY, 4 PT, 21

Note: 4-Point Right Rear Idler

$21.99

$

Usually ships in 3-10 days

0

26

Husqvarna 587147301

STRAP.PLATE ATTACH.21 EFF.GLV

Note: Height Adjuster Bracket

$

$

Not available

27

Husqvarna 588610234

Housing Assembly Kit, 21Eff Fwd 668

Note: 21 FWD

$113.99

$

Usually ships in 3-10 days

0

28

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: Hi-Lo 5 /16 x 1 00

$4.99

$

In Stock, Qty 6

0

29

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

Note: Star

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

Note: Hex

$6.49

$

In Stock, only 4 left!

0

31

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

Note: 8 x 1 75

$34.99

$

In Stock, Qty 5

0

32

Husqvarna 586560401

COVER.BELT/REAR BAFFLE.21 EFF

Note: Belt /Rear Baffle

$20.99

$

In Stock, Qty 20+

0

33

Husqvarna 586698601

BAFFLE.FRONT.21 EFF

Note: Front

$

$

Not available

34

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

Note: Hex 5 /16

$7.49

$

In Stock, Qty 12

0

35

Husqvarna 587599801

SCREW.HI-LO.13-16X.750.375XDRV
(Superseded to 532194189)

Note: Hi-Lo 13-16 X 750

$7.49

$

In Stock, Qty 20+

0

36

Husqvarna 587280402

BRACKET.BELT KEEPER.2

Note: Belt Keeper Engine

$

$

Not available

37

Husqvarna 587081001

RING.STRIPPER.21 EFF

Note: Ring

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 581726101

BOLT SHOULDER_1/4-20_TRILOB

Note: Shoulder 1 /4-20 Tri-lobe

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 587599801

SCREW.HI-LO.13-16X.750.375XDRV
(Superseded to 532194189)

Note: Hi-Lo 13-16 x 750

$7.49

$

In Stock, Qty 20+

0

40

Husqvarna 532175436

BELT.DRIVE.21FGD.1SPEED

Note: Drive

$24.99

$

In Stock, Qty 5

0

41

Husqvarna 586989701

PULLEY.DRIVEN.EZ/VARI (2 2MC)

Note: Transmission

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532163409

SCREW

Note: 12 x 5 /8 Hi /Lo Thread

$7.49

$

In Stock, Qty 6

0

43

Husqvarna 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP

Note: Belt Keeper Transmission FWD

$

$

Not available

44

Husqvarna 589486501

TRANSMISSION.21EFF.FW

Note: FWD

$48.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

46

Husqvarna 532406558

SPRING

Note: Return Front Transmission

$8.99

$

In Stock, Qty 7

0

47

Husqvarna 586920109

ADJUSTER.4PT.21EFF.LF/RR.BLK

Note: 4-Point Left Front

$

$

Not available

48

Husqvarna 586920111

ADJUSTER.4PT.21EFF.RF/LR.BLK

Note: 4-Point Right Front

$

$

Not available

49

Husqvarna 532403849

PINION.14.TEETH.FGD

Note: 14 Tooth

$6.99

$

In Stock, Qty 8

0

50

Husqvarna 812000058

E-RING 7/16 RE

Note: 7 /16 RE-Style

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532067725

WASHER FLUT

Note: 1 /2 x 1-1 /2 x 134

$7.49

$

In Stock, Qty 20+

0

52

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

Note: Wheel

$6.99

$

In Stock, only 1 left!

0

53

Husqvarna 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

55

Husqvarna 532421114

KIT.WASH-OUT.PORT

Note: Washout Kit

$24.99

$

In Stock, only 2 left!

0

56

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 586922701

PLUG.MULCH.21 EFF

$26.99

$

In Stock, Qty 20+
