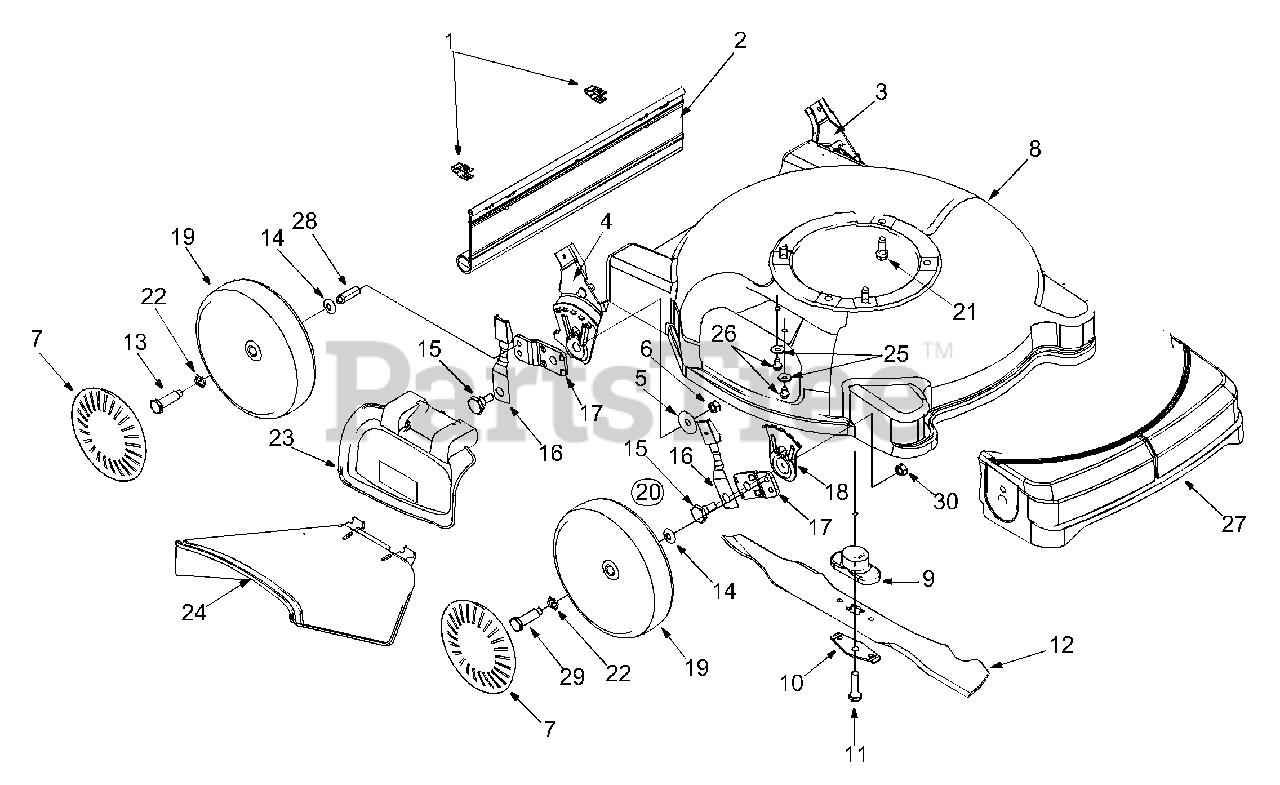

LC-106 (11C-109B190) - White Outdoor 20" Walk-Behind Mower (2001) General Assembly Parts Diagram

20" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

2

White Outdoor 731-0872A

Rear Flap
(Superseded to 731-0872B)

Note: Model LC-106 Only

$39.99

$

In Stock, Qty 6

0

White Outdoor 731-1028

Rear Flap

Note: Model LC-40 Only

$34.99

$

In Stock, only 1 left!

0

3

White Outdoor 682-3025

Handle Bracket Ass'y LH
(Superseded to 987-02107A)

Note: Model LC-106 Only

Variations

White Outdoor 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

White Outdoor 682-3001A

Handle Bracket Ass'y LH
(Superseded to 753-05962)

Note: Model LC-40 Only

$65.99

$

Usually ships in 3-6 days

0

4

White Outdoor 682-3024

Handle Bracket Ass'y RH
(Superseded to 987-02106A)

Note: Model LC-106 Only

Variations

White Outdoor 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3000A

Handle Bracket Ass'y RH
(Superseded to 753-05962)

Note: Model LC-40 Only

$65.99

$

Usually ships in 3-6 days

0

5

UNKNOWN

$

$

Not available

6

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

7

White Outdoor 731-0981A

Hub Cap: Grey
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

8

White Outdoor 682-0139

Deck Assembly

Note: Model LC-106 Only

Variations

White Outdoor 682-0139-0606

DECK ASSY-20" MAJE - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-0139-0665

DECK ASSY- 20" - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-0139-0629

DECK ASSY- 20" - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-0139-0638

DECK ASSY- 20" - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-0139-0650

DECK ASSY- 20" - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-0139-0662

DECK ASSEMBLY-OYSTER GREY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-0139-0668

DECK ASSY- 20" - MOSS GREEN (0668)

$

$

Not available

White Outdoor 682-0139-0689

DECK ASSY- 20" - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-0139-0691

DECK ASSY- 20" - BLACK JACK (0691)

$

$

Not available

White Outdoor 682-0139-0709

DECK ASSY- 20" - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 682-0139-0716

DECK ASSY- 20" - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-0139-4021

DECK ASSY- 20" - CUB YELLOW 2 (4021)

$

$

Not available

$

$

White Outdoor 682-0018B

Deck Assembly

Note: Model LC-40 Only

Variations

White Outdoor 682-0018B-0650

No Longer Available DECK ASM-18 3-N-1 - RED METALLIC (0650)

$

$

Not available

$

$

9

White Outdoor 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

10

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

11

White Outdoor 710-1044

Hex Bolt 7/16-20 x 1.5"

$3.99

$

In Stock, only 1 left!

0

12

White Outdoor 742-0740

20" Mulch Blade
(Superseded to 942-0740)

Note: Model LC-106 Only

$23.99

$

In Stock, Qty 5

0

White Outdoor 742-0738

18" Mulch Blade
(Superseded to 942-0738)

Note: Model LC-40 Only

$28.99

$

Usually ships in 3-6 days

0

13

White Outdoor 738-0213

Axle Bolt

Note: Model LC-40 Only

$7.99

$

In Stock, only 2 left!

0

14

White Outdoor 736-0105

Bell Washer .400" ID x .88"

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 738-0507B

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 14832

Spring Lever Ass'y w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

17

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

18

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

19

White Outdoor 734-2008

Wheel Assembly
(Superseded to 734-2008A)

$58.99

$

In Stock, only 1 left!

0

20

White Outdoor 14578

Height Adj. Ass'y. Comp. R.F.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp. L.F.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

21

White Outdoor 710-0654A

Hex Lock Wash. Hd. Screw 3/8- 16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

23

White Outdoor 682-7002

Mulching Plug

$

$

Not available

24

White Outdoor 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

25

White Outdoor 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 710-0599

Hex Wash. Hd. TT Screw 1/4- 20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 731-1948

Cover: Front End

Note: Model LC-106 Only

$

$

Not available

28

White Outdoor 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

30

White Outdoor 712-0431

Hex Flange L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0
