LC-106 (11B-108C190) - White Outdoor 20" Walk-Behind Mower (1999) Handle And Shroud Parts Diagram

20" Walk-Behind Mower

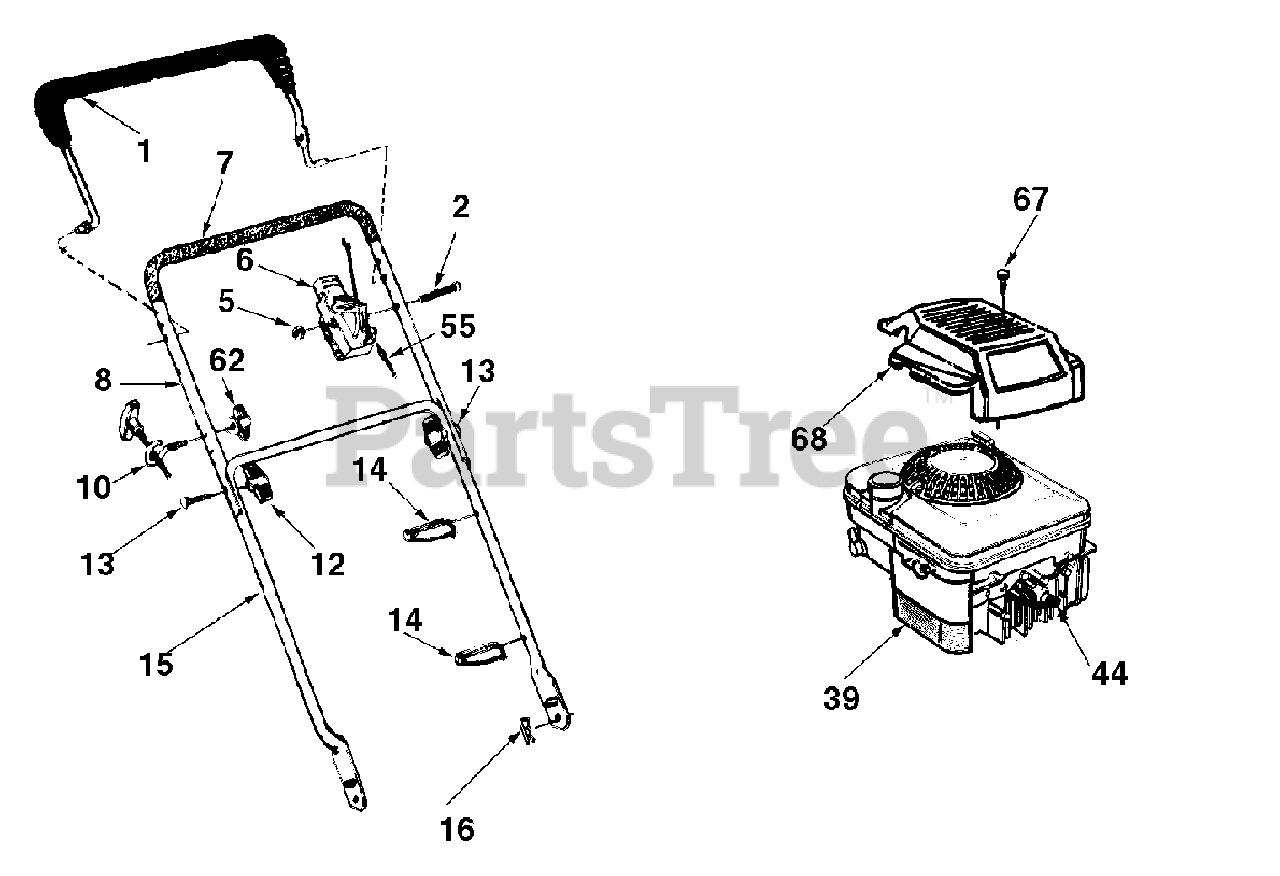

Handle And Shroud Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

White Outdoor 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 17

0

6

White Outdoor 746-0883

Control Housing

$16.99

$

In Stock, only 4 left!

0

7

White Outdoor 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

8

White Outdoor 749-0538C-0637

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

10

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

12

White Outdoor 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

13

White Outdoor 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

White Outdoor 749-0928-0637

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

16

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

39

Engine

$

$

Not available

44

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

55

White Outdoor 746-0553

Control Cable
(Superseded to 946-0553)

$24.99

$

Usually ships in 3-6 days

0

62

White Outdoor 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

67

White Outdoor 710-1256

Hi-Lo Screw

Note: For model LC-106 only

$5.99

$

In Stock, only 3 left!

0

68

White Outdoor 751B281451

Engine Shroud

Note: For model LC-106 only

$

$

Not available

White Outdoor 777S30118

Danger Label (Cut Hand)

$11.99

$

In Stock, only 1 left!

0

White Outdoor 777S30108

Discharge Door

$

$

Not available

777D00299

Hub Caps

$

$

Not available

777D00587

Label Engine

Note: For model LC-40 only

$

$

Not available

777D02249

Label Engine

Note: For model LC-106 only

$

$

Not available
