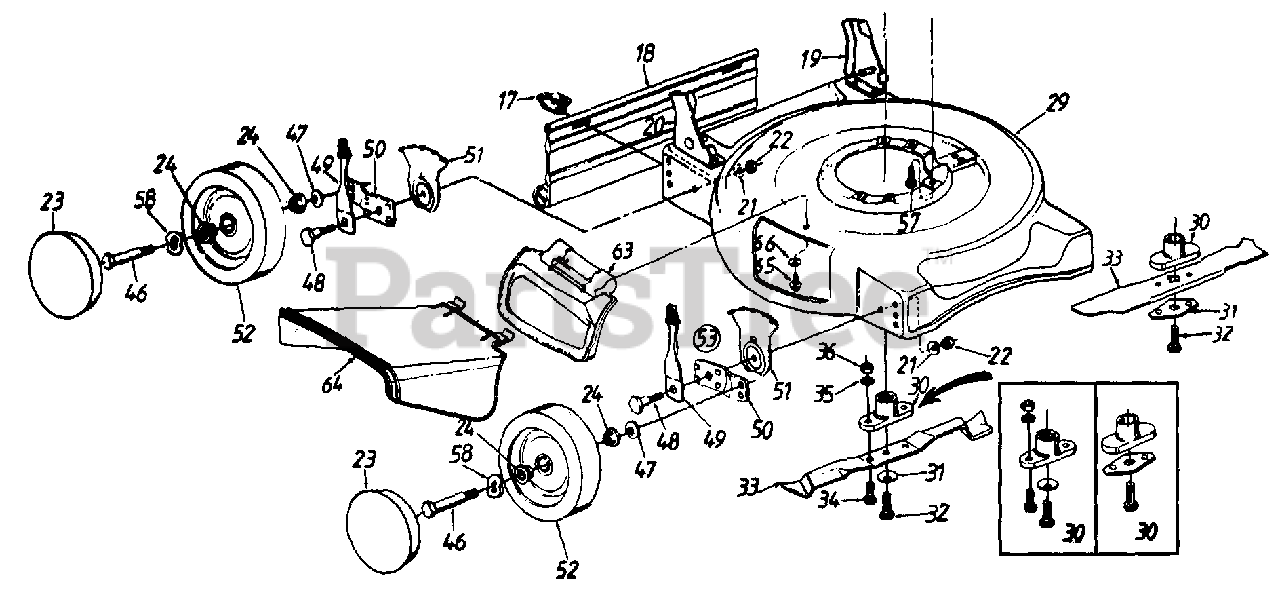

LC-106 (11A-106F190) - White Outdoor 20" Walk-Behind Mower (1997) Wheels, Blades, And Deck Ass'y Parts Diagram

20" Walk-Behind Mower

Wheels, Blades, And Deck Ass'y Parts Diagram

  • Title

17

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

White Outdoor 731-1447

Rear Flap

Note: (106F)

$

$

Not available

White Outdoor 731-1028

Rear Flap

Note: (702A/E)

$34.99

$

In Stock, only 1 left!

0

19

White Outdoor 12935B

Hdle Brkt. Assy. L.H.

Note: (106F)

Variations

White Outdoor 12935B-0637

No Longer Available BRACKET ASSY-HDLE- - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 682-3001A

Hdle Brkt. Assy. L.H.
(Superseded to 753-05962)

Note: (702A/E)

$65.99

$

Usually ships in 3-6 days

0

20

White Outdoor 12936B

Hdle Brkt. Assy. R.H.

Note: (106F)

Variations

White Outdoor 12936B-0637

No Longer Available BRACKET ASSY-HDLE- - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 682-3000A

Hdle Brkt. Assy. R.H.
(Superseded to 753-05962)

Note: (702A/E)

$65.99

$

Usually ships in 3-6 days

0

21

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

23

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

Note: (106F)

$10.99

$

In Stock, only 2 left!

0

24

White Outdoor 741-0180

Bearing
(Superseded to 941-0180)

Note: (106F)

$18.99

$

Usually ships in 3-6 days

0

29

682-0016-0662

20" Deck Assy.

Note: (106F)

$

$

Not available

White Outdoor 682-0018-0662

18" Deck Assy.

Note: (702A/E)

$

$

Not available

30

White Outdoor 753-0484

Blade Adapter Kit

Note: Blade secured with 2 bolts.

$23.99

$

In Stock, only 1 left!

0

White Outdoor 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

Note: Blade secured with 1 bolt.

$16.99

$

In Stock, only 1 left!

0

31

White Outdoor 736-0452

Bell-Wash. .46" I.D.

Note: Blade secured with 2 bolts.

$4.99

$

In Stock, Qty 5

0

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

Note: Code: N Notates a new part (not previously existing)

$5.99

$

In Stock, Qty 14

0

32

White Outdoor 710-1044

Hex Bolt 7/16-20 x 1.5" Lg.

$3.99

$

In Stock, Qty 8

0

33

White Outdoor 742-0720

20" Mulch Blade
(Superseded to 942-0720)

Note: (106F) Blade secured with 2 bolts.

$31.99

$

In Stock, only 1 left!

0

White Outdoor 742-0718

18" Mulch Blade
(Superseded to 942-0718)

Note: (702A/E) Blade secured with 2 bolts.

$

$

Not available

White Outdoor 742-0740

20" Mulch Blade
(Superseded to 942-0740)

Note: (106F) Blade secured with 1 bolt.

$23.99

$

In Stock, Qty 5

0

White Outdoor 742-0738

18" Mulch Blade
(Superseded to 942-0738)

Note: (702A/E) Blade secured with 1 bolt.

$28.99

$

Usually ships in 3-6 days

0

34

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

Note: Blade secured with 2 bolts.

$4.99

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0169

L-Wash. 3/8" I.D.

Note: Blade secured with 2 bolts.

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

Note: Blade secured with 2 bolts.

$4.49

$

In Stock, Qty 13

0

?45

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 2, 3, 4, 5, 6)

$36.99

$

In Stock, only 1 left!

0

46

White Outdoor 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 14832

Spring Lever Assy. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

White Outdoor 734-1819

Wheel Assy. Comp.
(Superseded to 734-1978)

Note: Code: N Notates a new part (not previously existing)

$48.99

$

Usually ships in 3-6 days

0

53

White Outdoor 14578

Ht Adj. Assy. Comp. R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Ht Adj. Assy. Comp. L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

57

White Outdoor 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 736-0504

Wave Washer .51" I.D.
(Superseded to 936-0504)

Note: (106F)

$4.49

$

In Stock, Qty 9

0

63

White Outdoor 682-7000

Mulching Plug

Note: (106F)

$

$

Not available

White Outdoor 682-7002

Mulching Plug

Note: (702A/E)

$

$

Not available

64

White Outdoor 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

65

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 777-0148

Throttle Instruction Label
(Superseded to 777I20287)

$

$

Not available

White Outdoor 777-0870

Danger Label (Cut Hand)

$

$

Not available

White Outdoor 777-1299

Warning Label (Chute Cover)
(Superseded to 777S30108)

$

$

Not available

White Outdoor 777-3801A

Safety Label (Cur. Deck/106F)
(Superseded to 777S30142)

Note: Code: N Notates a new part (not previously existing)

$13.99

$

Usually ships in 3-6 days

0

MTD 777-1557

Danger Label (St. Deck/702A/E)

$

$

Not available

777-4719

Decorative Label (Shroud/106F)

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

777-4852

Decorative Label (Hubcaps/106F)

Note: Code: N Notates a new part (not previously existing)

$

$

Not available
