LBB-4200 - Lesco Backpack Blower Intake, Exhaust, Air Cleaner Parts Diagram

Backpack Blower

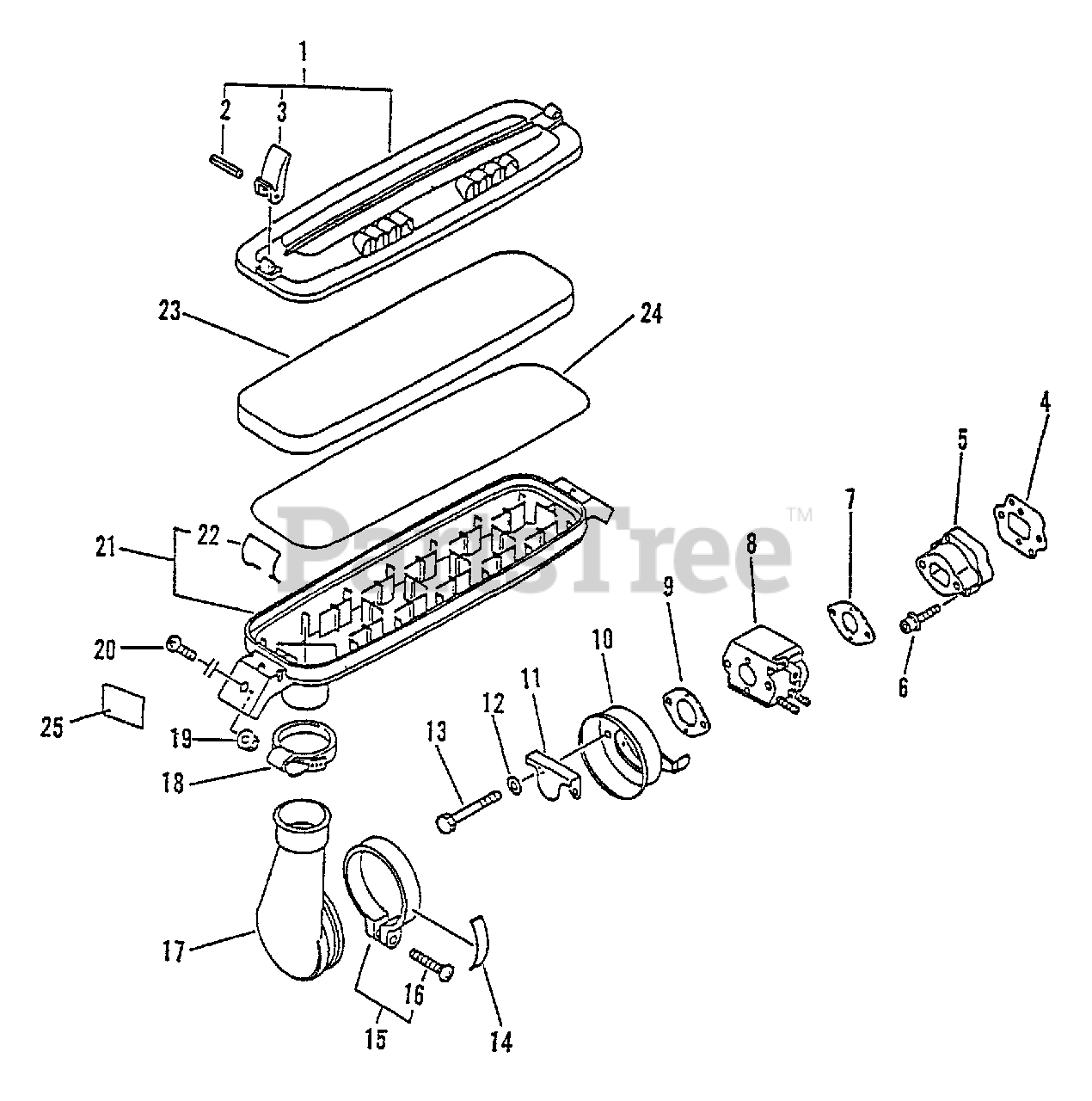

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title
1

Echo 13030809360

COVER, AIR FILTER

Note: INCLUDES ITEMS 2 & 3

$11.99

$

Usually ships in 2-4 days

0

2

Echo 90034530025

PIN - SPRING -- 3X25

$1.99

$

In Stock, only 2 left!

0

3

Echo 13034109360

KNOB
(Superseded to Discontinued)

$

$

Not available

4

Echo 13001010322

GASKET, INTAKE
(Superseded to 13001010323)

$1.49

$

In Stock, Qty 20+

0

5

Echo 13000703460

INSULATOR, INTAKE
(Superseded to 13000703461)

$10.99

$

In Stock, only 2 left!

0

6

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

7

Echo 13001606433

GASKET, INTAKE
(Superseded to 13001606434)

$0.99

$

In Stock, Qty 20+

0

8

Echo 12520008261

CARBURETOR C1M-K24A
(Superseded to 12520008560)

$76.99

$

In Stock, only 1 left!

0

9

Echo 13001603730

GASKET, INTAKE
(Superseded to 13001603731)

$0.99

$

In Stock, Qty 20+

0

10

Echo 13040509862

BRACKET, AIR CLEANER
(Superseded to A221000000)

$10.99

$

In Stock, only 1 left!

0

11

Echo 12901108260

PLATE, PREVENT
(Superseded to A244000020)

$2.99

$

In Stock, only 1 left!

0

12

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 90022005050

SCREW - 5X55

$0.99

$

Usually ships in 2-4 days

0

14

Echo 89015808260

LABEL - CHOKE

$1.49

$

In Stock, Qty 8

0

15

Echo 21040000660

CLAMP KIT
(Superseded to P021043140)

$7.49

$

In Stock, Qty 10

0

16

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

17

Echo 13071108260

ADAPTOR, INTAKE

$22.99

$

In Stock, only 2 left!

0

18

Echo 13071504260

CLAMP
(Superseded to 13071508260)

$1.99

$

In Stock, only 2 left!

0

19

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

20

Echo 90020905014

SCREW - 5X14
(Superseded to 9154005014)

$0.99

$

In Stock, Qty 20+

0

21

Echo 13030708260

AIR FILTER CASE ASSY

$23.99

$

Usually ships in 2-4 days

0

22

Echo 13103208260

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

23

Echo 13031008260

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

24

Echo 13031708360

FILTER, AIR - FOAM

$12.99

$

In Stock, only 1 left!

0

25

Echo 89018708360

TIE, CABLE - LARGE

$6.99

$

Usually ships in 2-4 days

0
