LBB-4200 - Lesco Backpack Blower Ignition, Starter Parts Diagram

Backpack Blower

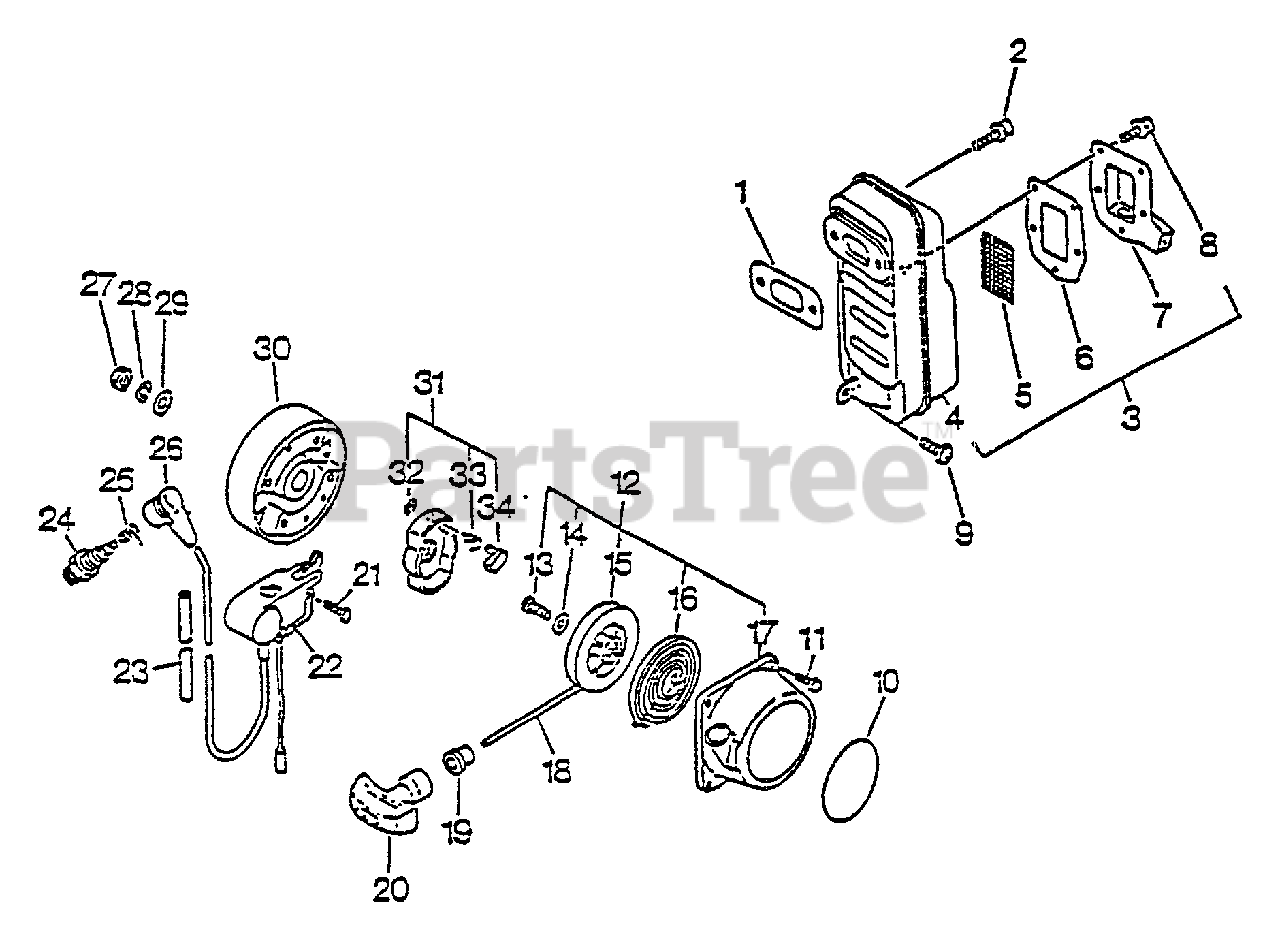

Ignition, Starter Parts Diagram

  • Title

1

Echo 14551006210

GASKET, EXHAUST
(Superseded to 14551006211)

$3.49

$

In Stock, Qty 6

0

2

Echo 90010506020

SCREW - 6X20

$1.49

$

In Stock, only 3 left!

0

3

Echo 14580008260

MUFFLER ASSY
(Superseded to 14580008262)

Note: INCLUDES ITEMS 4 - 8

$81.99

$

Usually ships in 2-4 days

0

4

Echo 14581008260

MUFFLER
(Superseded to 14581008261)

$84.99

$

Usually ships in 2-4 days

0

5

Echo 14586206720

SCREEN, SPARK ARRESTOR

$4.49

$

In Stock, only 4 left!

0

6

Echo 14586604261

GASKET, EXHAUST
(Superseded to V104002220)

$8.49

$

In Stock, only 2 left!

0

7

Echo 14587408260

ADAPTOR
(Superseded to 14587408261)

$14.99

$

Usually ships in 2-4 days

0

8

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

9

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

10

Echo 89011508060

LABEL - LESCO

$6.49

$

Usually ships in 2-4 days

0

11

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 10

0

12

Echo 17720008260

STARTER ASSY
(Superseded to P021009450)

Note: INCLUDES ITEMS 13 - 20

$55.99

$

In Stock, Qty 16

0

13

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

14

Echo 17721440630

WASHER
(Superseded to P022022280)

$0.99

$

In Stock, Qty 6

0

15

Echo 17721511120

REEL, ROPE

$19.99

$

In Stock, Qty 8

0

16

Echo 17722011120

SPRING, REWIND

$17.99

$

In Stock, only 4 left!

0

17

Echo 17723206210

CASE, STARTER

$50.99

$

In Stock, only 2 left!

0

18

Echo 17722611120

ROPE, STARTER - 4X1110

Note: RePower BULK OPTION: 99944440000

$5.99

$

In Stock, Qty 14

0

19

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

20

Echo 17722801110

GRIP, STARTER

$7.49

$

Usually ships in 2-4 days

0

21

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

22

Echo 15660108260

COIL, IGNITION
(Superseded to 15660109860)

$100.99

$

In Stock, Qty 16

0

23

Echo 15611106160

TUBE - VINYL

$1.49

$

In Stock, Qty 9

0

24

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

25

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

26

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

27

Echo 90050100010

NUT - 10

$0.99

$

In Stock, Qty 5

0

28

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 9

0

29

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

30

Echo 15680006210

FLYWHEEL
(Superseded to 15680006161)

$100.99

$

Usually ships in 2-4 days

0

31

Echo 17720206210

STARTER PAWL ASSY
(Superseded to A052000470)

Note: INCLUDES ITEMS 32 - 34

$5.99

$

In Stock, Qty 20+

0

32

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

33

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

34

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 6

0

Echo 99944400050

BULK ROPE
(Superseded to 99944450000)

$35.99

$

In Stock, Qty 20+

0
