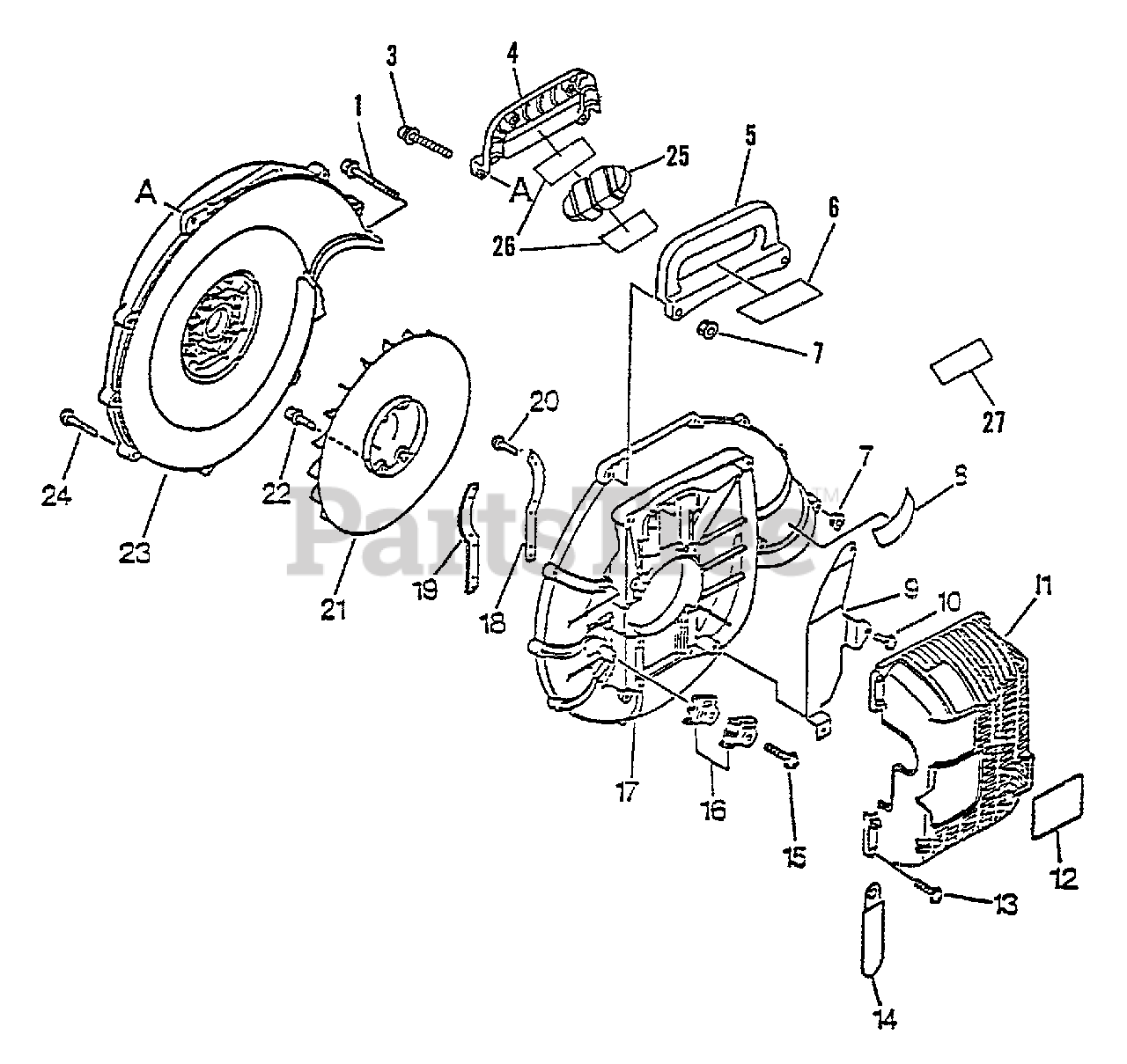

LBB-4200 - Lesco Backpack Blower Fan Housing, Handles, Engine Cover Parts Diagram

Backpack Blower

Fan Housing, Handles, Engine Cover Parts Diagram

  • Title
1

Echo 90010505060

SCREW - 5X60

$2.49

$

In Stock, Qty 17

0

3

Echo 90023805045

SCREW - 5X45

$0.99

$

In Stock, Qty 6

0

4

$34.99

$

Usually ships in 2-4 days

0

5

Echo 35101009360

HANDLE - REAR

$27.99

$

Usually ships in 2-4 days

0

6

Echo 89016009360

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

7

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

8

Echo 89011509360

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

9

Echo 10027008260

INSULATOR
(Superseded to 10027008261)

$13.99

$

In Stock, only 1 left!

0

10

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

11

Echo 10401208260

COVER, ENGINE

$35.99

$

Usually ships in 2-4 days

0

12

Echo 89011809360

LABEL - MODEL LBB-4200
(Superseded to Discontinued)

$

$

Not available

13

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

14

$1.49

$

In Stock, only 1 left!

0

15

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

16

Echo 17810108260

CABLE HOLDER KIT

$12.99

$

In Stock, only 1 left!

0

17

Echo 20010509360

COVER, FAN - OUTER
(Superseded to Discontinued)

$

$

Not available

18

Echo 10492508260

BRACKET, ENGINE
(Superseded to 10491308360)

$30.99

$

Usually ships in 2-4 days

0

19

Echo 10491308260

BRACKET, ENGINE
(Superseded to 10491308360)

$30.99

$

Usually ships in 2-4 days

0

20

Echo 90024603008

SCREW - 3X8

$

$

Not available

$98.99

$

Usually ships in 2-4 days

0

22

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

23

Echo 20011109360

COVER, FAN - INNER
(Superseded to 20011109361)

$

$

Not available

24

Echo 90025305030

SCREW - 5X30

$0.99

$

In Stock, only 1 left!

0

25

Echo 35133708260

WEIGHT, HANDLE

$10.99

$

Usually ships in 2-4 days

0

26

$4.99

$

Usually ships in 2-4 days

0

27

Echo 89017609360

LABEL - NOISE
(Superseded to Discontinued)

$

$

Not available
