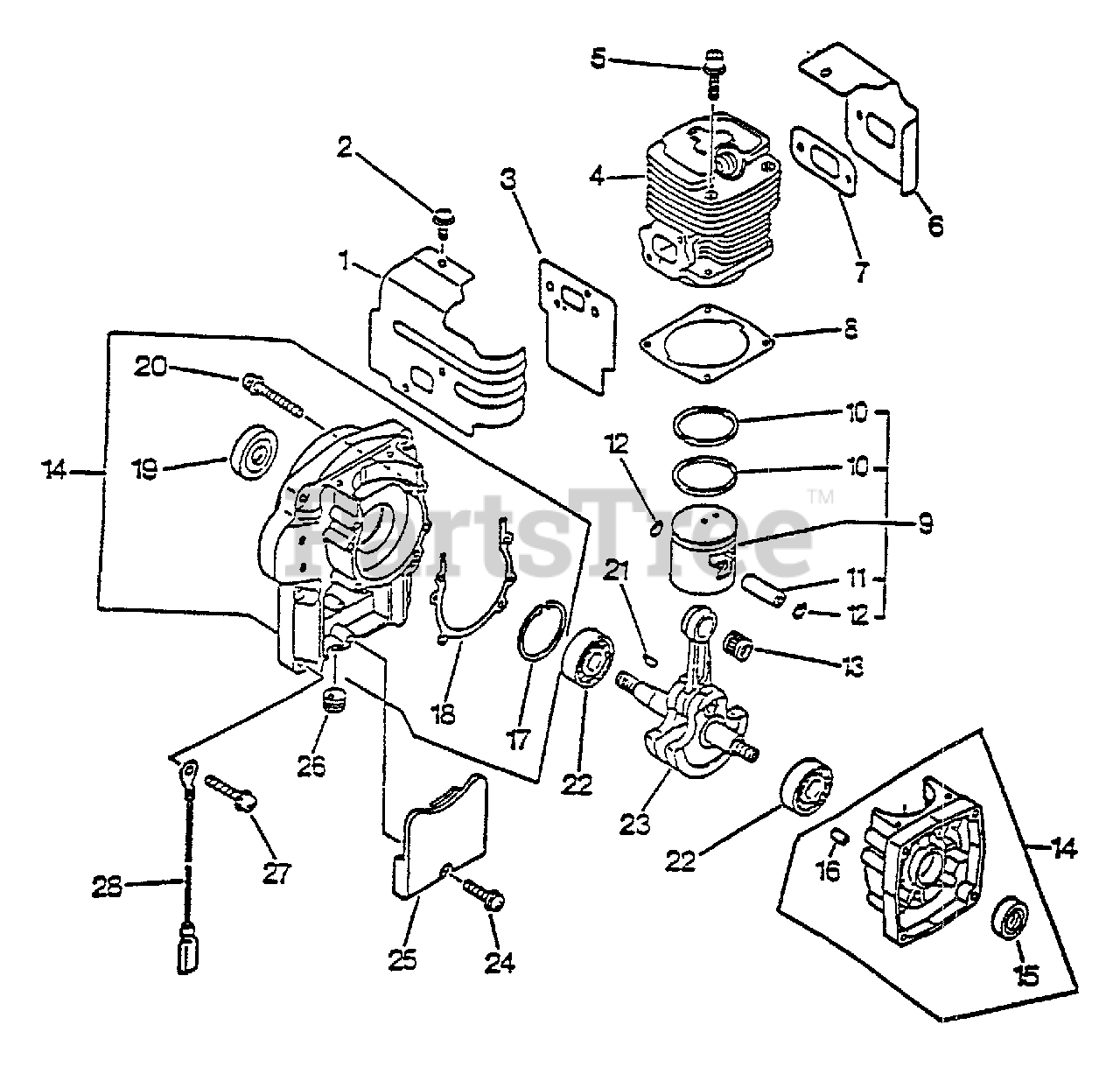

LBB-4200 - Lesco Backpack Blower Engine, Crankcase Parts Diagram

Backpack Blower

Engine, Crankcase Parts Diagram

  • Title
1

Echo 10151408260

COVER, CYLINDER - INTAKE

$19.99

$

Usually ships in 2-4 days

0

2

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

3

Echo 13001606210

GASKET, INTAKE
(Superseded to 13001606211)

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101108260

CYLINDER
(Superseded to 10101108261)

$191.99

$

Usually ships in 2-4 days

0

5

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

6

Echo 10157608260

COVER, CYLINDER

$12.99

$

Usually ships in 2-4 days

0

7

Echo 14551006210

GASKET, EXHAUST
(Superseded to 14551006211)

$3.49

$

In Stock, Qty 7

0

8

Echo 10101006210

GASKET, CYLINDER
(Superseded to 10101006211)

Note: Included In GASKET KIT

$1.99

$

In Stock, only 4 left!

0

9

Echo 10000003210

PISTON KIT
(Superseded to P021002540)

Note: Includes ITEMS 10-12

$70.99

$

Usually ships in 2-4 days

0

10

Echo 10001110530

RING, PISTON

$7.49

$

In Stock, Qty 16

0

11

Echo 10001300410

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

12

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

13

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 7

0

14

Echo 10020408260

CRANKCASE KIT
(Superseded to 10020408261)

Note: Includes ITEMS 15-20

$233.99

$

Usually ships in 2-4 days

0

15

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

16

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

17

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

18

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900008261

$

$

Not available

19

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 5

0

20

Echo 90023805040

SCREW - 5X40

$0.99

$

In Stock, only 1 left!

0

21

Echo 90032303014

KEY - 3X14

$1.49

$

In Stock, only 2 left!

0

22

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

23

Echo 10010006210

CRANKSHAFT ASSY

$146.99

$

In Stock, only 1 left!

0

24

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

25

Echo 15912908261

COVER, DUST

$5.99

$

Usually ships in 2-4 days

0

26

$0.99

$

In Stock, Qty 6

0

27

Echo 90023805032

SCREW - 5X32

$0.99

$

Usually ships in 2-4 days

0

28

Echo 16201008261

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

Echo SB1012

SHORT BLOCK -- SB1012

$369.99

$

Usually ships in 2-4 days

0

Echo 88900008461

GASKET KIT

$

$

Currently unavailable

Echo 10101006210

GASKET, CYLINDER
(Superseded to 10101006211)

$1.99

$

In Stock, only 4 left!

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001010322

GASKET, INTAKE
(Superseded to 13001010323)

$1.49

$

In Stock, Qty 20+

0

Echo 13001603730

GASKET, INTAKE
(Superseded to 13001603731)

$0.99

$

In Stock, Qty 20+

0

Echo 14551006210

GASKET, EXHAUST
(Superseded to 14551006211)

$3.49

$

In Stock, Qty 7

0

Echo 14586604261

GASKET, EXHAUST
(Superseded to V104002220)

$8.49

$

In Stock, only 2 left!

0
