LBB-4200 - Lesco Backpack Blower Backpack Frame, Harness Parts Diagram

Backpack Blower

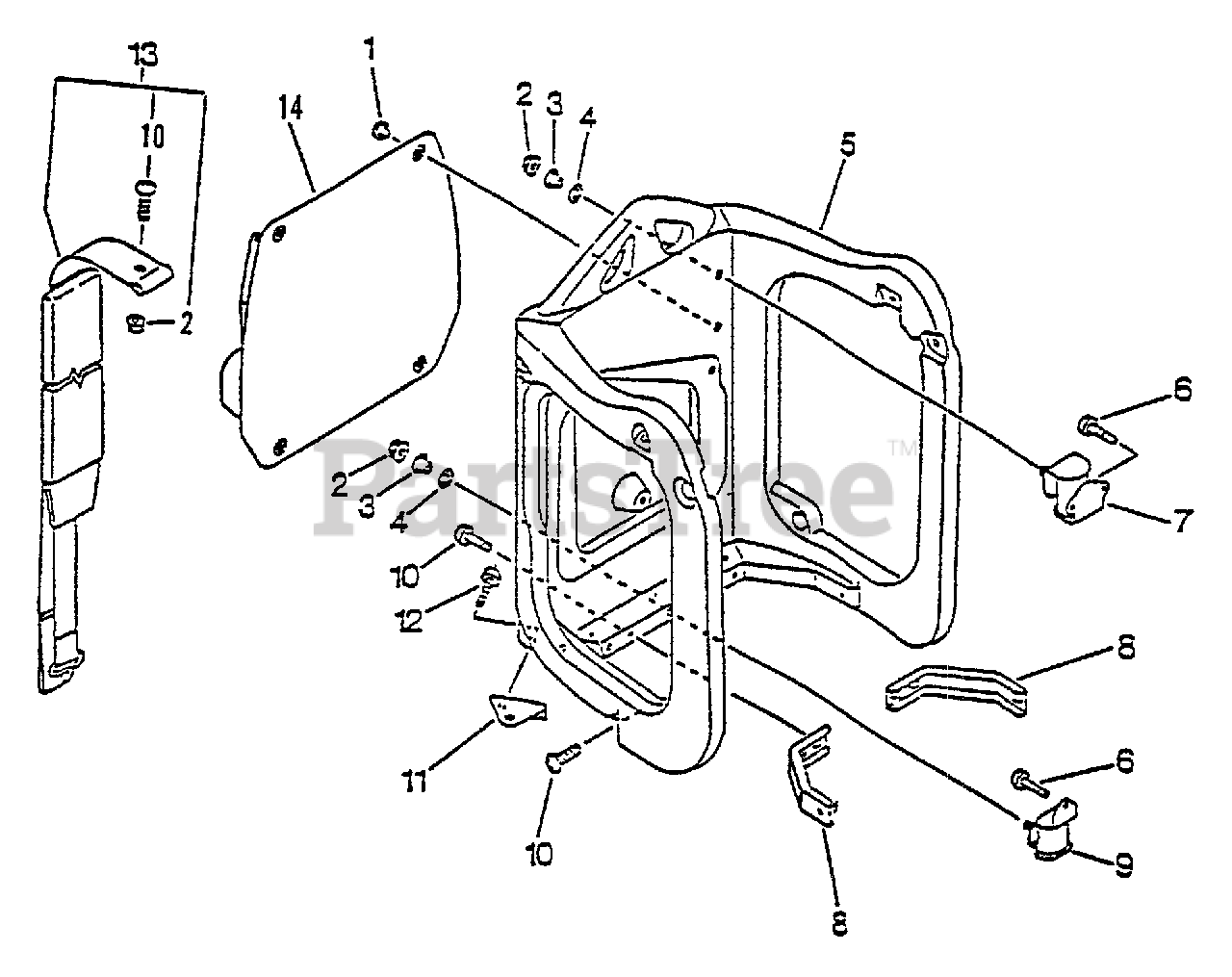

Backpack Frame, Harness Parts Diagram

  • Title

1

Echo 30033306160

CLIP

$0.99

$

In Stock, Qty 16

0

2

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

3

Echo 10491508260

SPACER

$5.99

$

In Stock, Qty 8

0

4

Echo 13192502310

WASHER - RUBBER

$1.49

$

In Stock, Qty 5

0

5

Echo 30001008260

FRAME, BACKPACK
(Superseded to 30001008360)

$64.99

$

Usually ships in 2-4 days

0

6

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

7

Echo 10090508261

CUSHION

$12.99

$

In Stock, Qty 20+

0

8

Echo 30001208260

CONNECTOR, FRAME

$5.49

$

Usually ships in 2-4 days

0

9

Echo 10090708260

CUSHION
(Superseded to P021000250)

$

$

Not available

10

Echo 90020905014

SCREW - 5X14
(Superseded to 9154005014)

$0.99

$

In Stock, Qty 20+

0

11

Echo 30061408260

BRACKET, HANGER
(Superseded to Discontinued)

$

$

Not available

12

Echo 90020905020

SCREW - 5X20
(Superseded to Discontinued)

$

$

Not available

13

Echo 30030008260

STRAP, BACKPACK
(Superseded to 30030008261)

Note: INCLUDES ITEMS 2 & 10

$12.99

$

In Stock, Qty 20+

0

14

Echo 30010508260

CUSHION, BACKPACK
(Superseded to 30010508261)

$18.99

$

In Stock, Qty 5

0
