LB (990076) - Simplicity Two-Wheeled Tractor Transmission Group (3568I03) Parts Diagram

Two-Wheeled Tractor

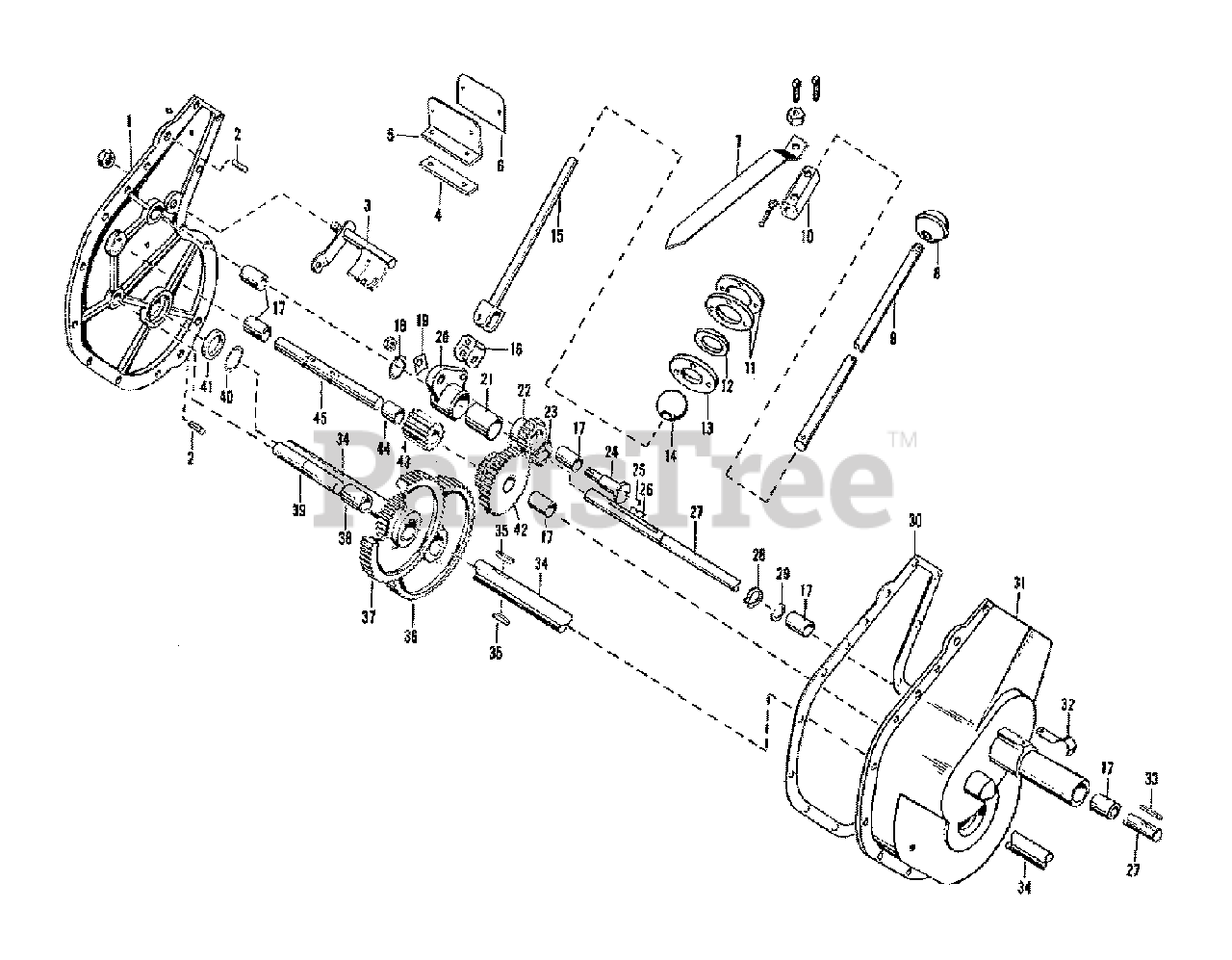

Transmission Group (3568I03) Parts Diagram

  • Title

1

Simplicity 151003

GEAR CASE COVER

$

$

Not available

2

Simplicity 8051053

DOWEL PIN

$

$

Not available

3

Simplicity 151002

SHIFT GUIDE ASSEMBLY

$

$

Not available

4

Simplicity 8051029

SHIFT INST. PLATE BRACKET HOLDER

$

$

Not available

5

Simplicity 151006

SHIFT INST. PLATE BRACKET HOLDER

$

$

Not available

6

Simplicity 151013

SERIAL AND SHIFT INSTRUCTIONS PLATE

$

$

Not available

7

Simplicity 8051028

SHIFTER POINTER

$

$

Not available

8

Simplicity 1676743SM

SHIFT LEVER BALL

$19.99

$

Usually ships in 2-12 days

0

9

Simplicity 8051013

GEAR SHIFT HANDLE Ext.

$

$

Not available

10

Simplicity 8061030

GEAR SHIFT HANDLE COUPLING

$

$

Not available

11

Simplicity 8051059

SHIFT BALL SPACER

$

$

Not available

12

Simplicity 8051060

SHIFT BALL WAHSER

$

$

Not available

13

Simplicity 8051047

GEAR SHIFT BALL RETAINER

$

$

Not available

14

Simplicity 8051044

GEAR SHIFT BALL

$

$

Not available

15

Simplicity 8051504

PITMAN CELVIS ASSEMBLY

$

$

Not available

16

Simplicity 8061026

PITMAN, Gear Shift

$

$

Not available

17

Simplicity 2156064SM

BEARING, Bronze

$22.99

$

Usually ships in 2-12 days

0

18

Simplicity 8051040

RING, Retaining

$

$

Not available

19

Simplicity 8061119

PLATE, Lock

$

$

Not available

20

Simplicity 8051502

ROCKER ARM ASSEMBLY

$

$

Not available

21

Simplicity 8051033

BEARING, Rocker Arm

$

$

Not available

22

Simplicity 8051004

PINION, Rocker Arm with Bearings

$

$

Not available

23

Simplicity 8051005

TRANSMISSION SLIDE GEAR

$

$

Not available

24

Simplicity 8061005

PIN, Rocker Arm Pinion

$

$

Not available

25

Simplicity 8051035

SLIDE KEY LOCK PLATE

$

$

Not available

26

Simplicity 8051034

TRANSMISSION SLIDE KEY

$

$

Not available

27

Simplicity 8052303

TRANSMISSION PULLEY SHAFT

$

$

Not available

28

Simplicity 8051039

RING, Retaining

$

$

Not available

29

Simplicity 2860207SM

WASHER, Spacer

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 8053001

GEAR CASE GASKET

$

$

Not available

31

Simplicity 151005

GEAR CASE

$

$

Not available

32

Simplicity 8051024

LATCH, Idler Lever

$

$

Not available

33

Simplicity 8051061

PULLEY KEY, Tranmsission

$

$

Not available

34

Simplicity 8062004

AXLE

$

$

Not available

35

Simplicity 8021068

KEY, Axle

$

$

Not available

36

Simplicity 8262002

DRIVE GEAR

$

$

Not available

37

Simplicity 8021503

CLUSTER GEAR ASSEMBLY

$

$

Not available

38

Simplicity 8021032

BUSHING, Intermediate, 5/8 x 3/4 x -7/16"

$

$

Not available

39

Simplicity 8051012

SPINDLE, Intermediate

$

$

Not available

40

Simplicity 8261032

RING, Retaining

$

$

Not available

41

Simplicity 8051031

WASHER, Retaining

$

$

Not available

42

Simplicity 8051501

CLUSTER GEAR ASSEMBLY

$

$

Not available

43

Simplicity 8051008

GEAR, High

$

$

Not available

44

Simplicity 8051018

SPACER, Transmission Pinion Shaft

$

$

Not available

45

Simplicity 8051010

TRANSMISSION PINION SHAFT

$

$

Not available
