LB (990076) - Simplicity Two-Wheeled Tractor Tractor Group - Parts List (3568I02) Parts Diagram

Two-Wheeled Tractor

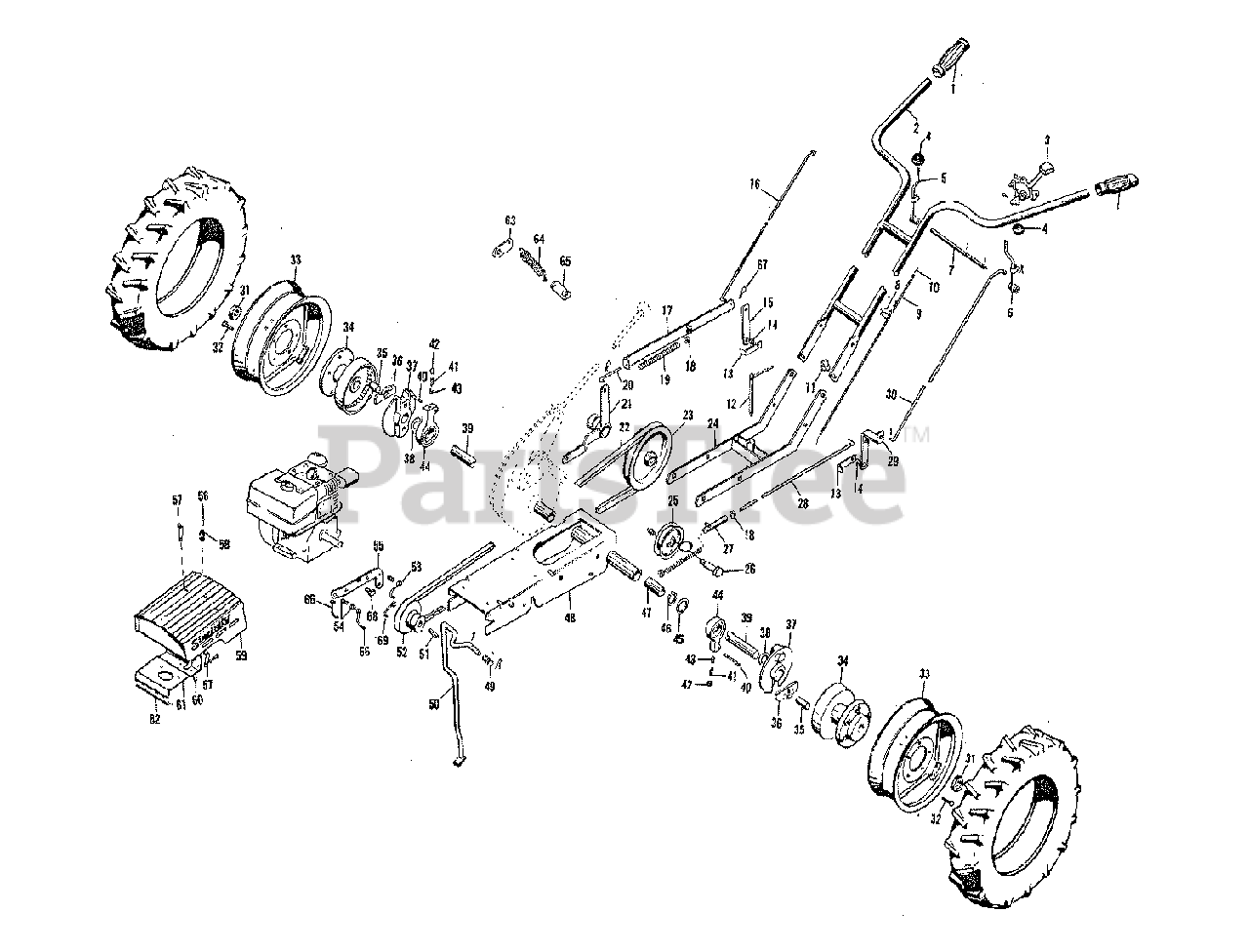

Tractor Group - Parts List (3568I02) Parts Diagram

  • Title

1

Simplicity 2153043

HANDLE GRIP

$

$

Not available

2

Simplicity 8063502

HANDLE ASSEMBLY

$

$

Not available

3

Simplicity 8061087

THROTTLE CONTROL LEVER ASSEMBLY

$

$

Not available

4

Simplicity 1729255SM

CLUTCH LEVER BALL

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 8021508

R.H. CLUTCH LEVER ASSEMBLY

$

$

Not available

6

Simplicity 8051508

L.H. CLUTCH LEVER ASSEMBLY

$

$

Not available

7

Simplicity 8021118

LEVER SHAFT

$

$

Not available

8

Simplicity 80611-08

CABLE CLIP

$

$

Not available

9

Simplicity 151016

THROTTLE WIRE HOUSING

$

$

Not available

10

Simplicity 151017

THROTTLE CONTROL WIRE

$

$

Not available

11

Simplicity 8061117

THROTTLE WIRE HOUSING CLAMP

$

$

Not available

12

Simplicity 8061502

HITCH PIN ASSEMBLY

$

$

Not available

13

Simplicity 8021121

LEVER STOP

$

$

Not available

14

Simplicity 1663752SM

BUSHING

$5.99

$

In Stock, only 2 left!

0

15

Simplicity 8051030

LOWER CLUTCH PIVOT LEVER

$

$

Not available

16

Simplicity 8051041

UPPER IDLER CLUTCH ROD

$

$

Not available

17

Simplicity 1729265SM

IDLER CLUTCH ROD GUIDE ASSEMBLY

$41.99

$

Usually ships in 2-12 days

0

18

Simplicity 1729276SM

IDLER ROD SET COLLAR

$

$

Not available

19

Simplicity 1729277SM

SPRING IDLER ROD

$6.99

$

In Stock, only 1 left!

0

20

Simplicity 8051043

LOWER IDLER CLUTCH ROD

$

$

Not available

21

Simplicity 151010

IDLER LEVER ASSEMBLY

$

$

Not available

22

Simplicity 2106016

46" "V" BELT

$

$

Not available

23

Simplicity 151009

TRANSMISSION PULLEY

$

$

Not available

24

Simplicity 8023509

FRAME ASSEMBLY

$

$

Not available

25

Simplicity 2156124SM

IDLER PULLEY ASSEMBLY

$

$

Not available

26

Simplicity 8151059

IDLER PULLEY PIN

$

$

Not available

27

Simplicity 8161518

ROD SOCKET ASSEMBLY

$

$

Not available

28

Simplicity 151015

LOWER IDLER ROD

$

$

Not available

29

Simplicity 8021091

LOWER CLUTCH LEVER

$

$

Not available

30

Simplicity 8021122

UPPER IDLER ROD

$

$

Not available

31

Simplicity 8261012

SET COLLAR

$

$

Not available

32

Simplicity 1729280SM

HUB BOLTS

$6.49

$

In Stock, only 2 left!

0

33

Simplicity 8262023

DRIVE WHEELS (6-12 Tires)

$

$

Not available

34

Simplicity 8052001

WHEEL HUB

$

$

Not available

35

Simplicity 8061031

RATCHET PAWL PIN

$

$

Not available

36

Simplicity 152009

RATCHET PAWL ASSEMBLY

$

$

Not available

37

Simplicity 8051002

RATCHET CAGE

$

$

Not available

38

Simplicity 2860208SM

WASHER

$4.99

$

Usually ships in 2-12 days

0

39

Simplicity 8052004

AXLE

$

$

Not available

40

Simplicity 8051051

RATCHET PAWL TRIP FINGER

$

$

Not available

41

Simplicity 8051052

TRIP FINGER HOLDER SPRING

$

$

Not available

42

7/16-14 x 1/2" HEADLESS

$

$

Not available

43

Simplicity 8051062

TRIP FINGER HOLDER SPRING

$

$

Not available

44

Simplicity 8051055

HOLDER WITH BEARING ASSEMBLED

$

$

Not available

45

Simplicity 8051021

AXLE HOUSING SPACER

$

$

Not available

46

Simplicity 8051041

RETAINING RING

$

$

Not available

47

Simplicity 8051042

AXLE BEARING

$

$

Not available

48

Simplicity 151004

BASE ASSEMBLY

$

$

Not available

49

Simplicity 2152006SM

STAND SPRING

$8.49

$

Usually ships in 2-12 days

0

50

Simplicity 152011

STAND ASSEMBLY

$

$

Not available

51

Simplicity 1729279SM

KEY FOR ENGINE PULLEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

52

Simplicity 151012

ENGINE PULLEY KEY

$

$

Not available

53

Simplicity 8021014

BELT STOP

$

$

Not available

54

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

55

Simplicity 153025

BELT STOP HOLDER

$

$

Not available

56

Simplicity 153006

PIN - Hood

$

$

Not available

57

Simplicity 153008

LATCH

$

$

Not available

58

Simplicity 2153010SM

SPRING - Hood

$8.99

$

Usually ships in 2-12 days

0

59

Simplicity 153018

HOOD ASSEMBLY

$

$

Not available

60

1/4-20 LOCKNUT

$

$

Not available

61

Simplicity 153007

BRACKET ASSEMBLY - Hood

$

$

Not available

62

Simplicity 153005

PIN- Hinge

$

$

Not available

63

Simplicity 8151036

HOLDER, Spring Upper

$

$

Not available

64

Simplicity 8111047

SPRING

$

$

Not available

65

Simplicity 8151035

HOLDER, Spring Lower

$

$

Not available

66

Simplicity 8181035

BELT STOP

$

$

Not available

67

Simplicity 1918196SM

SPRING CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

68

Simplicity 153026

HOLDER SCREW

$

$

Not available

69

Simplicity 8021073

BELT STOP

$

$

Not available
