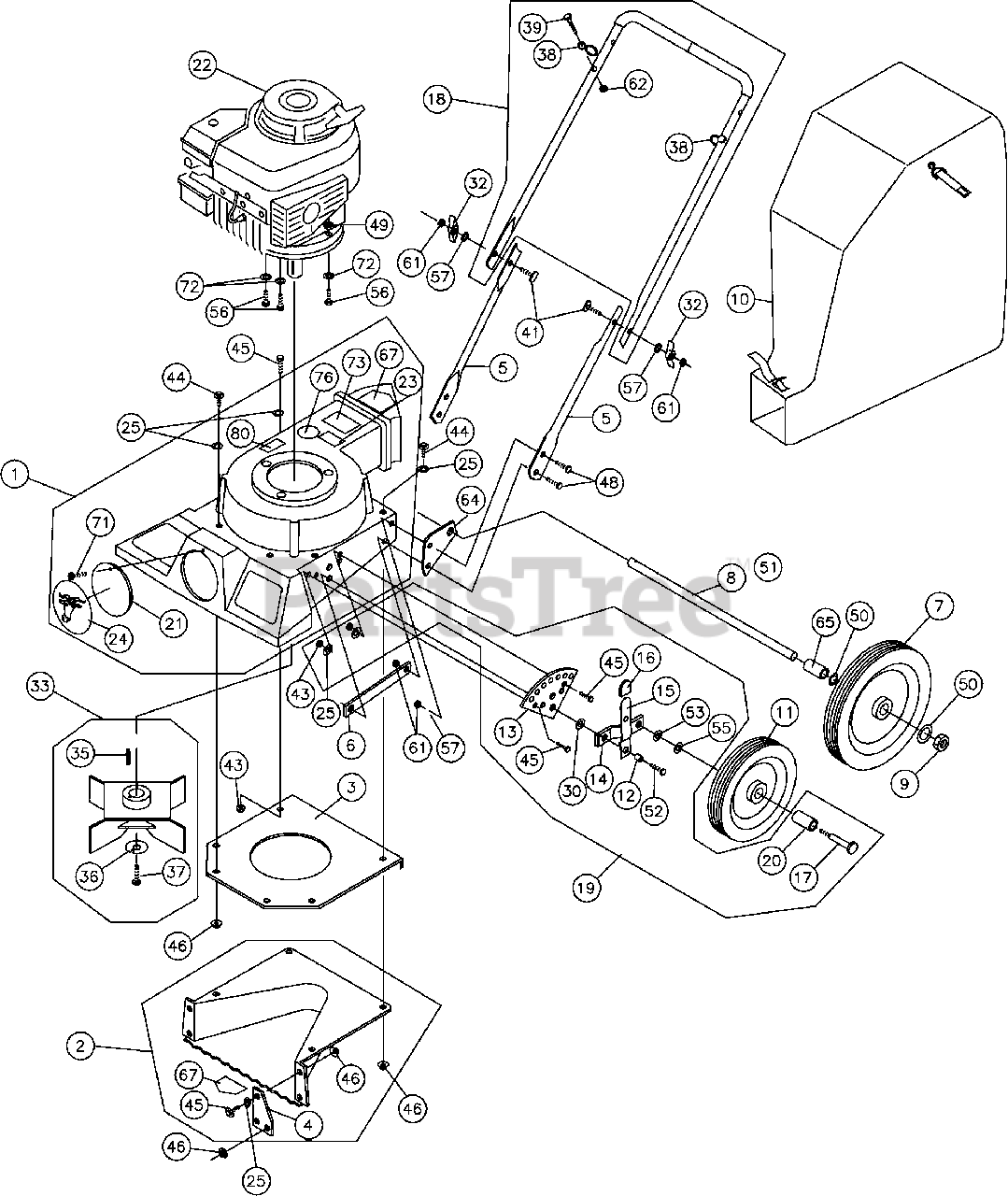

LB 612 - Billy Goat Lawn & Leaf Vacuum Parts Assembly Parts Diagram

Lawn & Leaf Vacuum

Parts Assembly Parts Diagram

  • Title
1

Billy Goat 900590-04

HOUSING ASSY

$

$

Not available

2

Billy Goat 900607-04

WRAPPER-INTAKE ASSY
(Superseded to 900596-04)

$76.99

$

Usually ships in 2-11 days

0

3

Billy Goat 900418

PLATE MIDDLE INLET

$41.99

$

Usually ships in 2-11 days

0

4

Billy Goat 900413

PLATE WRAPPER

$5.49

$

Usually ships in 2-11 days

0

5

Billy Goat 900483

HANDLE LOWER

$23.99

$

Usually ships in 2-11 days

0

6

Billy Goat 900484

PLATE BACKUP

$11.99

$

Usually ships in 2-11 days

0

7

Billy Goat 900817

WHEEL REAR 10"

$68.99

$

Usually ships in 2-11 days

0

8

Billy Goat 900818

AXLE SHAFT

$

$

Not available

9

Billy Goat 8161044

NUT LOCK 1/2 -13 THIN HT.

$0.99

$

In Stock, only 3 left!

0

10

Billy Goat 900719

BAG DEBRIS

$255.99

$

Usually ships in 2-11 days

0

11

Billy Goat 900816

WHEEL FRONT 8"

$36.99

$

Usually ships in 2-11 days

0

12

$0.99

$

Usually ships in 2-11 days

0

13

Billy Goat 900414

PLATE- HT ADJ.

$22.99

$

Usually ships in 2-11 days

0

14

Billy Goat 900416

AXLE ARM- HT. ADJ.

$30.99

$

Usually ships in 2-11 days

0

15

Billy Goat 900417

ARM ASSY - HT ADJ.

$33.99

$

In Stock, only 1 left!

0

16

Billy Goat 900459

TIP -HT. ADJ.

$3.99

$

Usually ships in 2-11 days

0

17

Billy Goat 8041056

SCREWCAP 3/8-16 X 2 1/2"

$1.49

$

Usually ships in 2-11 days

0

18

Billy Goat 900777

HANDLE - UPPER ASSY

$

$

Not available

19

Billy Goat 900820

HT. ADJ. ASSY

$99.99

$

Usually ships in 2-11 days

0

20

Billy Goat 900819

SPACER FRONT WHEEL

$2.99

$

Usually ships in 2-11 days

0

$7.49

$

Usually ships in 2-11 days

0

22

Billy Goat 890622

ENGINE 6.0 H.P. BRIGGS

$

$

Not available

23

Billy Goat 890254

LABEL EAR/EYE BREATHING
(Superseded to 100346)

$3.99

$

Usually ships in 2-11 days

0

24

Billy Goat 441152

LABEL LOGO SMALL FRAME

$4.99

$

Usually ships in 2-11 days

0

25

Billy Goat 8172007

WASHER 1/4 SAE

$0.99

$

In Stock, Qty 8

0

26

Billy Goat 8041029

SCREWCAP 5/16-16 X 1 1/4

$0.99

$

Usually ships in 2-11 days

0

30

Billy Goat 900230

WASHER 1/2" FLAT KD WHEEL MTG

$0.99

$

In Stock, only 1 left!

0

32

Billy Goat 900456

KNOB-FOLDING HANDLE

$5.99

$

Usually ships in 2-11 days

0

33

Billy Goat 900421

IMPELLER ASSY
(Superseded to 900422)

$224.99

$

Usually ships in 2-11 days

0

35

Billy Goat 9201080

KEY-3/16 SQ. X 1 1/4"

$

$

Not available

36

Billy Goat 8177012

WASHER LOCK 3/8 S/T MED

$0.99

$

In Stock, Qty 9

0

37

Billy Goat 900154

SCREWCAP 3/8-24 X 1" GR. 8 TORQUE 33-38 FT. LBS (45-52.N.m.)

$2.49

$

Usually ships in 2-11 days

0

38

$2.99

$

Usually ships in 2-11 days

0

39

Billy Goat 8041007

SCREW CAP 1/4-20 X 1 1/4"

$0.99

$

In Stock, only 1 left!

0

41

Billy Goat 900466

BOLT CARRIAGE 5/16-18x2 1/4"

$4.99

$

Usually ships in 2-11 days

0

43

Billy Goat 8160001

NUT LOCK 1/4 - 20 HEX ZP

$0.99

$

In Stock, Qty 8

0

44

Billy Goat 8041006

SCREWCAP 1/4 -20 X 1"

$0.99

$

Usually ships in 2-11 days

0

45

Billy Goat 8041004

SCREWCAP 1/4-20 X 3/4"

$0.99

$

Usually ships in 2-11 days

0

46

Billy Goat 900453

NUT LOCK WASHER 1/4-20
(Superseded to 900483)

$23.99

$

Usually ships in 2-11 days

0

48

Billy Goat 8041029

SCREWCAP 5/16-18 X 1 1/4"

$0.99

$

Usually ships in 2-11 days

0

49

Billy Goat 8160002

NUT LOCK 5/16-18 HEX ZP

$0.99

$

In Stock, only 4 left!

0

50

Billy Goat 8172011

WASHER FLAT 1/2 SAE (17/32 X 1 1/16 X 3/32)

$0.99

$

In Stock, Qty 5

0

52

Billy Goat 8041052

SCREWCAP 3/8-16 X 1 1/2"

$1.49

$

Usually ships in 2-11 days

0

53

Billy Goat 8177012

WASHER LOCK 3/8 S/T MED

$0.99

$

In Stock, Qty 9

0

55

Billy Goat 8172009

WASHER FLAT 3/8 SAE (13/32 X 13/16/ X 1/16)

$1.49

$

In Stock, Qty 5

0

56

Billy Goat 8041030

SCREW CAP 5/16-18 X 1 1/4

$0.99

$

Usually ships in 2-11 days

0

57

Billy Goat 8172008

WASHER 5/16 SAE (11/32 X 11/16 X 1/16)

$0.99

$

In Stock, Qty 9

0

61

Billy Goat 8160002

NUT LOCK 5/16-18

$0.99

$

In Stock, only 4 left!

0

62

Billy Goat 8160001

NUT LOCK 1/4-20

$0.99

$

In Stock, Qty 8

0

64

Billy Goat 900487

BRACKET AXLE

$9.99

$

Usually ships in 2-11 days

0

65

Billy Goat 900231

SPACER 1/2 X 5/8

$7.99

$

Usually ships in 2-11 days

0

67

Billy Goat 400424

LABEL DANGER KEEP HANDS AND FEET AWAY

$3.99

$

In Stock, only 1 left!

0

71

Billy Goat 8123086

SCREW SELF-TAPPING 10-24 X 1/2

$1.49

$

Usually ships in 2-11 days

0

72

Billy Goat 8171003

WASHER 5/16 FLAT CUT

$0.99

$

In Stock, Qty 10

0

73

Billy Goat 810736

LABEL FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

76

Billy Goat 430363

LABEL READ MANUAL

$6.49

$

Usually ships in 2-11 days

0

80

Billy Goat 520116

LABEL MADE IN U.S.A.

$

$

Not available
