LB 256 SP (970488502) - Husqvarna Walk-Behind Mower CHASSIS Parts Diagram

Walk-Behind Mower

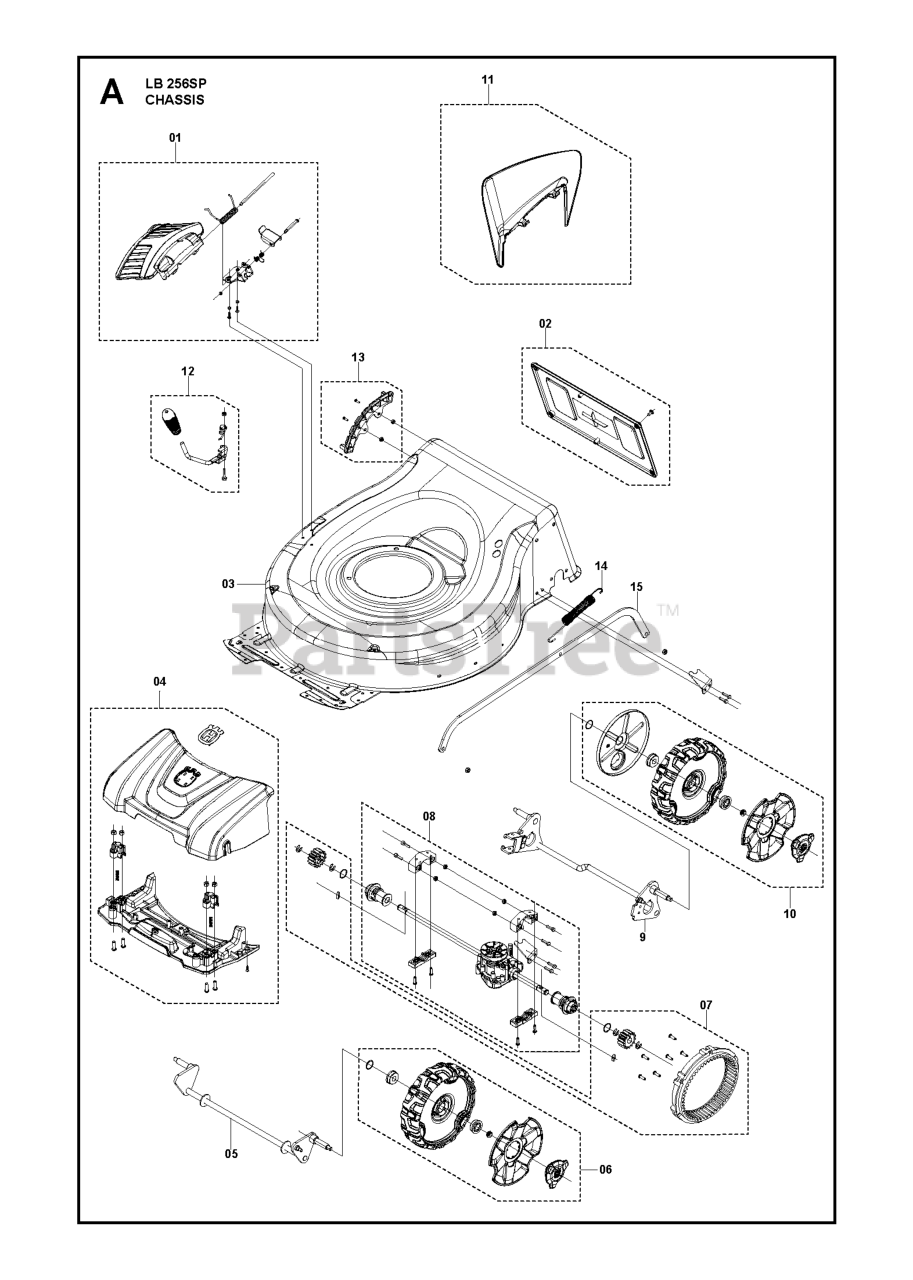

CHASSIS Parts Diagram

  • Title

10

Husqvarna 598684103

NEEDS DESCRIPTION

Note: REAR WHEEL

$

$

Currently unavailable

5

Husqvarna 598818801

NEEDS DESCRIPTION

Note: WHEEL AXLE

$

$

Currently unavailable

13

Husqvarna 599139001

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT PLATE

$

$

Currently unavailable

2

Husqvarna 598721801

NEEDS DESCRIPTION

Note: DECORATIVE COVER

$

$

Currently unavailable

8

Husqvarna 598684114

NEEDS DESCRIPTION

Note: REAR TRANSMISSION

$

$

Currently unavailable

11

Husqvarna 598961401

NEEDS DESCRIPTION

Note: SIDE PROTECTION COVER

$

$

Currently unavailable

9

Husqvarna 598684110

NEEDS DESCRIPTION

Note: WHEEL AXLE

$

$

Currently unavailable

14

Husqvarna 599138901

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT SPRING

$

$

Currently unavailable

3

Husqvarna 598961301

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 598684123

NEEDS DESCRIPTION

Note: FRONT COVER

$

$

Currently unavailable

1

Husqvarna 598684112

NEEDS DESCRIPTION

Note: SIDE DISCHARGE PLATE

$

$

Currently unavailable

6

Husqvarna 598512901

Wheels

Note: FRONT WHEEL

$34.99

$

Usually ships in 3-10 days

0

12

Husqvarna 599139101

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT HANDLE

$

$

Currently unavailable

15

Husqvarna 599139201

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT ROD

$

$

Currently unavailable

7

Husqvarna 598684117

NEEDS DESCRIPTION

Note: WHEEL DRIVE

$

$

Currently unavailable
