Lawn Mower - BCS America 22" Rotary Lawn Mower Attachment (1994 & Before) 22" Mower Gear Box (SN: 72900 - 131180) Parts Diagram

22" Rotary Lawn Mower Attachment

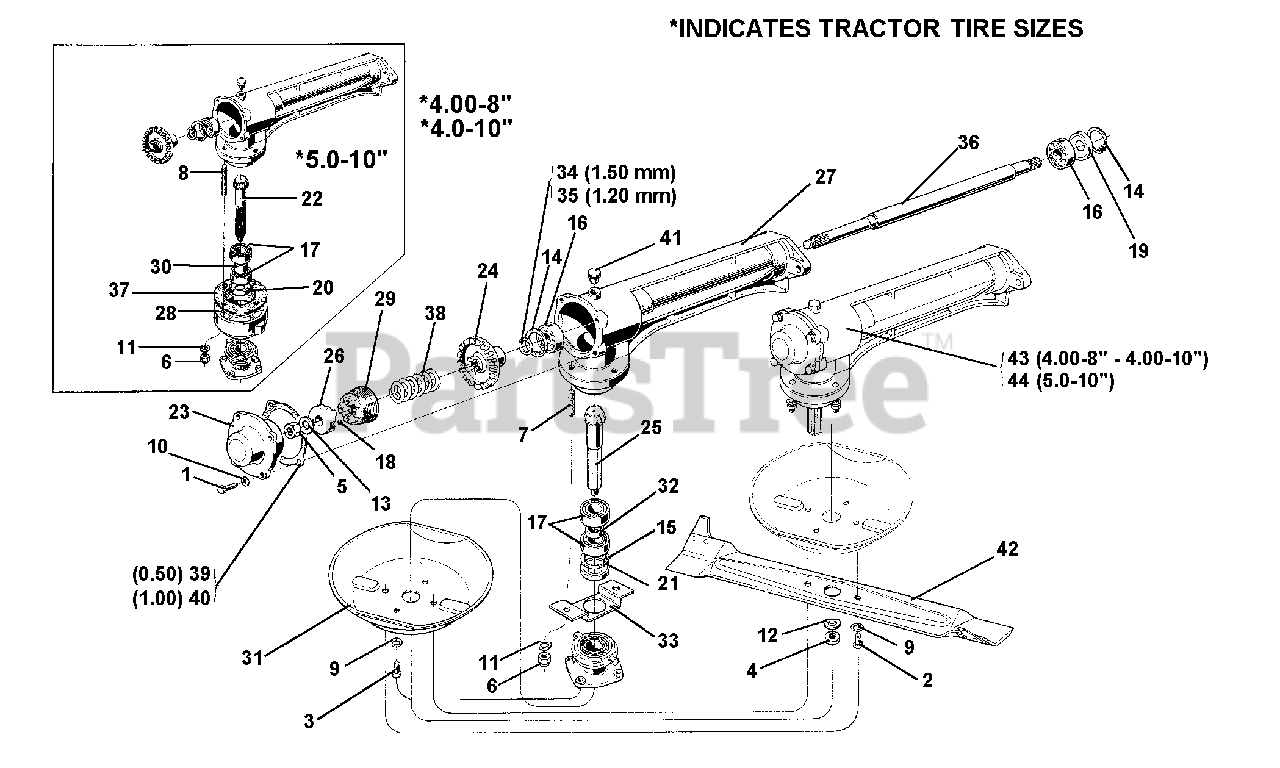

22" Mower Gear Box (SN: 72900 - 131180) Parts Diagram

  • Title

1

BCS America 311.12093

SCREW M6 X 20

$0.99

$

In Stock, only 2 left!

0

2

BCS America 311.12148

SCREW M8 X 14

$1.49

$

In Stock, Qty 10

0

3

BCS America 311.12149

SCREW M8 X 12

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.3112

NUT, LOW M12

$

$

Currently unavailable

5

BCS America 312.31141

NUT M14 X 1.5

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 312.41101

NUT, SELF LOCKING M10 LOW

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 313.12101

STUD M10 X 37 X 19 X 15 8G

$7.99

$

Usually ships in 5-8 days

0

8

BCS America 313.12106

STUD M10 X 68 X 34 X 15

$13.99

$

Usually ships in 5-8 days

0

9

BCS America 314.21083

SUPER WASHER 8 DIN 6796

$1.49

$

In Stock, Qty 7

0

10

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

11

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, Qty 5

0

12

BCS America 31423130

WASHER, LOCK 13

$1.49

$

In Stock, only 3 left!

0

13

BCS America 31423150

WASHER, LOCK 15

$1.99

$

Usually ships in 5-8 days

0

14

BCS America 351.11047

CIRCLIP, INTERN. D 47

$1.99

$

In Stock, only 1 left!

0

15

BCS America 351.11052

CIRCLIP, INTERN. D 52

$1.99

$

In Stock, Qty 5

0

16

BCS America 371.11201

BEARING 20 X 47 X 14 6204

$14.99

$

In Stock, only 1 left!

0

17

BCS America 371.11255

BEARING 25 X 52 X 15 6205

$15.99

$

In Stock, only 1 left!

0

18

BCS America 379.11032

BALL 5/16 RIV RB 7.938

$0.99

$

Usually ships in 5-8 days

0

19

BCS America 382.12004

OIL SEAL 20 X 47 X 7

$7.99

$

In Stock, only 1 left!

0

20

BCS America 38212500

OIL SEAL 25 X 40 X 7

$10.99

$

Usually ships in 5-8 days

0

21

BCS America 382.12502

OIL SEAL 25 X 52 X 7

$9.99

$

Usually ships in 5-8 days

0

22

BCS America 524.49482

BEVEL PINION

$334.99

$

Usually ships in 5-8 days

0

23

BCS America 524.49487

BRAKE BELL

$272.99

$

Usually ships in 5-8 days

0

24

BCS America 524.49491

CONICAL GEAR

$396.99

$

Usually ships in 5-8 days

0

25

BCS America 524.51305

BEVEL GEAR

$

$

Currently unavailable

26

BCS America 52451310

BRAKE COUPLING

$171.99

$

Usually ships in 5-8 days

0

27

BCS America 532.49475

LAWN MOWER CASING 715

$

$

Currently unavailable

28

BCS America 532.4948

SPACER FLANGE

$

$

Currently unavailable

29

BCS America 541.49492

BRAKE CONE

$

$

Currently unavailable

30

BCS America 561.49483

LONG SPACER

$

$

Currently unavailable

31

BCS America 561.50753

PROTECTION DISC

$66.99

$

Usually ships in 5-8 days

0

32

BCS America 561.51306

SPACER

$26.99

$

Usually ships in 5-8 days

0

33

BCS America 561.51334

PROTECTION

$21.99

$

Usually ships in 5-8 days

0

34

BCS America 563.51303

STOP RING

$5.49

$

Usually ships in 5-8 days

0

35

BCS America 563.51314

STOP RING

$3.99

$

Usually ships in 5-8 days

0

36

BCS America 564.49477

PROPELLER SHAFT

$449.99

$

Usually ships in 5-8 days

0

37

BCS America 580.49481

GASKET

$3.49

$

Usually ships in 5-8 days

0

38

BCS America 58049490

BRAKE SPRING

$65.99

$

Usually ships in 5-8 days

0

39

BCS America 58051320

GASKET

$2.49

$

Usually ships in 5-8 days

0

40

BCS America 580.51321

GASKET

$3.99

$

Usually ships in 5-8 days

0

41

BCS America 590.51045

BREATHER CAP 1/4 GAS

$18.99

$

Usually ships in 5-8 days

0

42

BCS America 590.51325

LAWN MOWER BLADE

$97.99

$

Usually ships in 5-8 days

0

43

BCS America 592.49494

GEAR ASSEMBLY

$

$

Currently unavailable

44

BCS America 592.49495

GEAR ASSEMBLY

$

$

Currently unavailable
