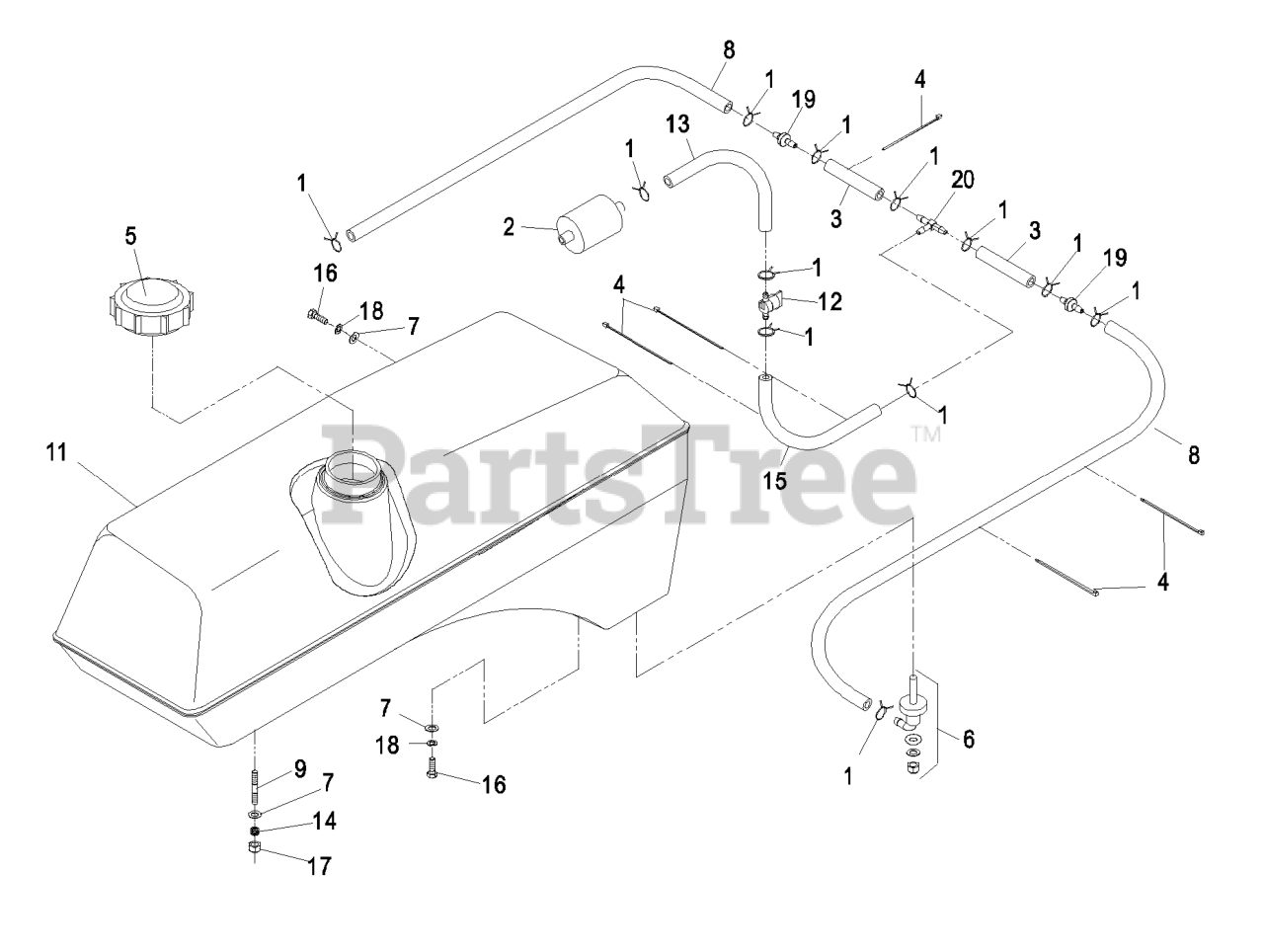

LAS28KA724 - Exmark 72" Lazer Z AS Zero-Turn Mower, 28hp Kawasaki (SN: 720000 - 789999) (2008) Fuel Group Parts Diagram

72" Lazer Z AS Zero-Turn Mower, 28hp Kawasaki

Fuel Group Parts Diagram

  • Title
1

$1.49

$

In Stock, Qty 8

0

2

Kohler Part No. 2405010 Fuel Filter

Note: Refer to Engine Owner's Manual (Fuel Filter Must be 15 Micron or smaller).

$

$

Not available

Kawasaki Part No. 49019-7001 Fuel Filter

$

$

Not available

3

Exmark 103-0304

Hose, Fuel Line 2 1/2"

$

$

Currently unavailable

4

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

Note: (Large)

$0.99

$

In Stock, Qty 8

0

5

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, only 2 left!

0

6

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-lock, Nut type (Part No. 1-840022), .5ml tube on fuel fitting threads.

$35.99

$

In Stock, only 3 left!

0

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

7

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Exmark 108-4582

HOSE-FUEL

$11.99

$

In Stock, only 1 left!

0

9

Exmark 1-633023

STUD

Note: Use Pro-lock, Retaining Type (Part No. 1-840023), .5cc tube on stud threads going into the tank.

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 103-2132

ASM, FUEL TANK LH LZ AC&L

Note: (LH) Not illustrated. Includes tank, cap, fitting & studs.

$

$

Not available

11

Exmark 103-2133

DISCONTINUED

Note: (RH) Includes tank, cap, fitting & studs.

$

$

Not available

12

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 9

0

13

Exmark 109-0660

HOSE-FUEL

Note: (Kohler)

$3.99

$

In Stock, only 3 left!

0

Exmark 109-0293

HOSE-FUEL

Note: (Kawasaki)

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 109-0281

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

16

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

18

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

19

Exmark 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, only 2 left!

0

20

Exmark 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0
