LAS28KA724 - Exmark 72" Lazer Z AS Zero-Turn Mower, 28hp Kawasaki (SN: 670000 - 719999) (2007) 72" Deck Group Parts Diagram

72" Lazer Z AS Zero-Turn Mower, 28hp Kawasaki

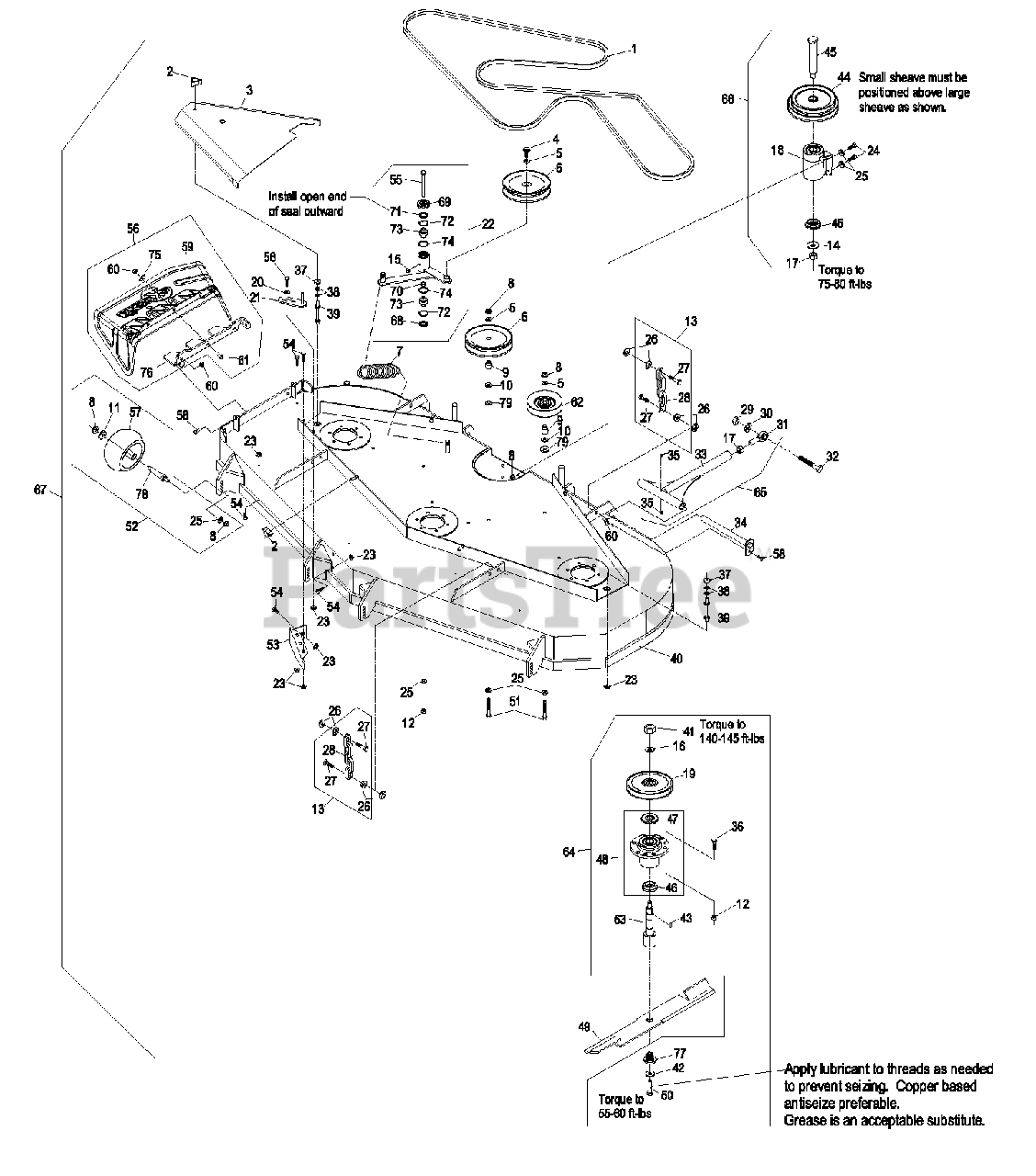

72" Deck Group Parts Diagram

  • Title

1

Exmark 1-643052

BELT-V
(Superseded to 1-643052-SL)

$212.99

$

In Stock, Qty 10

0

2

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-643076-01

SHIELD,BELT RH

$125.99

$

In Stock, only 1 left!

0

3

Exmark 1-643075-01

SHIELD,BELT LH

$134.99

$

In Stock, only 3 left!

0

4

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

5

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 14

0

7

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 10

0

8

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

10

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

11

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

12

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 19

0

13

Exmark 103-9792

DECK CHAIN ASM

$13.99

$

In Stock, only 1 left!

0

14

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

15

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

16

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 16

0

17

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

18

Exmark 103-9746

KIT, JACKSHAFT ASSY

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$263.99

$

In Stock, only 1 left!

0

19

Exmark 103-2795

SHEAVE,BLADE DRIVE 7.5

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$99.99

$

Usually ships in 3-6 days

0

20

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

21

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

22

Exmark 103-5693

KIT,DECK IDLER LZ/XP

Note: Kit includes items #12 and #25.

$136.99

$

In Stock, only 3 left!

0

23

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

26

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0

27

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

28

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

29

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

30

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

32

Exmark 327-11

SCREW-HH

$11.99

$

In Stock, Qty 12

0

33

Exmark 109-1182

WLD,DECK STRUT-72"

$249.99

$

Usually ships in 3-6 days

0

34

Exmark 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

35

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

36

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

38

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

40

Exmark 109-7477

103-1591
(Superseded to 103-1591)

$5605.99

$

Usually ships in 3-6 days

0

41

Exmark 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

0

42

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

43

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 12

0

44

Exmark 103-3046

SHEAVE, JACKSHAFT DOUBLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$111.99

$

In Stock, only 3 left!

0

45

Exmark 1-643393

JACKSHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$33.99

$

In Stock, only 1 left!

0

46

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

47

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$5.49

$

In Stock, only 2 left!

0

48

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$254.99

$

In Stock, only 4 left!

0

49

Exmark 103-6404

103-6404-S
(Superseded to 103-6404-S)

$43.99

$

In Stock, Qty 20+

0

49

Exmark 103-6394

103-6394-S
(Superseded to 103-6394-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK724.

$38.99

$

In Stock, Qty 20+

0

49

Exmark 103-6389

103-6389-S
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 10

0

49

Exmark 103-6384

103-6384-S
(Superseded to 103-6384-S)

$43.99

$

In Stock, Qty 20+

0

49

Exmark 103-6399

116-5171-S
(Superseded to 116-5171-S)

$43.99

$

In Stock, Qty 20+

0

50

Exmark 3213-5

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

51

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 16

0

52

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

53

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

54

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

55

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

56

Exmark 109-2148

116-1745
(Superseded to 116-1745)

$215.99

$

In Stock, only 1 left!

0

57

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

58

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

59

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

60

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

61

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

62

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 14

0

63

Exmark 103-9086

KIT, SPLINED SPINDLE 103-

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$214.99

$

In Stock, only 4 left!

0

64

Exmark 103-9074

ASM, CUTTER HSG COMP 72

$535.99

$

Usually ships in 3-6 days

0

65

Exmark 103-1083

ASM,STRUT 72 LONG

$354.99

$

Usually ships in 3-6 days

0

66

Exmark 103-3249

KIT,JACKSHAFT 60/72-3750

$464.99

$

In Stock, only 1 left!

0

67

Exmark 103-3259

Complete Deck Asm

Note: Complete deck assembly excludes items #26, #27, #28, and #65 and includes mule drive belt from page 16.

$

$

Currently unavailable

68

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

69

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

70

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

71

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

72

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

73

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

74

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

75

Exmark 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

76

Exmark 109-0938-01

BRACKET,DISCHARGE CHUTE

$88.99

$

Usually ships in 3-6 days

0

77

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

78

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

79

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0
