LAS25KC604N - Exmark 60" Lazer Z AS Zero-Turn Mower, 25hp Kohler (SN: 720000 - 789999) (2008) Engine Deck Group - (cont.) Parts Diagram

60" Lazer Z AS Zero-Turn Mower, 25hp Kohler

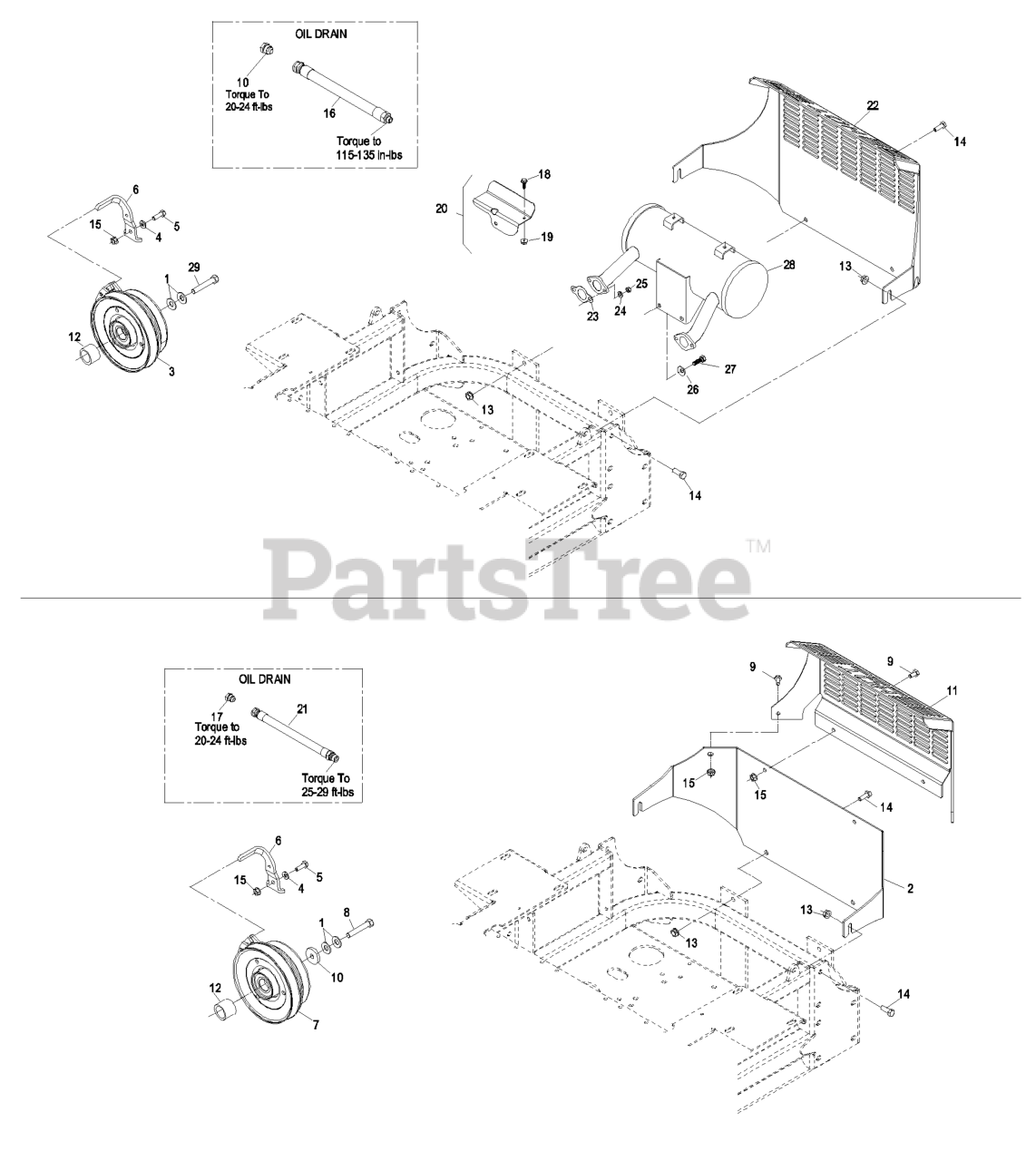

Engine Deck Group - (cont.) Parts Diagram

  • Title

1

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

2

Exmark 109-7712-03

GUARD,CLUTCH

$161.99

$

In Stock, only 1 left!

0

3

Exmark 109-7665

KIT,SPOT BRAKE CLUTCH 1.1

Note: (Kohler)

$719.99

$

Usually ships in 3-6 days

0

4

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

5

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 109-7083-03

ANCHOR-CLUTCH

$49.99

$

In Stock, only 1 left!

0

7

Exmark 109-7666

SPOT BRAKE CLUTCH KIT

Note: (Kawasaki)

$703.99

$

In Stock, only 1 left!

0

8

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$2.49

$

In Stock, only 1 left!

0

9

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Exmark 103-0152

KEEPER-CLUTCH

Note: (Kawasaki)

$12.99

$

In Stock, only 1 left!

0

11

Exmark 109-7713-03

GUARD,MUFFLER

Note: (Kawasaki)

$

$

Not available

12

Exmark 1-633179

SPACER-CLUTCH

$20.99

$

In Stock, Qty 5

0

13

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Exmark 32128-20

NUT-HF

Note: (Kohler)

$1.49

$

In Stock, Qty 20+

0

Exmark 32128-20

NUT-HF

Note: (Kawasaki)

$1.49

$

In Stock, Qty 20+

0

16

Exmark 109-2987

116-5327
(Superseded to 116-5327)

Note: (Kohler) Use a Teflon Pipe Sealant or equivalent on threads.

$38.99

$

Usually ships in 3-6 days

0

17

Exmark 109-1012

PLUG

$8.49

$

Usually ships in 3-6 days

0

18

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

20

Exmark 103-3535

CABLE HEAT SHIELD KIT

Note: (Kohler)

$96.99

$

Usually ships in 3-6 days

0

21

Exmark 109-4490

116-4924
(Superseded to 116-4924)

Note: (Kawasaki)

$37.99

$

In Stock, Qty 5

0

22

Exmark 109-8119-03

GUARD, REAR KC

Note: (Kohler)

$241.99

$

Usually ships in 3-6 days

0

23

Exmark 1-653291

110-6697
(Superseded to 110-6697)

Note: (Kohler)

$

$

Not available

24

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

25

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

26

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Exmark 324-2

SCREW-HH

$4.99

$

In Stock, only 3 left!

0

28

Exmark 103-7480

KIT,MUFFLER KOHLER

Note: (Kohler) Includes items #20 & #23.

$239.99

$

In Stock, only 4 left!

0

29

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$6.49

$

In Stock, only 1 left!

0
