LAS25KC604N - Exmark 60" Lazer Z AS Zero-Turn Mower, 25hp Kohler (SN: 720000 - 789999) (2008) Engine Deck Group - All Units Parts Diagram

60" Lazer Z AS Zero-Turn Mower, 25hp Kohler

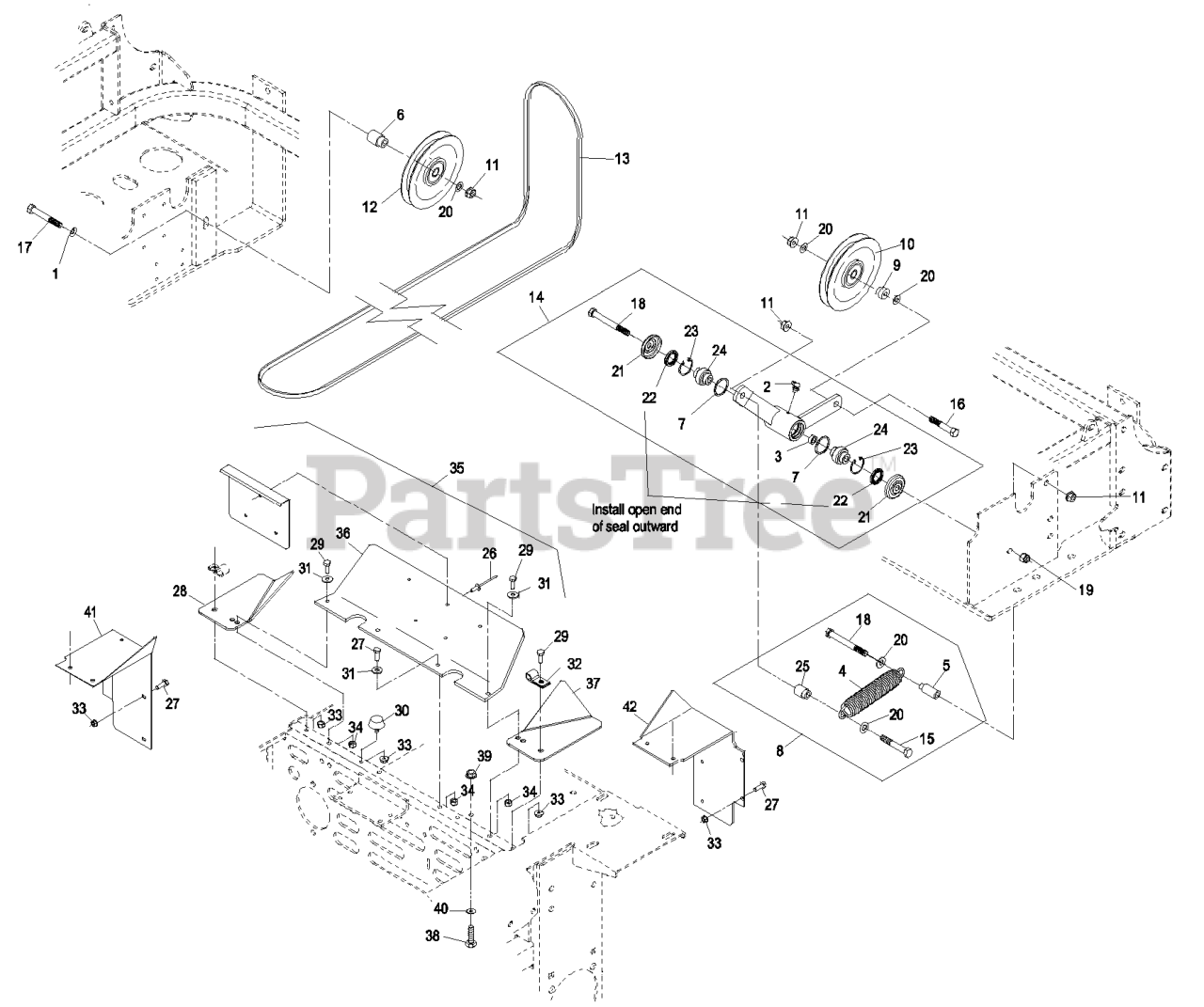

Engine Deck Group - All Units Parts Diagram

  • Title

1

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

2

Exmark 302-40

FITTING-GREASE, 90 DEG

Note: (90°)

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

4

Exmark 103-8599

116-6316
(Superseded to 116-6316)

$23.99

$

In Stock, Qty 20+

0

5

Exmark 109-3141

SPACER,SPRING MOUNT

$

$

Not available

6

Exmark 103-2627

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

7

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

8

Exmark 109-3766

KIT,MULE DRIVE SPRING

Note: Kit includes items shown and (2) whizlock nuts item #11

$109.99

$

Usually ships in 3-6 days

0

9

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

10

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

11

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-633166

PULLEY-IDLER

$56.99

$

In Stock, only 3 left!

0

13

Exmark 103-4014

BELT,B 116.1"
(Superseded to 103-4014-SL)

$104.99

$

In Stock, Qty 20+

0

14

Exmark 103-5695

KIT,MULE IDLER LZ

Note: (103-4593-03) Kit also includes item #19.

$125.99

$

In Stock, Qty 6

0

15

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

18

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

19

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

20

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

21

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

22

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

23

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

24

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

25

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

26

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

27

Exmark 321-4

SCREW-HH

Note: (Kohler)

$1.49

$

In Stock, Qty 20+

0

Exmark 321-4

SCREW-HH

Note: (Kawasaki)

$1.49

$

In Stock, Qty 20+

0

28

Exmark 103-6619-03

SUPPORT-FRONT COVER, RH

Note: (Kohler)

$26.99

$

Usually ships in 3-6 days

0

29

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, only 3 left!

0

31

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

32

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

33

Exmark 32128-33

NUT-HF

Note: (Kohler)

$0.99

$

In Stock, Qty 6

0

Exmark 32128-33

NUT-HF

Note: (Kawasaki)

$0.99

$

In Stock, Qty 6

0

34

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

35

Exmark 1-644276

SHIELD ASM

Note: (Kohler)

$106.99

$

In Stock, only 1 left!

0

Exmark 103-3341

ASM,DRIVE COVER W/DECAL

Note: (Kawasaki)

$114.99

$

Usually ships in 3-6 days

0

36

Exmark 103-1308

SHIELD-ENGINE

$31.99

$

In Stock, only 1 left!

0

37

Exmark 103-6620-03

SUPPORT-FRONT COVER, LH

Note: (LH) (Kohler)

$26.99

$

Usually ships in 3-6 days

0

38

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

40

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

41

Exmark 1-633794-03

1-644316
(Superseded to 1-644316)

Note: (Kawasaki)

$

$

Not available

42

Exmark 1-633795-03

1-634796
(Superseded to 1-634796)

Note: (Kawasaki)

$

$

Not available
