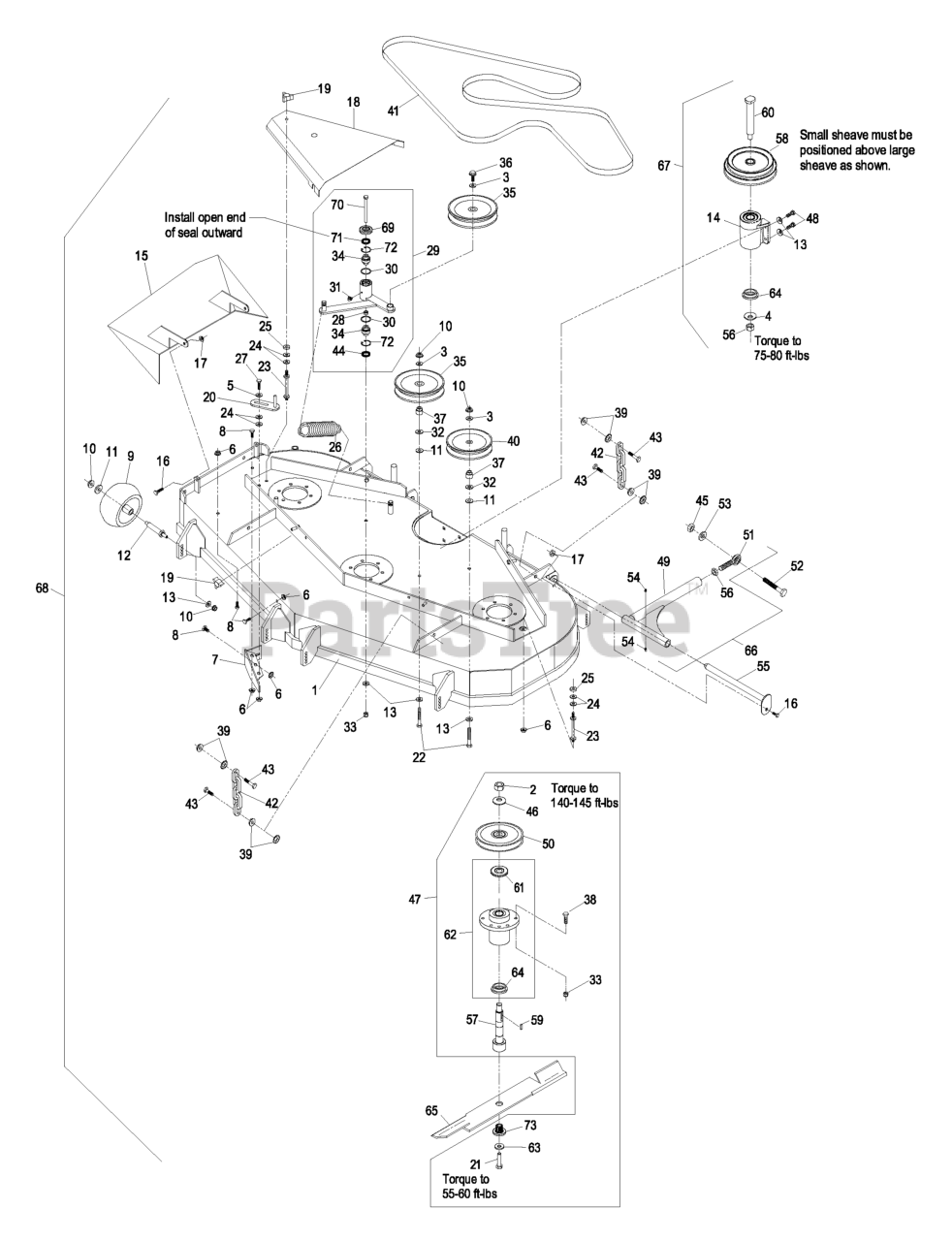

Exmark LAS25KC604 - Exmark 60" Lazer Z AS Zero-Turn Mower, 25hp Kohler (SN: 600000 - 669999) (2006) Deck Group 60" Parts Lookup with Diagrams

1

Exmark 103-3184

ASM,DECK W/DECALS LZ604

$4134.99

$

Usually ships in 3-6 days

2

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #2.

$12.99

$

In Stock, Qty 13

3

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

5

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

6

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

8

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-4051 includes antiscalp roller, spacer, & mounting hardware.

$23.99

$

In Stock, Qty 10

10

Exmark 99-2842

126-2928

(Superseded to 126-2928) 

$27.99

$

In Stock, Qty 5

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

14

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$263.99

$

In Stock, only 1 left!

15

Exmark 103-5830-01

WLD,CHUTE LZ604

$151.99

$

Usually ships in 3-6 days

16

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

17

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

18

Exmark 1-633084-01

SHIELD,BELT

$96.99

$

In Stock, Qty 9

19

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

20

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

21

Exmark 3213-5

SCREW-HH

$3.99

$

In Stock, Qty 20+

22

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

23

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

25

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

26

Exmark 103-3330

116-6317

(Superseded to 116-6317) 

$28.99

$

In Stock, Qty 7

27

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

28

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

29

Exmark 103-5693

KIT,DECK IDLER LZ/XP

Note: Kit also includes items #13 & #33.

$136.99

$

In Stock, Qty 11

30

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

31

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

32

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

33

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

34

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

35

Exmark 1-633109

126-7685

(Superseded to 126-7685) 

$62.99

$

In Stock, Qty 20+

36

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

37

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

38

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

39

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

40

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

41

Exmark 1-633127

BELT,BLADE DRIVE

(Superseded to 1-633127-SL) 

$119.99

$

In Stock, Qty 20+

42

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

43

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

44

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

45

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

46

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

47

Exmark 103-9076

ASM, CUTTER HSG COMPLETE

$470.99

$

In Stock, only 4 left!

48

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

49

Exmark 103-1072-01

109-1181

(Superseded to 109-1181) 

$103.99

$

In Stock, Qty 9

50

Exmark 103-2794

SHEAVE,BLADE DRIVE 6.30

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$68.99

$

In Stock, only 1 left!

51

Exmark 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

52

Exmark 327-11

SCREW-HH

$11.99

$

In Stock, Qty 11

53

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

54

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

55

Exmark 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

56

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

57

Exmark 103-9086

KIT, SPLINED SPINDLE 103-

Note: Kit includes items #2, #21, #46, #59, #63 & 73. Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based ant

$214.99

$

In Stock, only 3 left!

58

Exmark 103-3046

SHEAVE, JACKSHAFT DOUBLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$111.99

$

In Stock, only 3 left!

59

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 12

60

Exmark 1-643393

JACKSHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$33.99

$

Usually ships in 3-6 days

61

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$5.49

$

In Stock, only 2 left!

62

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$254.99

$

In Stock, only 3 left!
