L60 KW (53YI2RTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kawasaki (2016) Deck Parts Diagram

60" Tank Zero-Turn Mower, Kawasaki

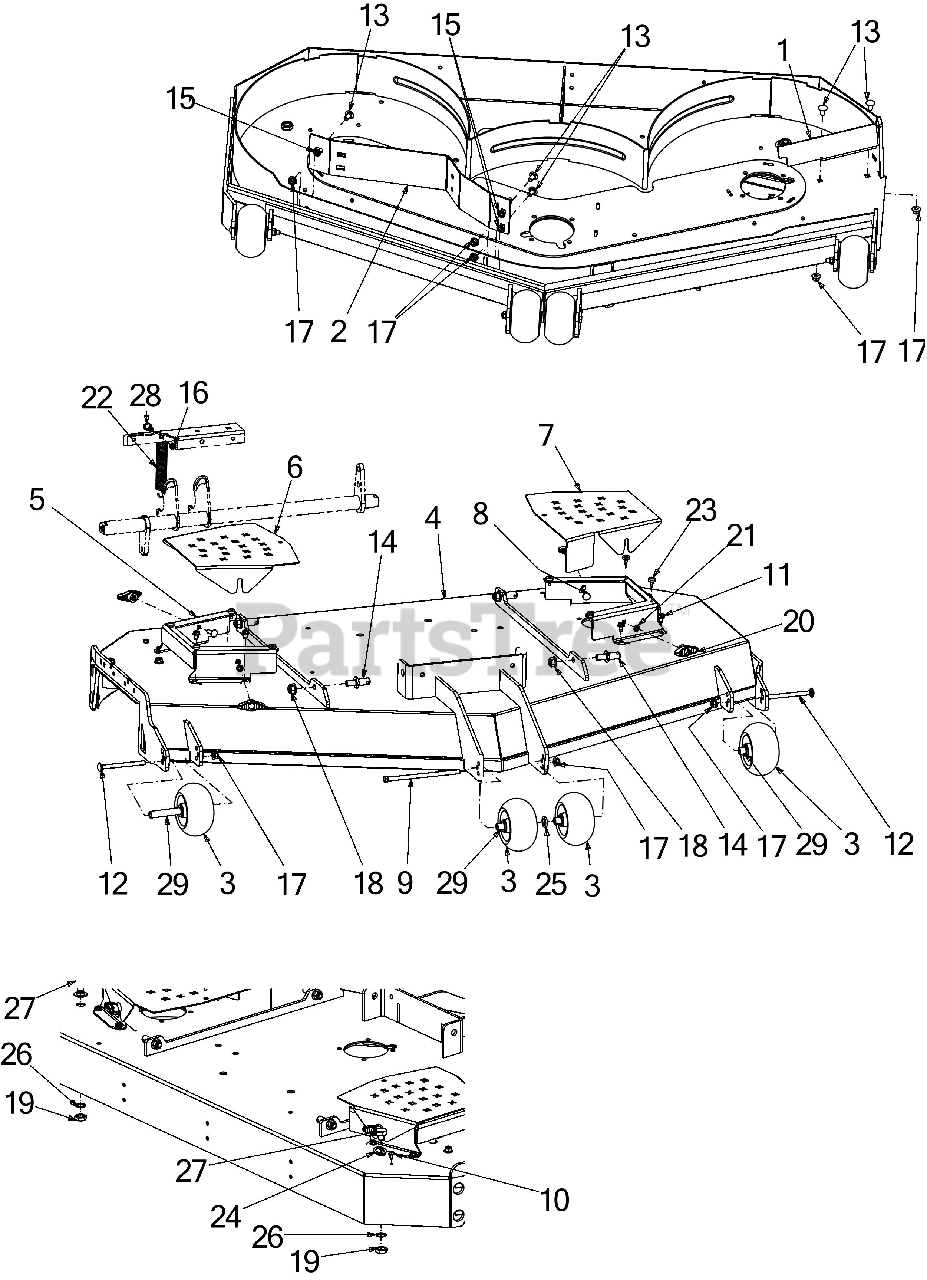

Deck Parts Diagram

  • Title

1

Cub Cadet 02005195-0637

CHUTE BAFFLE

$45.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 02005694-0637

BAFFLE - 60

$56.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 634-3159

WHEEL ASSEMBLY 5"

$34.99

$

In Stock, Qty 20+

0

3

Cub Cadet 937-0280

GREASE FITTING
(Superseded to 737-0280)

Note: (Not Shown)

$7.99

$

In Stock, Qty 8

0

3

Cub Cadet 741-0487C

FLANGE BEARING

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00329-0637

60" DECK ASSEMBLY

$1591.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09921-4021

DECK BELT COVER BRACKET

$73.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09922-4021

DECK BELT COVER

$73.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09924-4021

DECK BELT COVER (LH)

$94.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04692

SCREW 3/8-16 x 7.25 GR5

$9.49

$

In Stock, only 1 left!

0

10

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

12

Cub Cadet 710-1649

CARRIAGE BOLT 3/8-16 x 4.25 GR5

$17.99

$

In Stock, only 2 left!

0

13

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 711-05604

PIN

$11.99

$

In Stock, Qty 14

0

15

Cub Cadet 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 912-0641

HEX NUT
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

20

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

22

Cub Cadet 732-04929

EXTENSION SPRING

$8.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 735-0271A

BUMPER, .62 DIA x .3

$8.99

$

In Stock, only 2 left!

0

24

Cub Cadet 936-0287

FLAT WASHER .793ID x 1.24OD x .060
(Superseded to 736-0287)

$

$

Not available

25

Cub Cadet 736-04296

FLAT WASHER .632X1.00X.16

$3.49

$

In Stock, Qty 11

0

26

Cub Cadet 936-0760

LOCK WASHER

$4.49

$

In Stock, Qty 13

0

27

Cub Cadet 738-04146

DECK WASH PLUG

$9.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 738-04222

SHOULDER SCREW .437X.50 1/4-20

$2.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 750-3193

WHEEL SPACER .38ID x 3.04LG

$18.99

$

In Stock, Qty 20+

0
