L60 KW (53YI2RTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kawasaki (2015) Seat Assembly Parts Diagram

60" Tank Zero-Turn Mower, Kawasaki

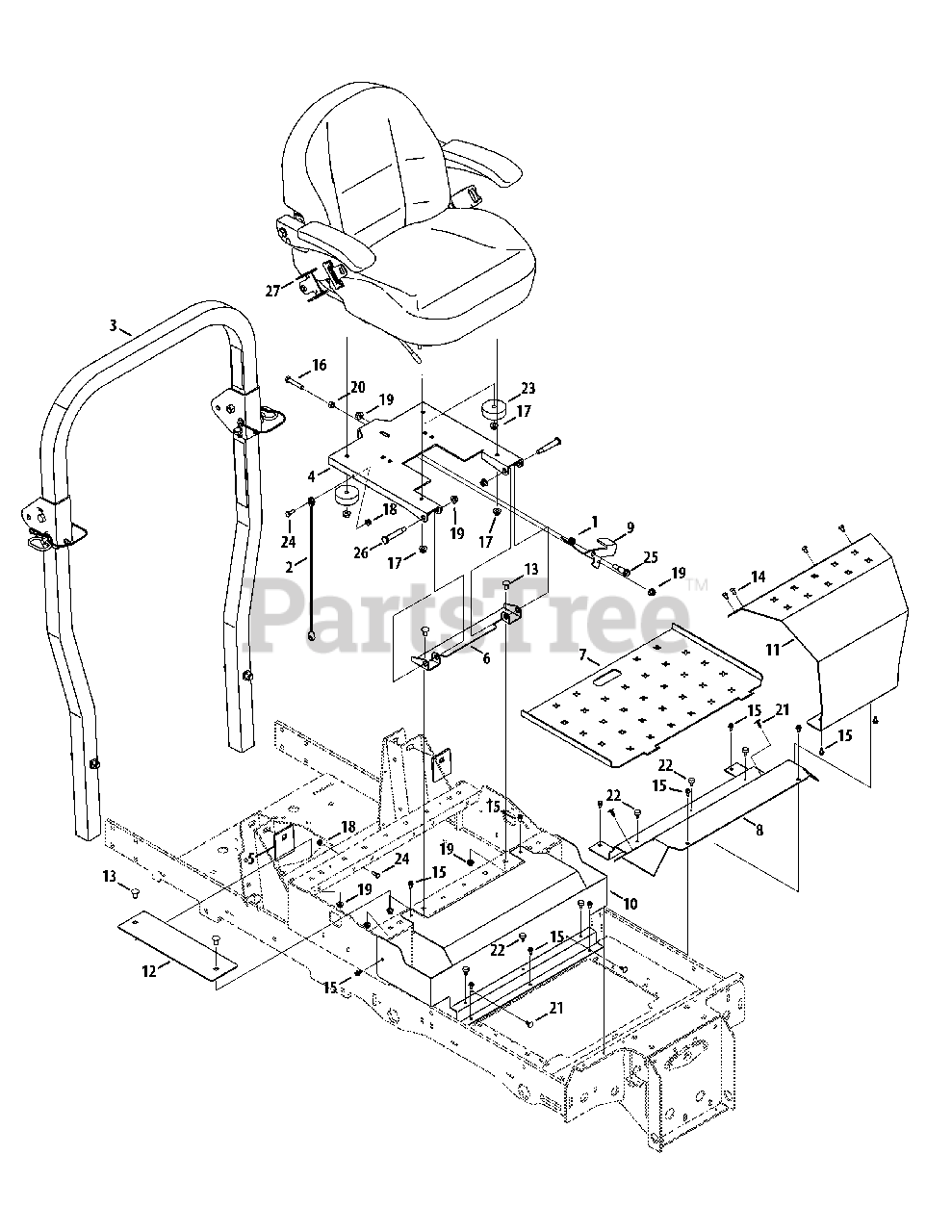

Seat Assembly Parts Diagram

  • Title
1

Cub Cadet 01008140P

Torsion Spring, .725 x 1.0 x .09

$34.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 02004062P

Cable Support

$19.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00175

Folding ROPS Assembly

$876.99

$

Usually ships in 3-6 days

0

3

Cub Cadet CP-3-10131

Screw-Hex Head 3.00"

Note: (not shown)

$11.99

$

Usually ships in 3-6 days

0

3

Cub Cadet CP-3-10141

Screw-Hex Head 3.50"

Note: (not shown)

$11.99

$

Usually ships in 3-6 days

0

3

Cub Cadet CP-3-10485

NUT 1/2-13

Note: (not shown)

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet CP-3-12466

FLAT WASHER .500

Note: (not shown)

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet CP-3-17811

U-LOCK-NYLON LANYARD

Note: (not shown)

$8.99

$

Usually ships in 3-6 days

0

3

Cub Cadet CP-3-18413

RETAINING WASHER

Note: (not shown)

$12.99

$

In Stock, only 1 left!

0

3

Cub Cadet CP-3-18417

HITCH PIN w/R-CLIP
(Superseded to CP-3-18417P)

Note: (not shown)

$51.99

$

Usually ships in 3-6 days

0

3

Cub Cadet CP-3-18418

FOAM WASHER

Note: (not shown)

$8.49

$

Usually ships in 3-6 days

0

3

Cub Cadet CP-3-18480

BUMPER w/FLANGE

Note: (not shown)

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-07814-0637

Seat Mounting Bracket

$91.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-07880-0637

Deck Reinforcement Plate

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08241-0637

Seat Mounting Bracket

$40.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08324-0637

Floor Panel Tray

$67.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08416-0637

Floor Panel
(Superseded to 703-08416-4021)

$87.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08480-4021

Seat Lever Latch

$31.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08496-0637

Control Panel Cover

$100.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-08633A-4021

Front Panel Cover

$137.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-09560-0637

Seat Panel Cover, RH

$18.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0389

Carriage Bolt, 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-05070A

Screw, 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

15

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0859

Hex Cap Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 17

0

17

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04064

Nut, 1/4-20, Flangelock

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 912-3017

Nut, 3/8-16, Hex
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 726-3046

Clip, .250 Dia.

$3.99

$

In Stock, Qty 15

0

22

Cub Cadet 735-0271A

Bumper, .62 Dia. x .3

$8.99

$

In Stock, only 1 left!

0

23

Cub Cadet 735-04286

Rubber Bumper, 2.5 x 1.0

$8.99

$

In Stock, Qty 12

0

24

Cub Cadet 738-04395

Shoulder Screw, .31 x .50, 1/4-20

$4.49

$

In Stock, only 1 left!

0

25

Cub Cadet 738-0966A

Shoulder Bolt, .50 x .925, 3/8-16

$4.99

$

In Stock, Qty 19

0

26

Cub Cadet 738-1011A

Shoulder Bolt, .500 x 2.23, 3/8-16

$8.49

$

In Stock, Qty 11

0

27

Cub Cadet 757-04160

Seat, w/ Suspension

$1060.99

$

Usually ships in 3-6 days

0

27

Cub Cadet SI-111880

6" Seat Track Kit

Note: (Not Shown)

$238.99

$

Usually ships in 3-6 days

0

27

Cub Cadet SI-176201

Black Selfskin-Arm Pad Only

Note: (Not Shown)

$74.99

$

Usually ships in 3-6 days

0

27

Cub Cadet SI-181773

Armrest Set-Cam Adjust

Note: (Not Shown)

$219.99

$

Usually ships in 3-6 days

0

27

Cub Cadet SI-181774

Armrest-LH Selfskin Cam Adjust

Note: (Not Shown)

$171.99

$

Usually ships in 3-6 days

0

27

Cub Cadet SI-181775

Armrest-RH Selfskin Cam adjust

Note: (Not Shown)

$171.99

$

Usually ships in 3-6 days

0

27

Cub Cadet SI-310736

Seat Cover-Back

Note: (Not Shown)

$201.99

$

Usually ships in 3-6 days

0

27

Cub Cadet SI-310737

Seat Cushion Cover

Note: (Not Shown)

$201.99

$

Usually ships in 3-6 days

0

27

Cub Cadet SI-310843

Seatbelt Kit

Note: (Not Shown)

$184.99

$

Usually ships in 3-6 days

0

27

Cub Cadet SI-781580

Delta Seat Switch

Note: (Not Shown)

$53.99

$

Usually ships in 3-6 days

0
