L60 KW (53YI2RTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kawasaki (2015) Hydro Controls Parts Diagram

60" Tank Zero-Turn Mower, Kawasaki

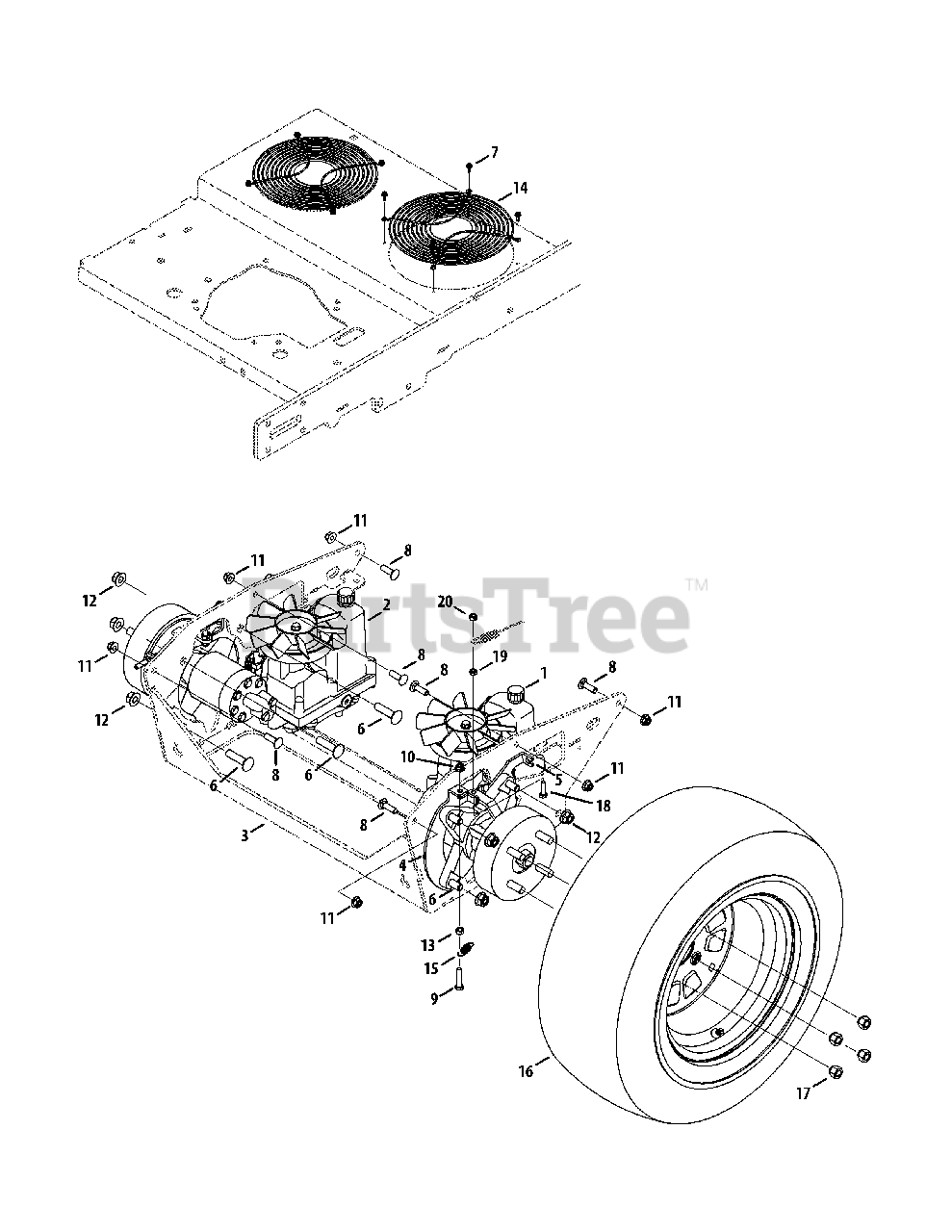

Hydro Controls Parts Diagram

  • Title
1

Cub Cadet 918-06079

Transmission, RH
(Superseded to 918-06079A)

$2757.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-06080

Transmission, LH
(Superseded to 918-06080A)

$2399.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00336-0637

Transmission Bracket Assembly

$296.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09657-0637

Spring Brake Mounting Bracket
(Superseded to 703-09657A-0637)

$29.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09658-0637

Brake Cable Mounting Bracket
(Superseded to 703-09658A-0637)

$24.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04191

Carriage Bolt, 1/2-13 x 2.00

$3.49

$

In Stock, only 2 left!

0

7

Cub Cadet 1767754

Screw, 10-24 x .500
(Superseded to 710-04460)

$

$

Not available

8

Cub Cadet 710-05408

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0805A

Hex Cap Screw, 5/16-18 x 1.50

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04150

Nut, 1/2-13, Flangelock

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 912-3010

Nut, 5/16-18, Hex
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

14

$19.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-05147

Extension Spring, .50 OD x 1.71

$5.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 634-05087-0931

Wheel Assembly, 24 x 9.5-12

$589.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-04311

Lug Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3007

Jam Nut, 5/16-18

$6.99

$

In Stock, only 2 left!

0

20

Cub Cadet 912-3009

Hex Lock Nut, 5/16-18
(Superseded to 712-3009)

$

$

Not available
