L60 KW (53YI2RTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kawasaki (2015) Control Assembly Parts Diagram

60" Tank Zero-Turn Mower, Kawasaki

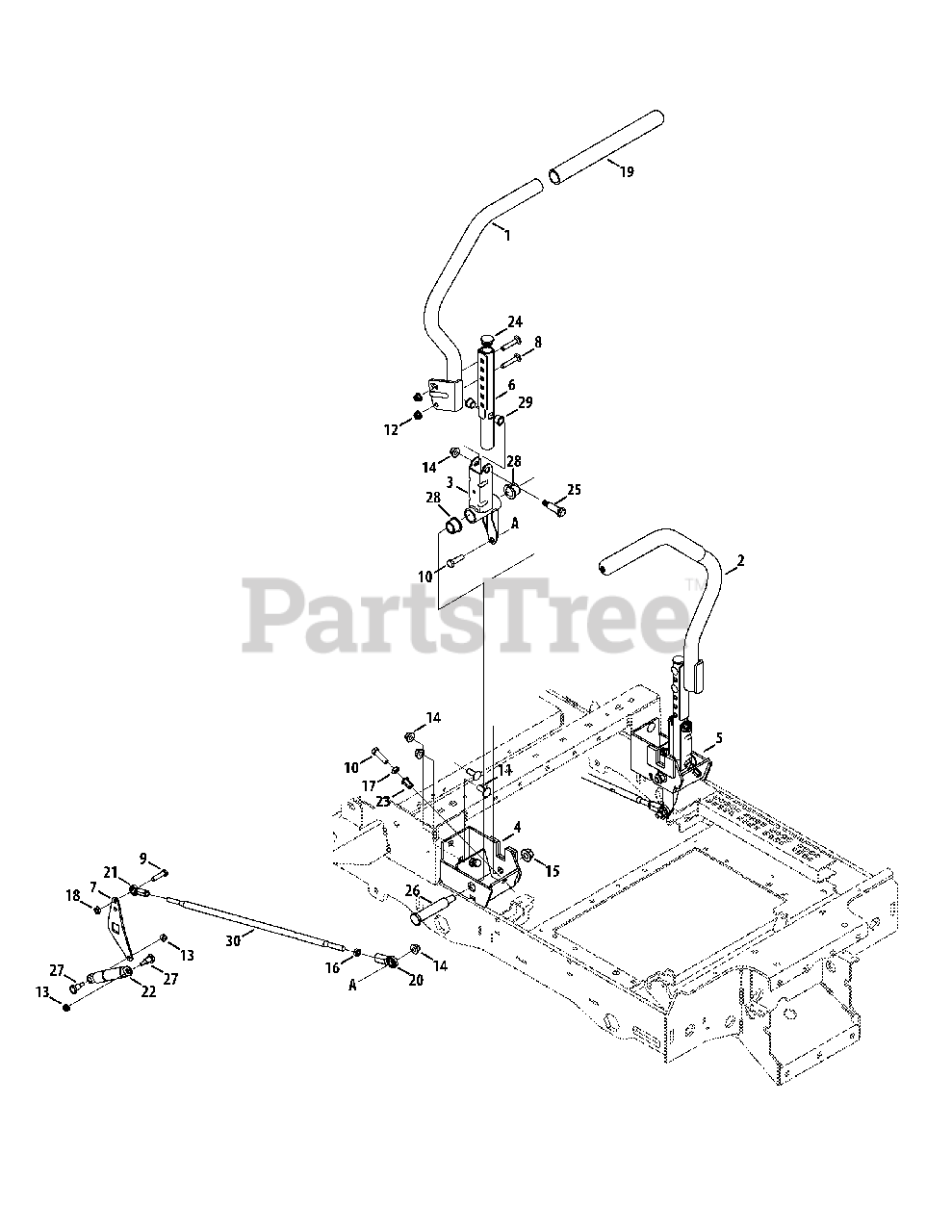

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 603-05016A-0637

Lapbar Lever Assembly, RH

$63.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05019A-0637

Lapbar Lever Assembly, LH

$63.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00333-0637

Pivot Hub Assembly

$

$

Not available

4

Cub Cadet 680-00342A-0637

Pivot Housing Weldment, RH

$64.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00343A-0637

Pivot Housing Weldment, LH

$69.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-00344-0637

Lapbar Adjustment Tube Assembly

$69.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09445-0637

Damper Mounting Bracket
(Superseded to 703E09445)

$9.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04064

Nut, 1/4-20, Flangelock

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

Nut, 3/8-16, Flnagelock

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04150

Nut, 1/2-13, Flangelock

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-0711

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 19

0

18

Cub Cadet 712-3046

Nut, Hex Jam, 5/16-18

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 720-05008

Grip, 1.0 ID

$25.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 723-04080

Ball Joint, 3/8-24

$41.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 723-05004

Rod End, 5/16 ID, Female LH

$51.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 727-05021

Damper Cylinder, .87 OD x 7.06 LG
(Superseded to 727-05134)

$73.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 728-04062A

Rivet Nut, 3/8-16
(Superseded to 728-04062B)

$4.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 735-0246A

Plug End

$5.99

$

In Stock, only 1 left!

0

25

Cub Cadet 738-05025

Shoulder Screw, .498 Dia. x 1.296

$7.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 738-05033

Shoulder Bolt, .75 x 3.25, 1/2-13

$16.99

$

In Stock, only 3 left!

0

27

Cub Cadet 738-05034

Shoulder Screw, .395 Dia. x .56 LG

$7.49

$

In Stock, only 1 left!

0

28

Cub Cadet 741-04050

Bearing, .75 x 1.00 x .73

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 741-0748

Flange Bushing, .500 ID x .627 OD

$11.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 747-06212

Pump Rod

$36.99

$

Usually ships in 3-6 days

0
