L60 KH (53AN2RTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler (2014) Front Axle Assembly Parts Diagram

60" Tank Zero-Turn Mower, Kohler

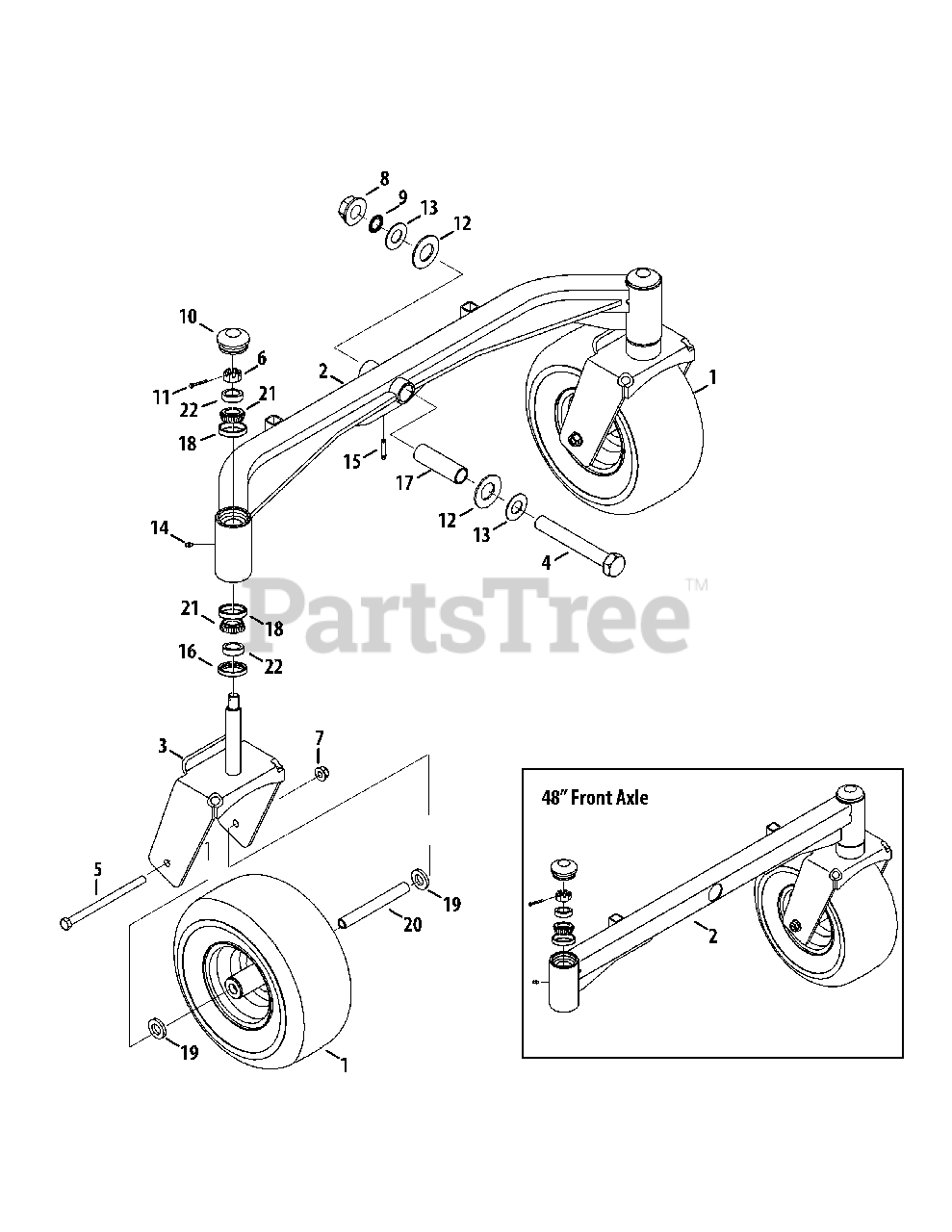

Front Axle Assembly Parts Diagram

  • Title

1

Cub Cadet 634-04750

Wheel Assembly, 13 x 6.50-6

$185.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00323-0637

Front Axle (54" & 60")

$636.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00324-0637

Yoke, Caster Wheel

$190.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-05189

Hex Cap Screw, 1-14 x 7.0
(Superseded to 710-05189C)

$59.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-05394A

Hex Cap Screw, 1/2-13 x 7.75

$10.99

$

In Stock, only 1 left!

0

6

Cub Cadet 712-0359

Nut, 3/4-16, Slotted

$11.99

$

In Stock, only 1 left!

0

7

Cub Cadet 712-04150

Nut, 1/2-13, Flangelock

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04310

Nut, 1.0-14, Flangelock

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 716-04191

Retainer Ring

$3.99

$

In Stock, only 3 left!

0

10

Cub Cadet 731-07348

Axle Grease Cap

$8.99

$

In Stock, only 2 left!

0

11

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-04604

Bell Washer, 1.25 x 2.50 x .180

$8.49

$

In Stock, only 2 left!

0

13

Cub Cadet 736-04605

Washer, 1.00 x 2.00 x .075

$4.49

$

In Stock, Qty 12

0

14

Cub Cadet 737-04345

Grease Fitting, 1/4-28

$4.99

$

In Stock, Qty 6

0

15

Cub Cadet 737-04352

Grease Fitting, 1 39/64

$15.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 721-04462

Seal

$10.99

$

In Stock, Qty 11

0

17

Cub Cadet 750-05438

Spacer, 1.005 x 1.247 x 4.1

$25.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 741-04548

Cup Bearing

$8.99

$

In Stock, Qty 14

0

19

Cub Cadet 750-05553

Spacer, .812 ID x .218 LG

$9.99

$

In Stock, Qty 20+

0

20

Cub Cadet 750-05625

Spacer, .515 x .749 x 6.313

$13.99

$

In Stock, Qty 20+

0

21

Cub Cadet 741-04549

Cone Bearing

$19.99

$

In Stock, Qty 14

0

22

Cub Cadet 750-05600

Spacer, 1.00 x 1.50 x .437

$7.49

$

In Stock, only 1 left!

0
