L60 KH (53AH8CTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler (2011) Kohler CV740-3125 Crankcase Parts Diagram

60" Tank Zero-Turn Mower, Kohler

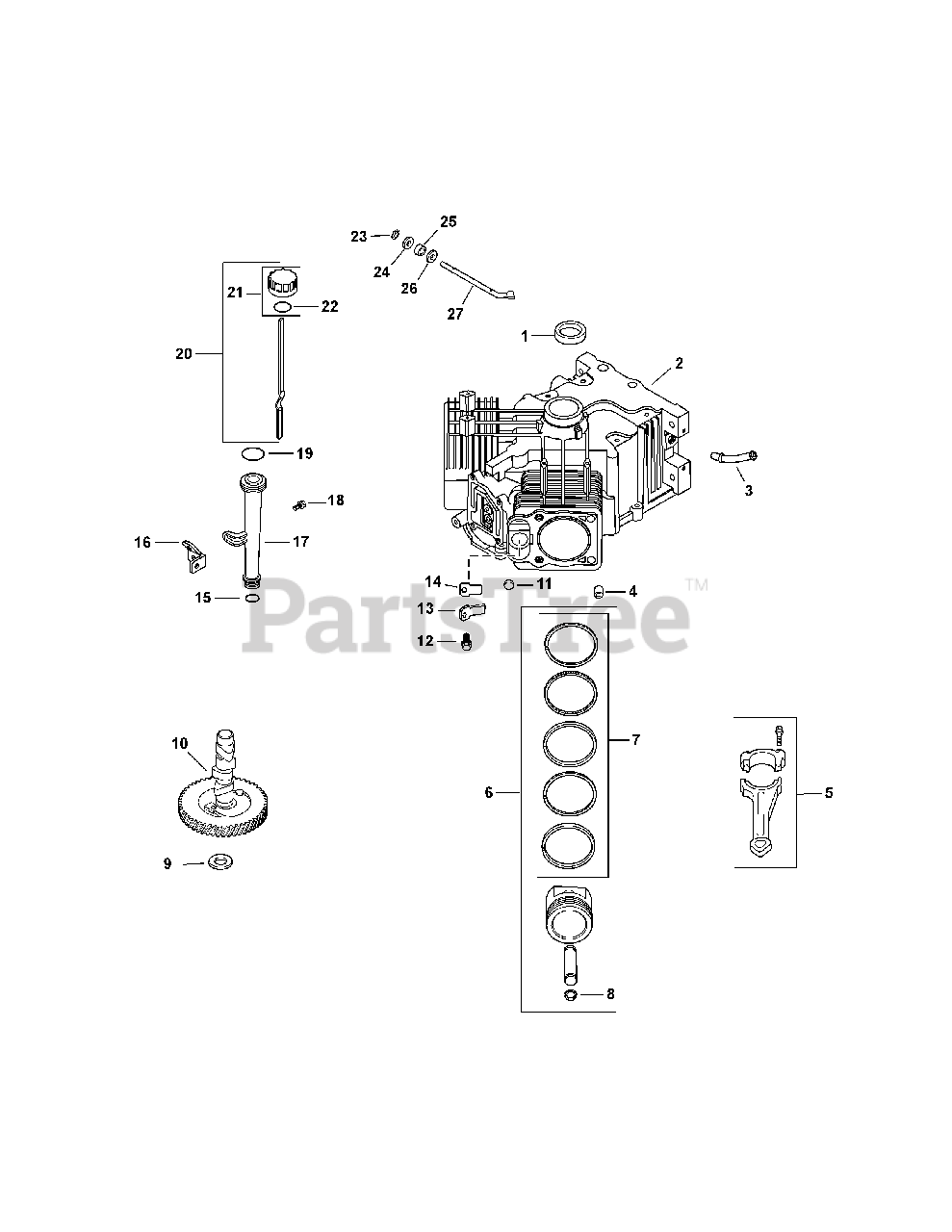

Kohler CV740-3125 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-032-19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet N/A

CRANKCASE

Note: (USE: Miniblock KH-24-782-14)

$

$

Currently unavailable

3

Cub Cadet KH-24-294-13

FITTING

$

$

Not available

4

Cub Cadet KH-24-380-16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-28-S

ROD, ASSEMBLY CONNECTING (STD)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, Qty 11

0

5

Cub Cadet KH-24-067-29-S

ROD, ASSY CONNECTING (.25 O.S.)
(Superseded to KH-25-067-05-S)

$59.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-874-01-S

KIT,PISTON W/RNG SET (STD) 83mm (includes 7, 8)
(Superseded to KH-25-874-13-S)

$270.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-25-874-02-S

KIT,PISTON W/RING (0.08) 83mm
(Superseded to KH-25-874-07-S)

$261.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-874-03-S

KIT,PISTON W/RING (0.25) 83mm
(Superseded to KH-25-874-16-S)

$261.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-874-04-S

KIT,PISTON W/RING (0.50) 83mm
(Superseded to KH-25-874-17-S)

$261.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-108-14-S

RING SET (STD)

$

$

Not available

7

Cub Cadet KH-24-108-15-S

RING SET (.08)

$103.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-108-16-S

RING SET (.25)

$103.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-24-108-17-S

RING SET (.50)

$

$

Not available

8

Cub Cadet KH-24-018-01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-12-422-07-S

SHIM, CAMSHAFT (WHITE .028'')

$4.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-012-18-S

KIT, CAMSHAFT
(Superseded to KH-24-012-26-S)

Note: (includes KH-25-357-14-S)

$165.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-52-139-09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-M-0545010

SCREW, FLG THD FRM M5X.8X10

$

$

Not available

13

Cub Cadet KH-24-018-04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-24-402-05-S

REED, BREATHER
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-12-153-01-S

O-RING, LOWER OIL FILL TUBE

$4.99

$

In Stock, Qty 16

0

16

Cub Cadet KH-24-126-19

BRACKET, OIL FILL TUBE
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-32-755-04-S

TUBE ASSEMBLY

$

$

Not available

18

Cub Cadet KH-M-545016-S

SCREW, FLG THD FRM M5X0.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-12-153-02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 8

0

20

Cub Cadet KH-24-038-04-S

DIPSTICK, ASSY (includes 21, 22)

$19.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-24-755-46

KIT, OIL FILL CAP (YELLOW) (Includes 22)

$

$

Not available

22

Cub Cadet KH-25-153-02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

23

Cub Cadet KH-24-018-09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

25

Cub Cadet KH-28-032-09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

26

Cub Cadet KH-24-468-15-S

WASHER, FLAT 11/32''

$2.49

$

In Stock, Qty 5

0

27

Cub Cadet KH-24-144-38-S

SHAFT, GOVERNOR CROSS
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-357-14-S

LUBRICANT, CAMSHAFT

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-CV740-3125

Complete Engine
(Superseded to KH-CV742-3016)

Note: NOT ILLUSTRATED

$4329.99

$

Usually ships in 3-6 days

0
