L60 KH (53AH8CTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler (2011) Brake Assembly Parts Diagram

60" Tank Zero-Turn Mower, Kohler

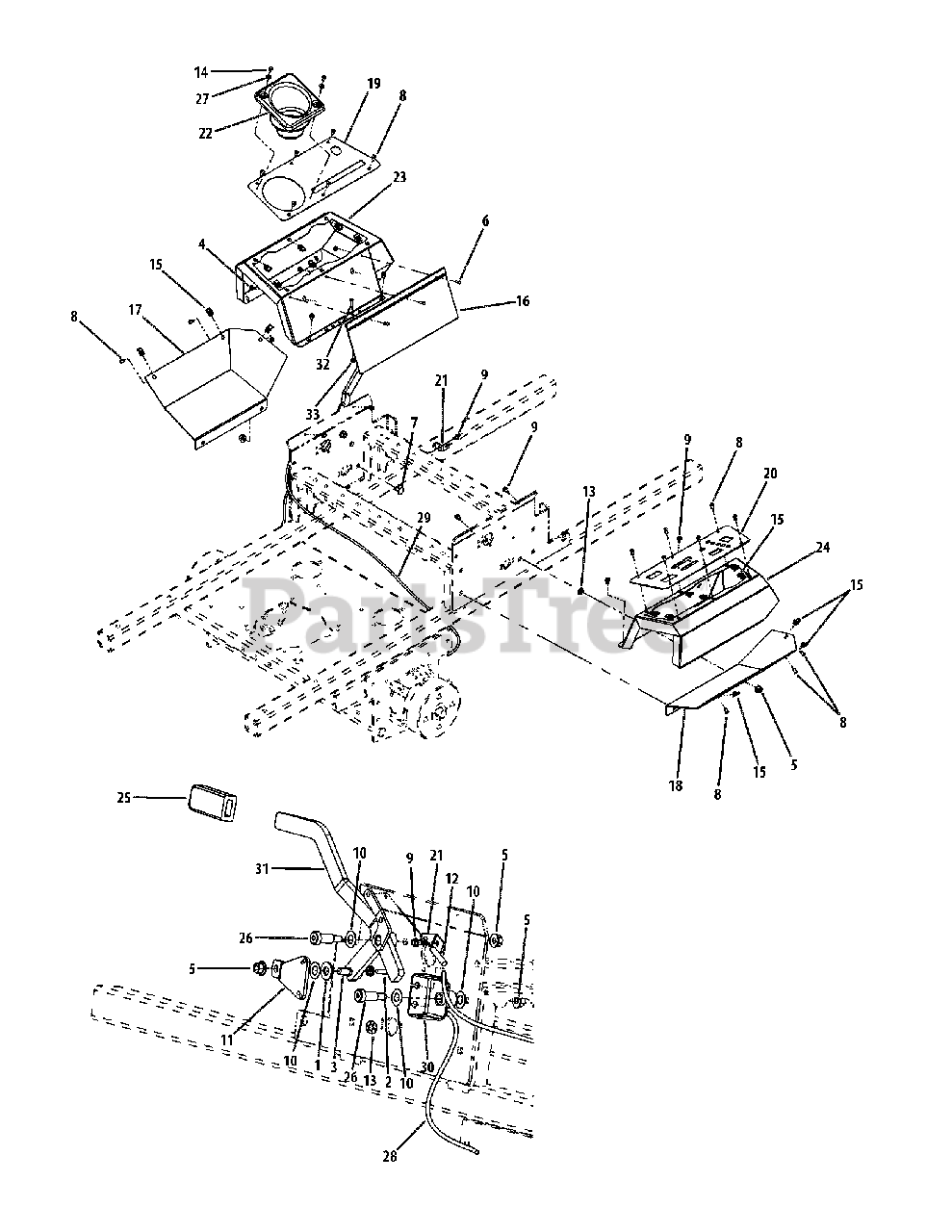

Brake Assembly Parts Diagram

  • Title

1

Cub Cadet 00012577

Washer, 1/2 Zinc

$5.49

$

In Stock, Qty 10

0

2

Cub Cadet 710-3168

Carriage Bolt, 3/8-16, 1.00

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 00011450

Shoulder Bolt, 1/2 x 1/2

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

5

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00030906

Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3256

Screw Button Head, 1/4-20 x .5

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Washer

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 936-0369

Washer, .508 ID x 1.0 OD x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 02003841

Centering Bracket

$

$

Not available

12

Cub Cadet 01008198P

Left Hand Brake Cable

$42.99

$

In Stock, only 4 left!

0

13

Cub Cadet 01008225

Push Retainer, 3/8
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 01008531P

Screw, #10-32 x 0.500

$5.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04199

U-Nut, 1/4-20

$

$

Not available

16

Cub Cadet 02000362

Bag, Debris Storage

$

$

Not available

17

Cub Cadet 02002785-4021

Lower Panel, LH

$

$

Not available

18

Cub Cadet 02002786-4021

Lower Panel, RH

$

$

Not available

19

Cub Cadet 02002806-4021

Control Panel Cover, LH

$

$

Not available

20

Cub Cadet 703-07603-4021

Control Panel Cover, RH

$42.99

$

In Stock, only 1 left!

0

21

Cub Cadet 02002864

Brake Cable Mounting Bracket

$7.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 02002874

Cup Holder

$39.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02002969-4021

Control Panel, LH

$

$

Not available

24

Cub Cadet 02002970-4021

Control Panel, RH

$

$

Not available

25

Cub Cadet 02003010

Parking Brake Grip

$

$

Not available

26

Cub Cadet 02003603

Shoulder Bolt, 1/2 x 1.00, 3/8-16
(Superseded to 738-04533)

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 02003725

Washer, 3/16

$

$

Not available

28

Cub Cadet 02003770

Brake Cable, LH

$54.99

$

In Stock, only 3 left!

0

29

Cub Cadet 02003774

Brake Cable, RH
(Superseded to 02003774P)

$67.99

$

In Stock, only 4 left!

0

30

Cub Cadet 02003776

Brake Cable Bracket

$67.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02005151-0637

Brake Lever

$

$

Not available

32

Cub Cadet 710-3015

Screw, Hex, Cap, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 912-3027

Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0
