L54 KW (53AI2RTC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kawasaki (2014) Kawasaki FX730V-S24 Air Filter & Muffler Parts Diagram

54" Tank Zero-Turn Mower, Kawasaki

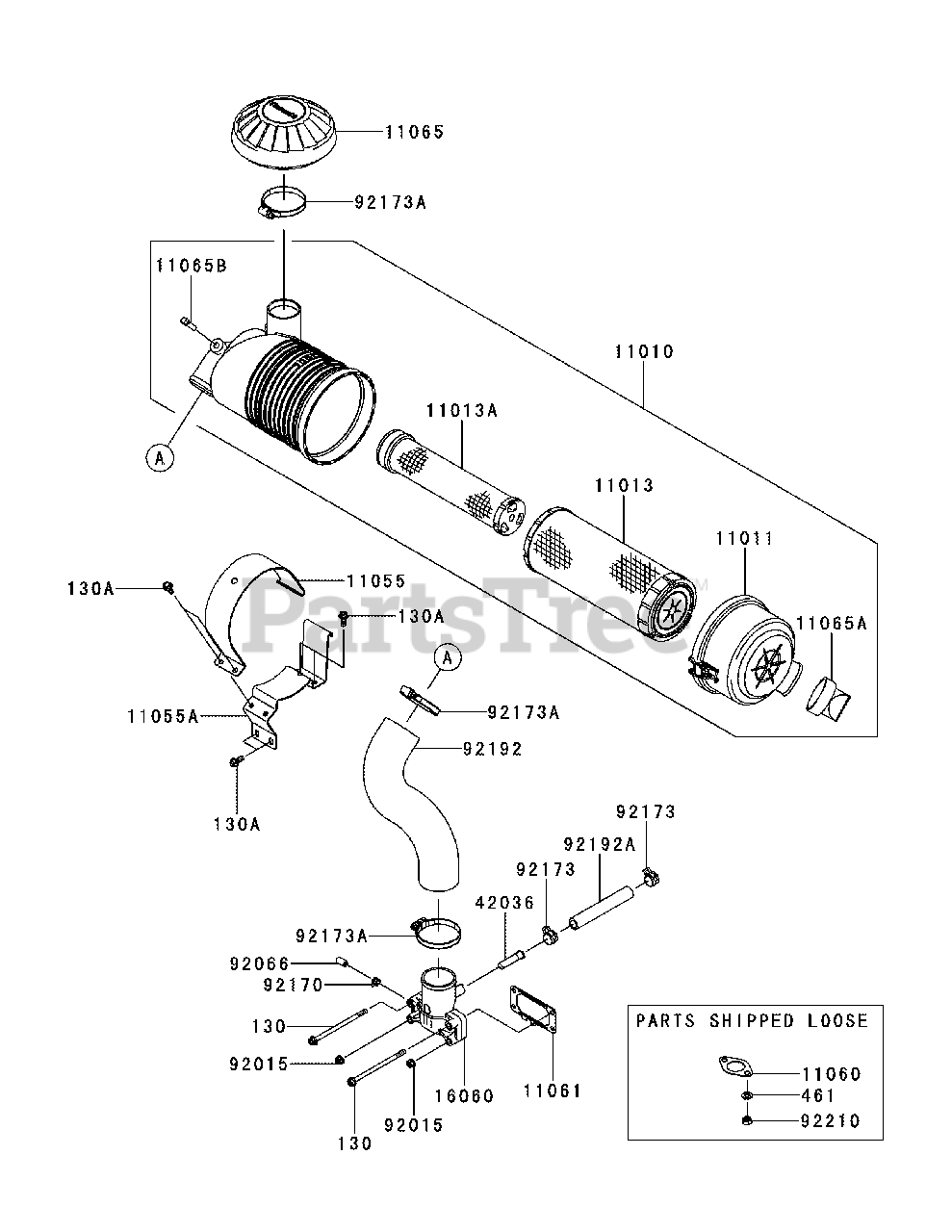

Kawasaki FX730V-S24 Air Filter & Muffler Parts Diagram

  • Title

11010

Cub Cadet KM-11010-7028

FILTER-ASSY-AIR

$118.99

$

In Stock, Qty 20+

0

11011

Cub Cadet KM-11011-7056

CASE-AIR FILTER

$46.99

$

In Stock, Qty 20+

0

11013

Cub Cadet KM-11013-7044

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 20+

0

11013A

Cub Cadet KM-11013-7045

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 20+

0

11055

Cub Cadet KM-1105570119H

BRACKET

$13.99

$

Usually ships in 3-6 days

0

11055A

Cub Cadet KM-1105570129H

BRACKET

$23.99

$

Usually ships in 3-6 days

0

11060

Cub Cadet KM-11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11061

Cub Cadet KM-11061-7043

GASKET,CARBURETOR

$3.49

$

In Stock, Qty 20+

0

11065

Cub Cadet KM-11065-7025

CAP
(Superseded to KM-11065-1384)

$41.99

$

In Stock, Qty 20+

0

11065A

Cub Cadet KM-11065-7031

CAP

$13.99

$

In Stock, Qty 20+

0

11065B

Cub Cadet KM-11065-7032

CAP

$4.49

$

In Stock, only 3 left!

0

16060

Cub Cadet KM-16060-7040

PIPE-INTAKE

$41.99

$

Usually ships in 2-5 days

0

42036

Cub Cadet KM-42036-7022

SLEEVE,BREATHER
(Superseded to KM-42036-0781)

$1.49

$

In Stock, Qty 20+

0

92015

Cub Cadet KM-92015-1367

NUT

$4.49

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-0095

PLUG

$5.49

$

In Stock, Qty 14

0

92170

Cub Cadet KM-92170-2042

CLAMP

$1.49

$

In Stock, Qty 15

0

92173

Cub Cadet KM-92173-7003

CLAMP

$2.49

$

In Stock, Qty 15

0

92173A

Cub Cadet KM-92173-1001

CLAMP

$3.99

$

In Stock, Qty 20+

0

92192

Cub Cadet KM-92192-1360

TUBE

$56.99

$

In Stock, Qty 15

0

92192A

Cub Cadet KM-92192-7146

TUBE,12.6X18.6X118

$1.99

$

In Stock, Qty 20+

0

92210

Cub Cadet KM-92210-7027

NUT,M8

$1.99

$

In Stock, Qty 20+

0

130

Cub Cadet KM-130AA06110

BOLT-FLANGED,6X110

$3.49

$

In Stock, Qty 13

0

130A

Cub Cadet KM-130AA0616

BOLT-FLANGED,6X16

$0.99

$

In Stock, Qty 20+

0

461

Cub Cadet KM-461DA0800

WASHER-SPRING,8MM

$0.99

$

In Stock, Qty 20+

0
