L5000 (8876-1) - Generac 5,000 Watt Portable Generator Receptacle Panel No. 68872-B Model L5000 Parts Diagram

5,000 Watt Portable Generator

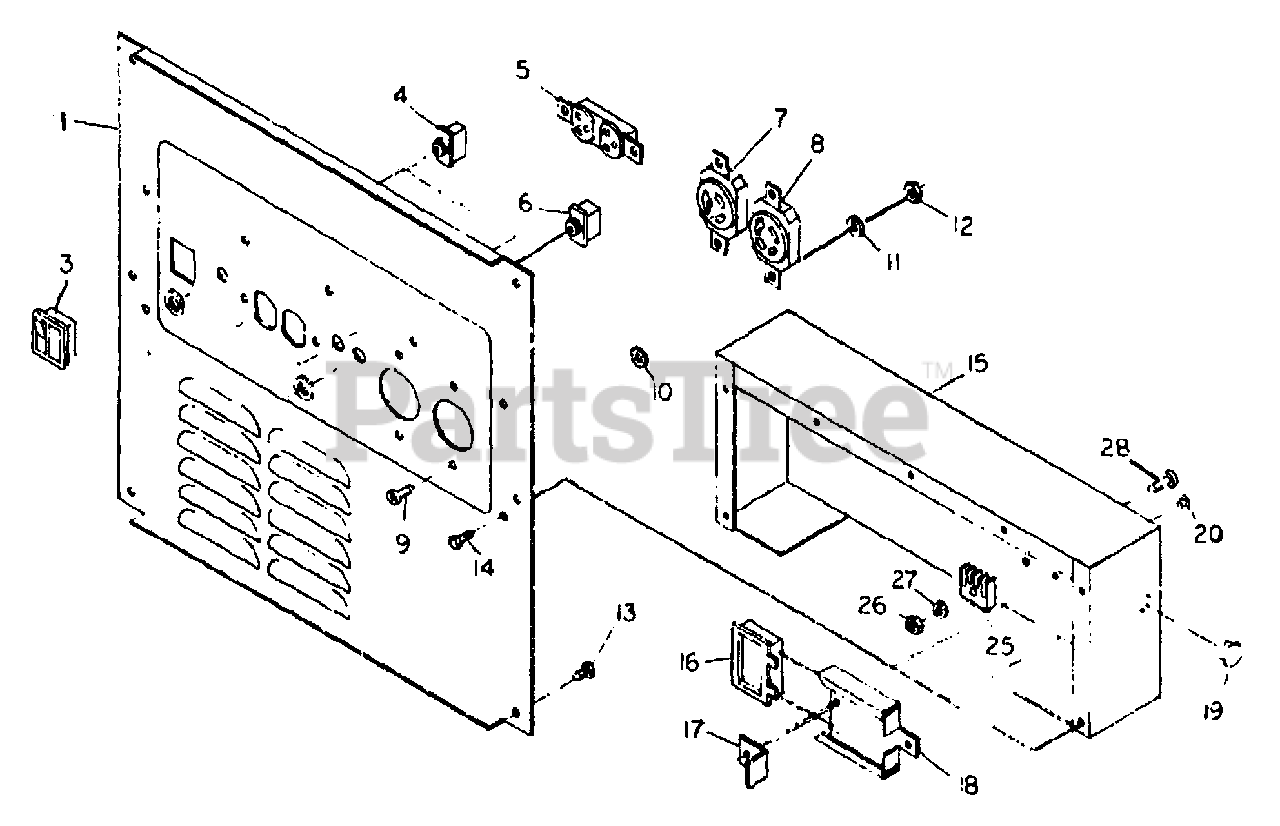

Receptacle Panel No. 68872-B Model L5000 Parts Diagram

  • Title

1

Briggs & Stratton 68866C

PANEL-L5000

$

$

Currently unavailable

3

Briggs & Stratton 66817

SWITCH, Engine-Run/Stop
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66819

BREAKER, Circuit-20 amp

$

$

Currently unavailable

5

Briggs & Stratton 68759

RECEPTACLE - 120 volts, 20 amp, Duplex Type
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

6

Briggs & Stratton 60824

BREAKER, Circuit - 30 amp

$

$

Not available

7

Briggs & Stratton 68868

RECEPTACLE - 120 volts, 30 amp, Twistlock Type
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 68867

RECEPTACLE - 120/240 Volts, 20 amp, Twistlock Type
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 36917

SCREW - No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 23365

WASHER (Serrated) - No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22264

LOCKWASHER - No. 8

$

$

Not available

12

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 69254

SCREW (Crimptite) 1/4"-20 x 1/2"

$

$

Currently unavailable

14

Briggs & Stratton 63036

SCREW (Crimptite) No. 8-18 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 68746

PANEL, Back

$

$

Currently unavailable

16

Briggs & Stratton 67107

REGULATOR, Voltage
(Superseded to 67107GS)

$302.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 68796

BRACKET, Battery Holddown

$

$

Currently unavailable

18

Briggs & Stratton 68795

BRACKET, Regulator

$

$

Not available

19

Briggs & Stratton 65511

BUTTON, Plug- 1/2"

$

$

Currently unavailable

20

Briggs & Stratton 36261

RIVET, Pop- 1/8"

$

$

Not available

Briggs & Stratton 68799

COVER, Connector Plug

$

$

Currently unavailable

Briggs & Stratton 37806

PLUG, Connector 120 volts, 30 amp, Twistlock
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, Connector 120/240 volts, 20 amp
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

26

Briggs & Stratton 22158

NUT, Hex - No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 22152

LOCKWASHER- No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 36935

SCREW- No. 10-32 x 3/4"

$

$

Not available
