L5000 (8876-1) - Generac 5,000 Watt Portable Generator Mounting Base No. 71716 Model L5000 Parts Diagram

5,000 Watt Portable Generator

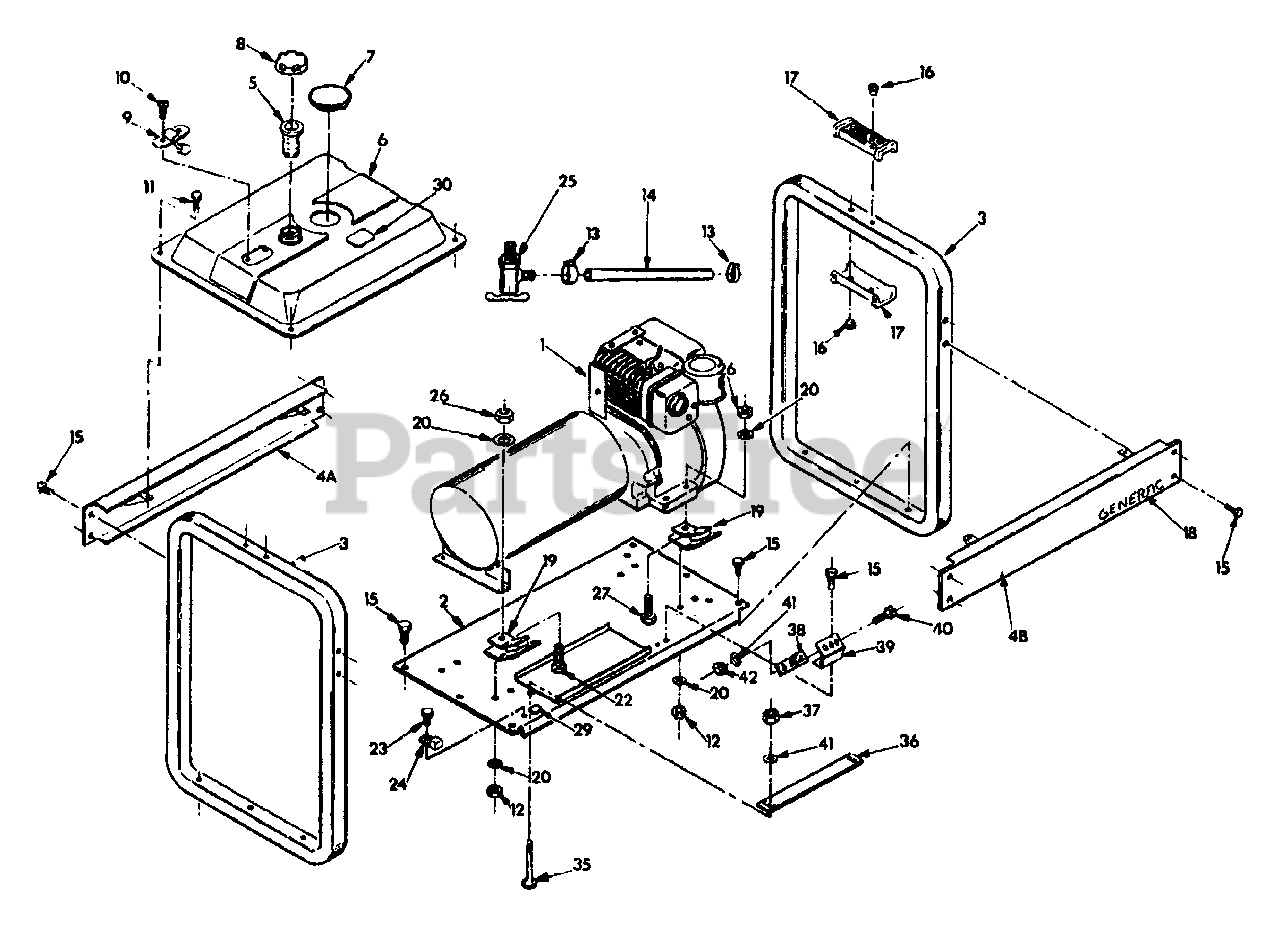

Mounting Base No. 71716 Model L5000 Parts Diagram

  • Title

1

Briggs & Stratton 68860

ENGINE- Briggs & Stratton 11 HP Manual Start

Note: (Series L5000 Units Only)

$

$

Currently unavailable

2

Briggs & Stratton 70643B

BASE, Mounting

Note: (Series L5000 Units Only)

$

$

Currently unavailable

3

Briggs & Stratton 70603

LOOP, Cradle End

$

$

Currently unavailable

4A

Briggs & Stratton 70620

SUPPORT, Fuel Tank- LH

Note: (Series L5000 & L5000E Only)

$

$

Currently unavailable

4B

Briggs & Stratton 70620A

SUPPORT, Fuel Tank- RH

Note: (Series L5000 & L5000E Only)

$

$

Currently unavailable

5

Briggs & Stratton 70630

STRAINER, Fuel Fill

$

$

Currently unavailable

6

Briggs & Stratton 69662

TANK, Fuel- 4.5 U.S. Gallons

$

$

Currently unavailable

7

Briggs & Stratton 64680B

COVER, Spark Plug Access
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 69658

CAP, Fuel Tank

$

$

Currently unavailable

9

Briggs & Stratton 66391B

GAUGE, Fuel Level

$

$

Not available

10

Briggs & Stratton 52749

SCREW- M5-0.80 x 12mm

$

$

Currently unavailable

11

Briggs & Stratton 36933

SCREW- No. 10-32 x 3/8"

$

$

Not available

12

Briggs & Stratton 45771

NUT, Hex - M8-1.25

$

$

Not available

13

Briggs & Stratton 47031C

CLAMP, Hose- 1/4" ID

$

$

Currently unavailable

14

Briggs & Stratton 47662AE

HOSE, Fuel- 1/4" ID x 12"

$

$

Currently unavailable

15

Briggs & Stratton 58442

SCREW (Crrimptite) 1/4"-20 x 1/2"

$

$

Currently unavailable

16

Briggs & Stratton 66831

RIVET- 4mm

$

$

Not available

17

Briggs & Stratton 66450

HANDLE (Plastic)

$

$

Not available

18

Briggs & Stratton 56318A

DECAL- "Generac" Logo

$

$

Currently unavailable

19

Briggs & Stratton 70642

MOUNT, Vibration
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 22129

LOCKWASHER- 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 64183

SCREW, Pan Head 5/16"-18 x 3/4"

$

$

Currently unavailable

23

Briggs & Stratton 24489

SCREW (Taptite) No. 10-32 x 3/8"

$

$

Currently unavailable

24

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

25

Briggs & Stratton 27734

VALVE, Fuel Shutoff
(Superseded to 27734GS)

$

$

Not available

26

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 70653

SCREW, Pan Head 5/16"-18 x 1-1/2"
(Superseded to 70653GS)

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 67210A

DECAL- Ground
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 70687

DECAL- "Caution!"

$

$

Currently unavailable

35

Briggs & Stratton 45000

SCREW- 1/4"-20 x 7"
(Superseded to 45000GS)

Note: (Used on electric start units only)

$11.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 44951

BRACKET, Battery Retaining

Note: (Used on electric start units only)

$

$

Currently unavailable

37

Briggs & Stratton 27529

NUT, Hex (Nylok) - 1/4"-20

Note: (Used on electric start units only)

$

$

Not available

38

Briggs & Stratton 53030

CONTACTOR, Starter
(Superseded to 53030GS)

Note: (Used on electric start units only)

$57.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 65121

BRACKET, Starter Contactor

Note: (Used on electric start units only)

$

$

Currently unavailable

40

Briggs & Stratton 22287

SCREW- 1/4"-20 x 3/4"
(Superseded to 22287GS)

Note: (Used on electric start units only)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 22097

LOCKWASHER- 1/4"
(Superseded to 5022097)

Note: (Used on electric start units only)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

Note: (Used on electric start units only)

$

$

Not available

Briggs & Stratton 68794

ROTOR

$

$

Currently unavailable

Briggs & Stratton 68749B

STATOR

$

$

Currently unavailable
