L48 KH (53AH8CTB050) - Cub Cadet 48" Tank Zero-Turn Mower, Kohler (2011) Seat & Floor Panel Assembly (2010 & Before) Parts Diagram

48" Tank Zero-Turn Mower, Kohler

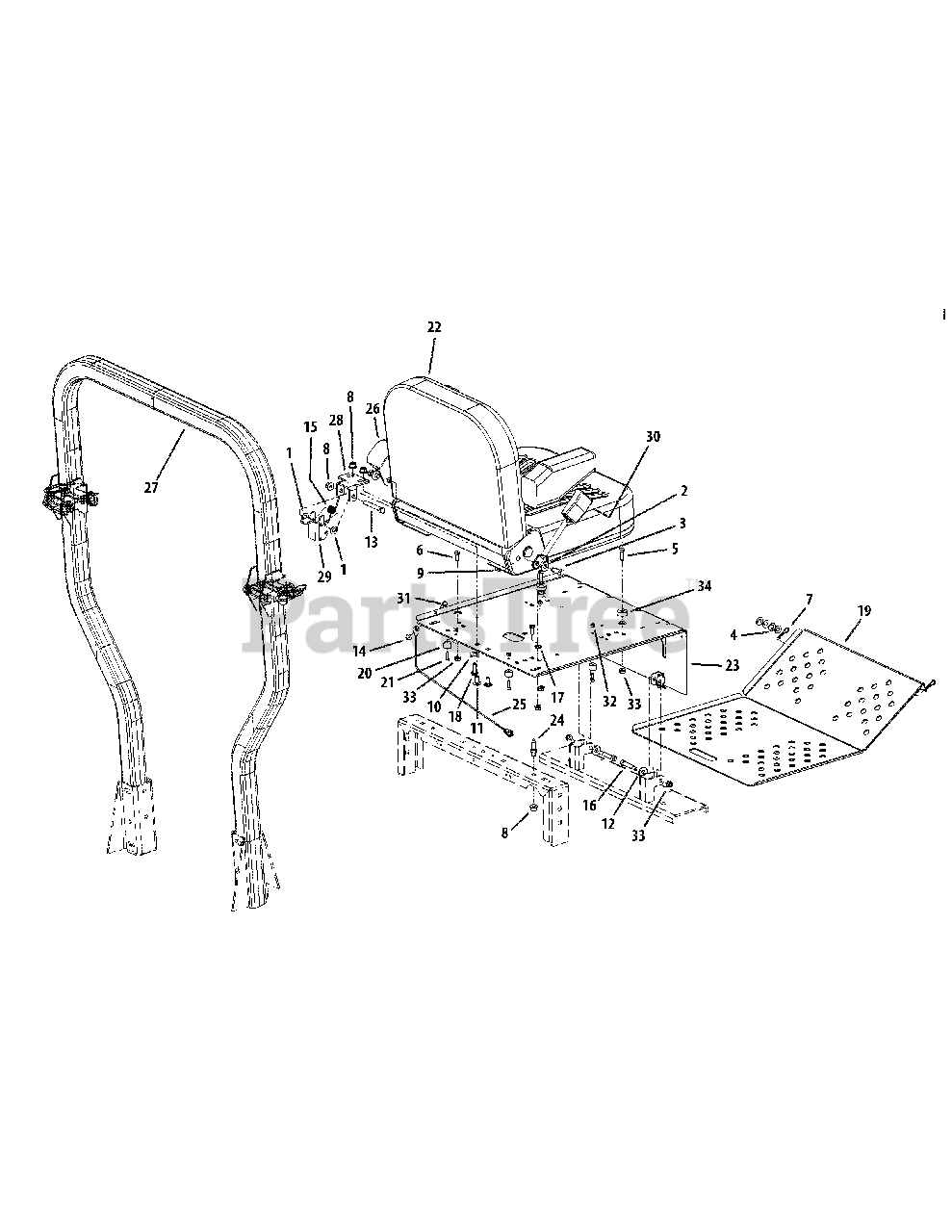

Seat & Floor Panel Assembly (2010 & Before) Parts Diagram

  • Title

1

Cub Cadet 00005530

Flat Washer, 3/8 Nylon
(Superseded to 736-04070)

$

$

Not available

2

Cub Cadet 00006168

Flat Washer, 3/8
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 19

0

3

Cub Cadet 00008724

Hex Cap Screw, 7/16-14 x 1.00

$

$

Not available

4

Cub Cadet 00012158

Washer

Note: (as needed)

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet 00013092

Hex Head Capscrew, 5/16-18 x 1.00
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00013406

Hex Head Capscrew, 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00021956

Hair Pin, 3/8-1/2
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0290

Nylock Nut, 7/16-14

$4.99

$

In Stock, Qty 11

0

10

Cub Cadet 00083192

Washer, .390 ID x 1.0 OD x .180
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3022

Hex Cap Screw 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

14

Cub Cadet 912-3027

Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 01008140P

Deck Lift Spring, Left Hand

$34.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01009459

Shoulder Bolt, .375 x 1.50

$12.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02000300

Push Retainer, 5/16

$2.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02000762

Self Tapping Screw 5/16-18 x 1.00
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 02002334-0637

Floor Panel Assembly

$

$

Not available

20

Cub Cadet 02002963

Rubber Stop with Washer
(Superseded to 735-04287)

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02002964

Standard Cap Screw, #10-24 x .75
(Superseded to 710-04868)

$3.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 02002976

Seat includes:

Note: (Grammer)

$

$

Not available

22

Cub Cadet 02005335

RH & LH Armrest Kit

Note: Not shown

$322.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02003997

Seat Switch

Note: Not shown

$242.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02003404-0637

Seat Plate Assembly

$223.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02003745

Adjustable Stud
(Superseded to 711-05676)

$

$

Not available

25

Cub Cadet 02004062P

Cable Support

$19.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02004907

Seatbelt

$

$

Not available

27

Cub Cadet 02005081

Foldable Rops Assembly includes:

$

$

Not available

27

Cub Cadet 02004323

Knob

Note: Not shown

$

$

Not available

27

Cub Cadet 02004324

Pin, Lock

Note: Not shown

$

$

Not available

28

Cub Cadet 02005147-0637

Seat Latch Bracket

$

$

Not available

29

Cub Cadet 02005148

Seat Latch

$

$

Not available

30

Cub Cadet 02005164

Seatbelt Buckle

$

$

Not available

31

Cub Cadet 710-3015

Screw, Hex, Cap, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0161

Nut, #10-24, Nylon Lock

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, only 4 left!

0

Cub Cadet 02003780

Harness Adaptor Seat

Note: Not shown

$

$

Not available
