L48 KH (53AH8CTB050) - Cub Cadet 48" Tank Zero-Turn Mower, Kohler (2011) Kohler CV730-3130 Oil Pan & Lubrication Parts Diagram

48" Tank Zero-Turn Mower, Kohler

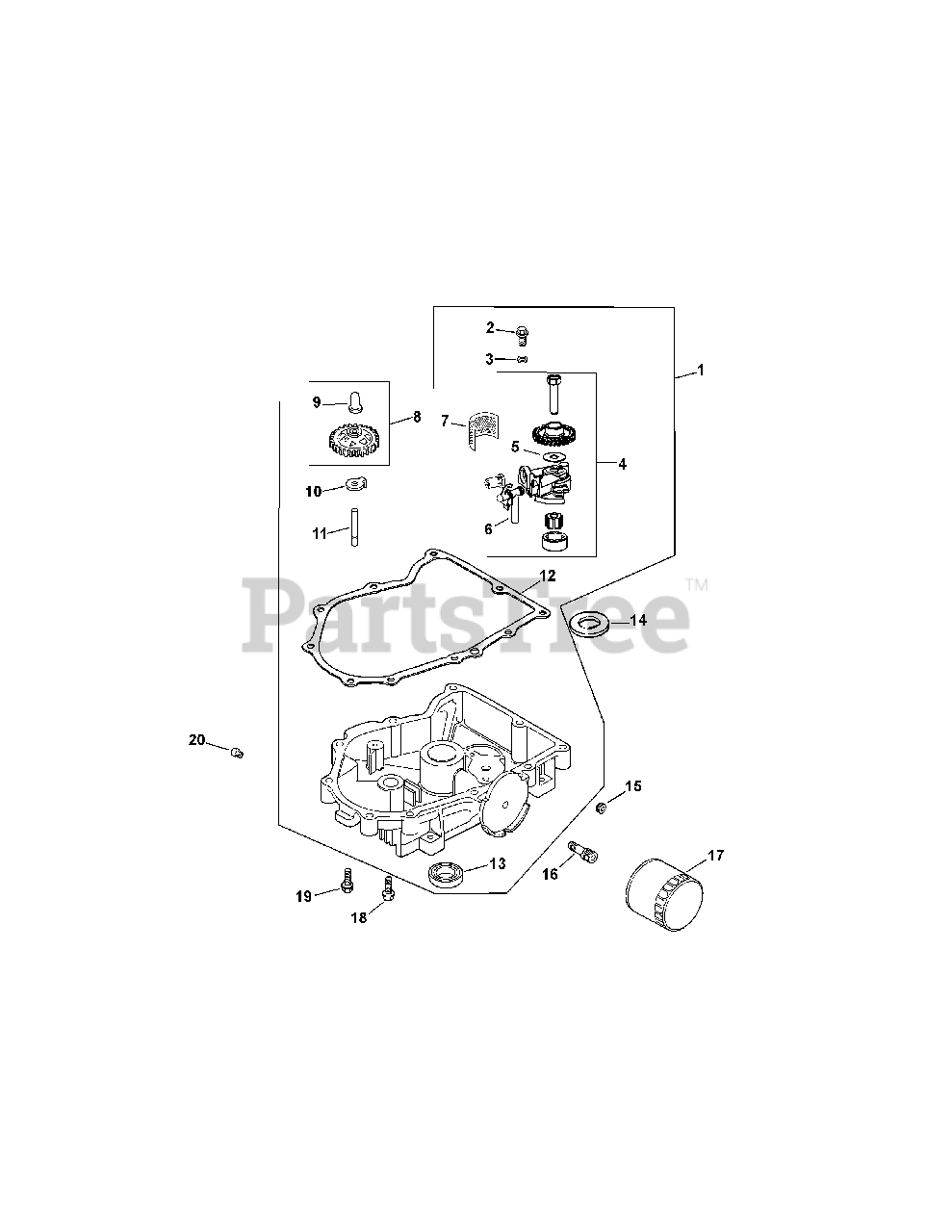

Kohler CV730-3130 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-199-21-S

KIT, OIL PAN ASSEMBLY (Includes 2-10)
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-M-645025-S

SCREW
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-M-631005

WASHER

$

$

Not available

4

Cub Cadet KH-24-393-51-S

KIT, OIL PUMP ASSEMBLY (Includes 5,6)
(Superseded to KH-24-393-53-S)

$

$

Not available

5

Cub Cadet KH-24-153-01

O-RING

$

$

Not available

6

Cub Cadet KH-24-381-11-S

TUBE, OIL PICK-UP (CV)

$

$

Not available

7

Cub Cadet KH-24-162-26-S

SCREEN, OIL

$17.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-043-12

KIT, GOVERNOR GEAR W/PIN (Includes 9)

$

$

Not available

9

Cub Cadet KH-12-380-01

PIN

$

$

Not available

10

Cub Cadet KH-24-448-01-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-12-144-02

SHAFT

$

$

Not available

12

Cub Cadet KH-24-041-54-S

GASKET, OIL PAN
(Superseded to KH-24-041-66-S)

$25.99

$

In Stock, Qty 18

0

13

Cub Cadet KH-25-032-06-S

SEAL

$10.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-422-03-S

SHIM, THRUST NOT ILLUSTRATED

$

$

Not available

15

Cub Cadet KH-25-139-62-S

PLUG, PIPE

$3.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-24-136-01

NIPPLE, OIL FILTER
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-12-050-01-S

FILTER, OIL

$13.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-086-17-S

SCREW, HEX FLANGE

$2.49

$

In Stock, Qty 7

0

19

Cub Cadet KH-24-086-17-S

SCREW, HEX F! LANGE

$2.49

$

In Stock, Qty 7

0

20

Cub Cadet KH-52-139-02

PLUG

$

$

Not available
