L48 KH (53AH8CTB050) - Cub Cadet 48" Tank Zero-Turn Mower, Kohler (2011) Kohler CV730-3130 Blower Housing & Baffles Parts Diagram

48" Tank Zero-Turn Mower, Kohler

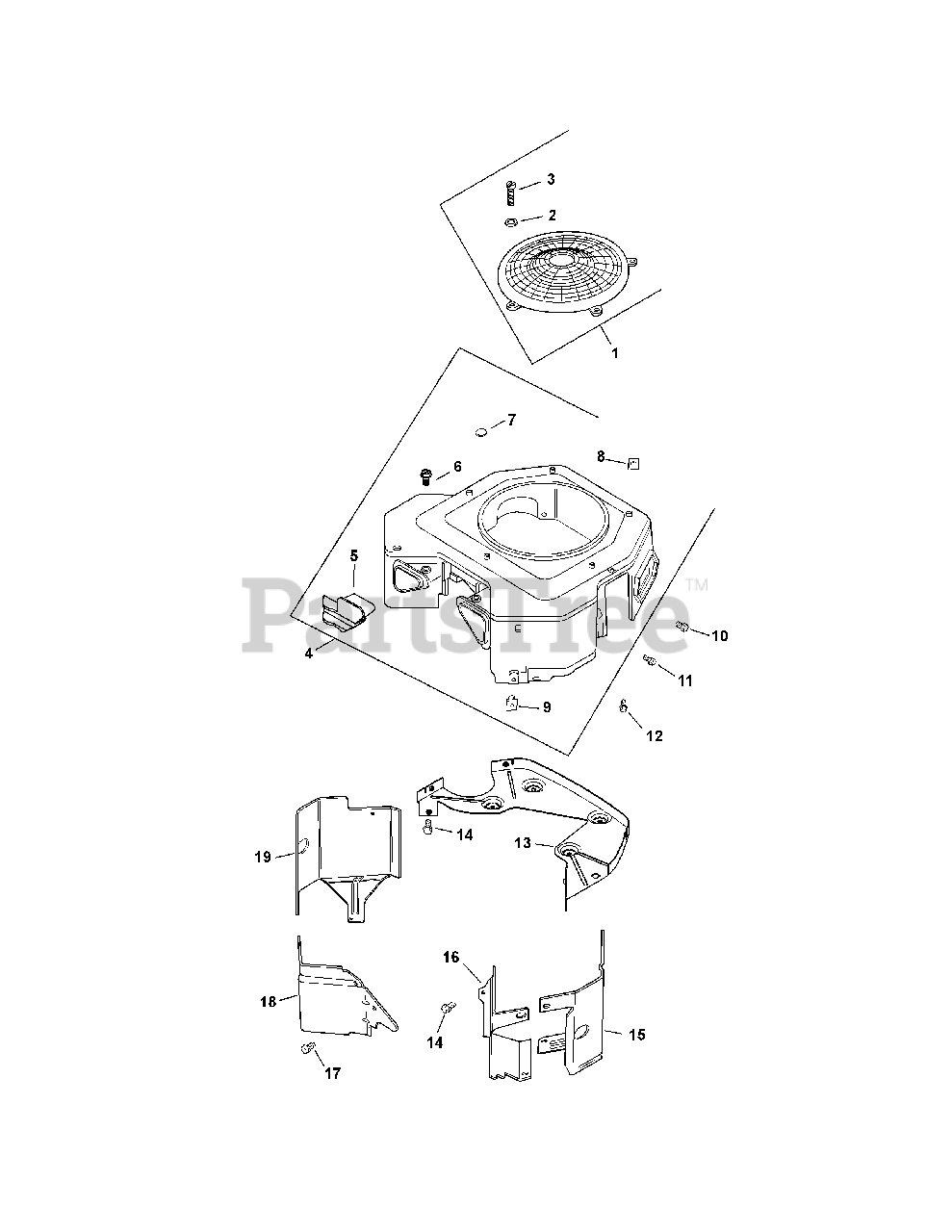

Kohler CV730-3130 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-755-81-S

KIT, FIXED GUARD

Note: (includes 2,3 & 24 113 18-S, KH-24-332-01-S)

$52.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-24-468-10

WASHER, FLAT 7/32''

$

$

Not available

3

Cub Cadet KH-24-086-35-S

SCREW, LBD SCKT PAN M5X0.8X10

$2.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-027-197-S

KIT, BLOWER HOUSING ASSEMBLY

Note: (includes 5-9 & KH-24-332-01-S)

$150.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-096-85-S

COVER, BLOWER HOUSING-MOLDED
(Superseded to KH-24-096-161-S)

$2.49

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-086-91-S

SCREW, WSH HD TAP #8-18X1/2''

$3.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-25-139-16

PLUG, BUTTON 9/16

$

$

Not available

8

Cub Cadet KH-24-100-02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-25-100-37-S

PLASTIC NUT

$2.49

$

In Stock, Qty 9

0

10

Cub Cadet KH-M-561016-S

SCREW, FLG THD F RM M5X.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-M-545016-S

SCREW, FLG THD FRM M5X0.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-545020-S

SCREW, FLG THD FRM M5X.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

13

Cub Cadet KH-24-146-53-S

KIT, BACKING PLATE
(Superseded to KH-24-146-59-S)

$15.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-M-645016-S

SCREW, FLG THD FRM M6X1.0X16

$3.99

$

In Stock, Qty 15

0

15

Cub Cadet KH-24-063-88-S

KIT, CYL BAFFEL #2 SIDE

$28.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-063-69-S

BAFFLE, VALLEY #2 CYLINDER
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-M-0545010

SCREW, FLG THD FRM M5X.8X10

$

$

Not available

18

Cub Cadet KH-24-063-60-S

BAFFLE, VALLEY #1 CYLINDER

$

$

Not available

19

Cub Cadet KH-24-063-85-S

KIT, CYL BAFFEL #1 SIDE

$17.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-154-11-S

CLIP, REPAIR (SPEED NUT) NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-332-01-S

INSERT, THREADED NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-41-037-10-S

NAMEPLATE, SERVICE NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
