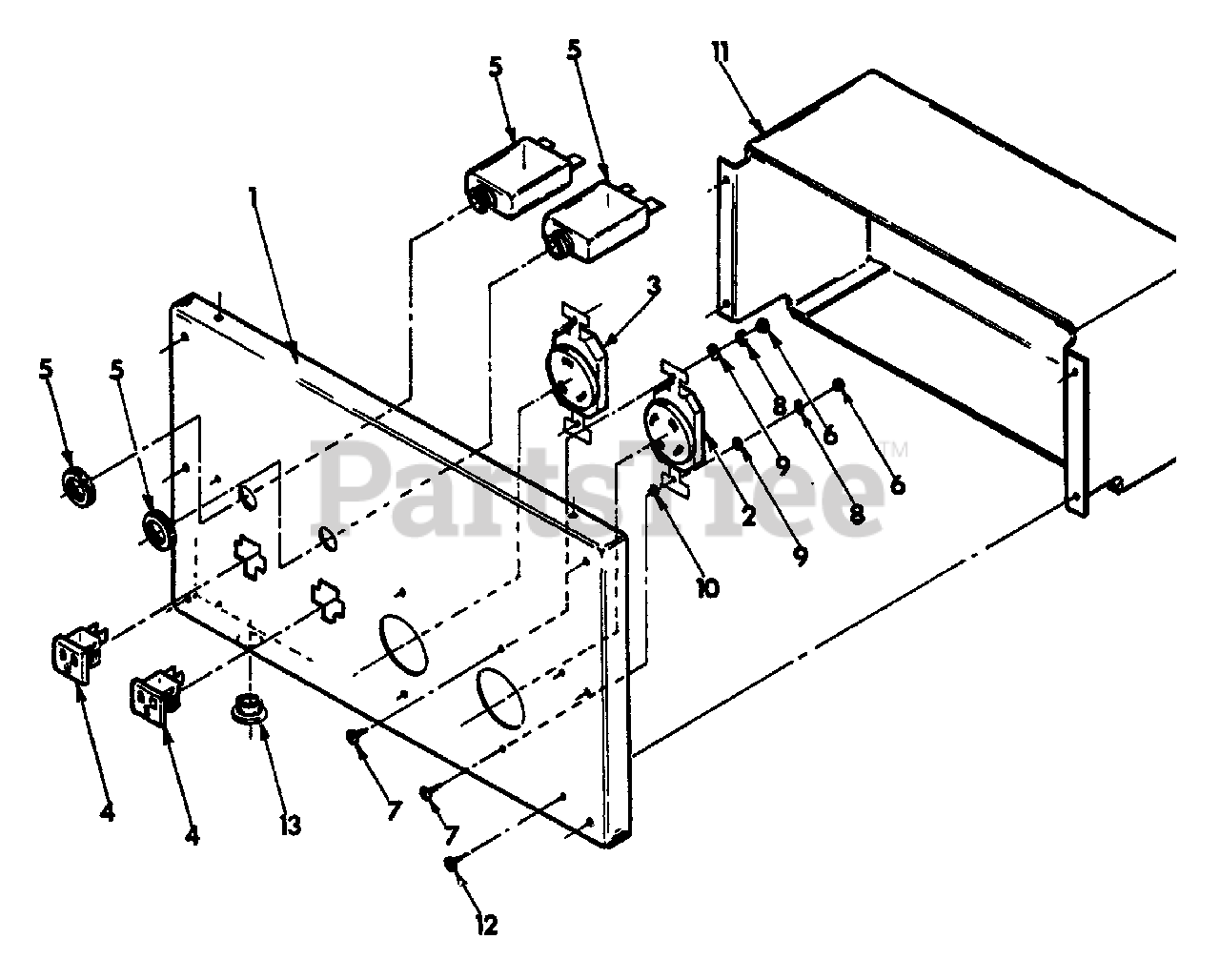

L4004 (9159-0) - Generac 4,000 Watt Portable Generator Receptacle Panel No. 77344 Parts Diagram

4,000 Watt Portable Generator

Receptacle Panel No. 77344 Parts Diagram

  • Title
1

Briggs & Stratton 77341

Receptacle Panel

$

$

Currently unavailable

2

Briggs & Stratton 77360

120/240 Volt Outlet

$

$

Currently unavailable

3

Briggs & Stratton 68868

120 V., 30 Amp Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 68818

OUTLET, 120V, 15 AMP
(Superseded to 691512)

$

$

Not available

5

Briggs & Stratton 68819

20 amp Circuit Breaker

$

$

Currently unavailable

6

Briggs & Stratton 51715

Hex Nut, M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 51676

Screw, M4-0.7 x 12
(Superseded to 51676GS)

$1.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22264

Lock Washer - M4

$

$

Not available

9

Briggs & Stratton 22985

Flatwasher - M4

$

$

Not available

10

Briggs & Stratton 67444

Lockwasher, E. Tooth - M4

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Briggs & Stratton 66827

Screw, M5-0.8 x 12

$

$

Not available

13

Briggs & Stratton 77355

Plastic Bushing

$

$

Not available
