L4004 (9159-0) - Generac 4,000 Watt Portable Generator Cradle Assembly No. 77648 Parts Diagram

4,000 Watt Portable Generator

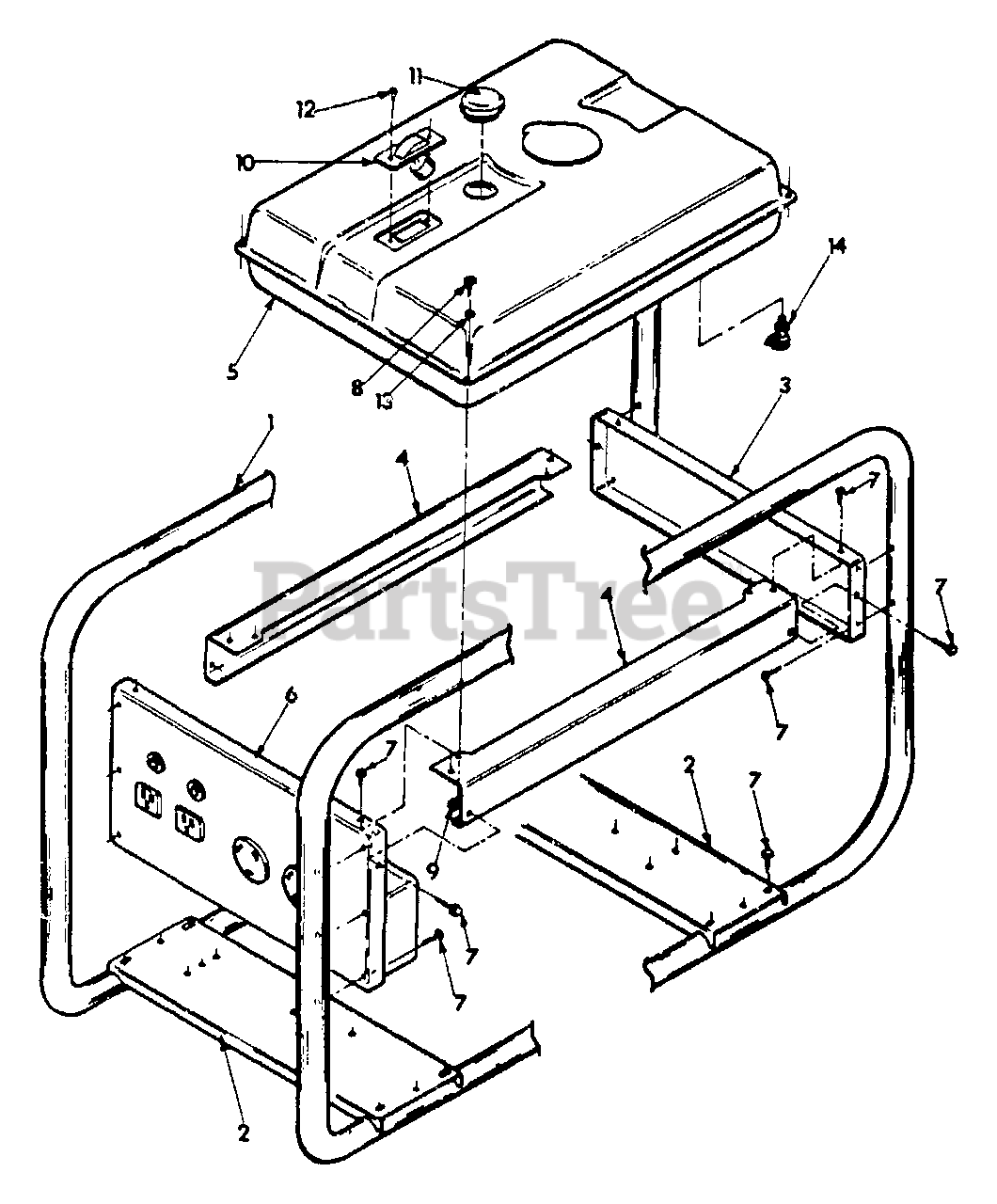

Cradle Assembly No. 77648 Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Briggs & Stratton 77338

Engine and Generator Base

$

$

Currently unavailable

3

Briggs & Stratton 77339

Cradle End Support

$

$

Currently unavailable

4

Briggs & Stratton 77340

Fuel Tank Support

$

$

Currently unavailable

5

Briggs & Stratton 73715

Fuel Tank
(Superseded to 7073715YP)

$

$

Not available

6

Briggs & Stratton 77347

Control Panel Assembly

$

$

Currently unavailable

7

Briggs & Stratton 67459

Screw - 1/4"-20 x 1/2"

$

$

Currently unavailable

8

Briggs & Stratton 42568

Capscrew, M6 - 1.00 x 20
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 52857

Nut, M6-1.00
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 66391B

Fuel Level Gauge

$

$

Not available

$

$

Currently unavailable

12

Briggs & Stratton 52749

Screw, M5-0.80 x 12mm

$

$

Currently unavailable

13

22473

Flat Washer - M6

$

$

Not available

14

Briggs & Stratton 77651

Fuel Tank Valve
(Superseded to 77651GS)

$17.99

$

Usually ships in 2-12 days

0
