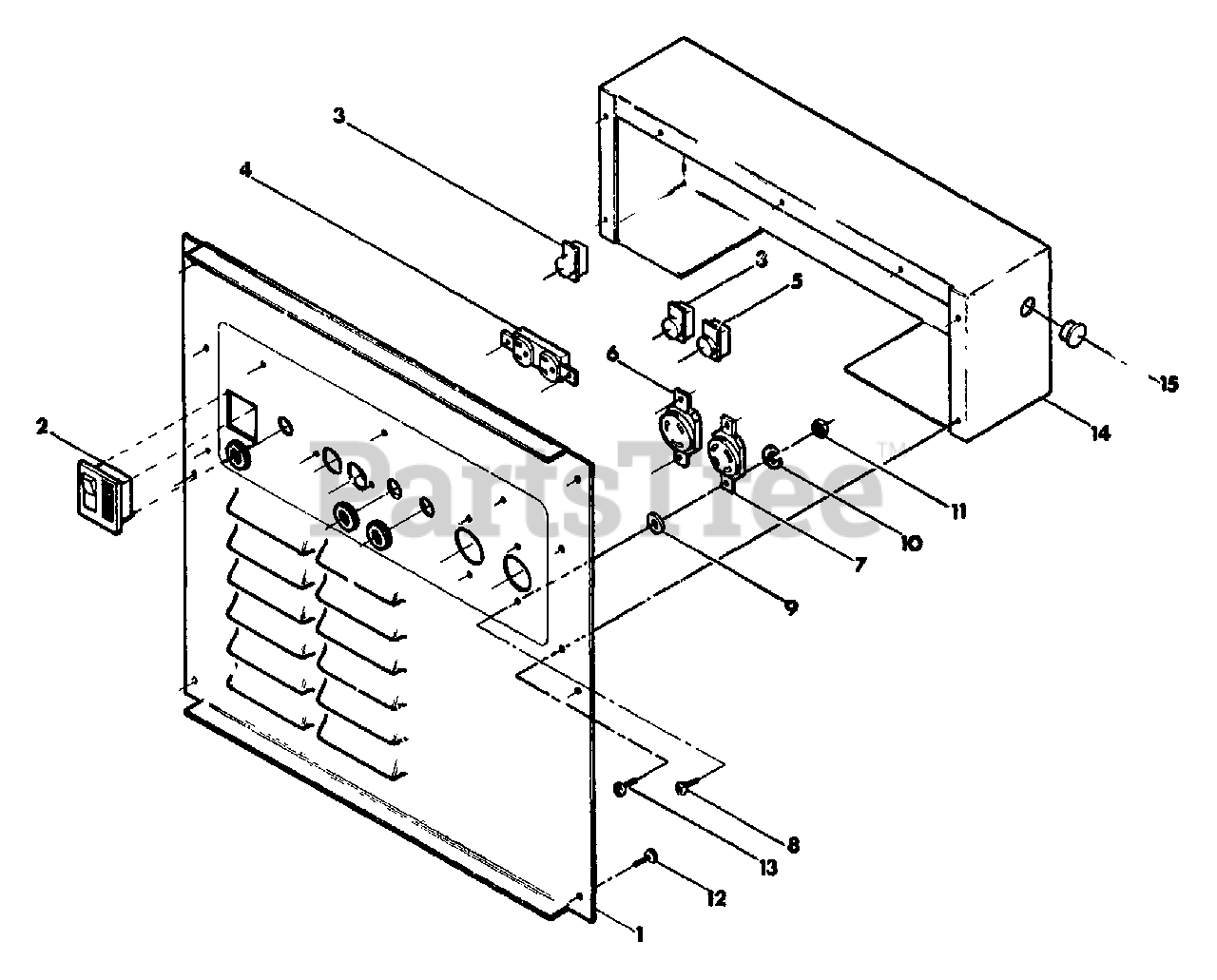

L4003 (9063-0) - Generac 4,000 Watt Portable Generator Receptacle Panel Parts Diagram

4,000 Watt Portable Generator

Receptacle Panel Parts Diagram

  • Title

1

Briggs & Stratton 68866L

PANEL, Receptacle

$

$

Currently unavailable

2

Briggs & Stratton 66817

SWITCH AND LAMP ASSY Run/Stop and AC ON
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 75207

BREAKER, Circuit - 20 amp
(Superseded to 209872GS)

$9.99

$

In Stock, only 4 left!

0

4

Briggs & Stratton 68759

RECEPTACLE - 120 Volts, 20 amp "Duplex"
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

5

75207A

BREAKER, Circuit - 30 amp

$

$

Not available

6

Briggs & Stratton 68868

RECEPTACLE - 120 volts, 30 amp (NEMA L5-30R)
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68867

RECEPTACLE - 120/240 volts (NEMA L14-20R)
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 36917

SCREW - No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 23365

WASHER, Serrated - No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 22264

LOCKWASHER - No. 8

$

$

Not available

11

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 69254

SCREW (Crimptite) 1/4"- 20 x 1/2"

$

$

Currently unavailable

13

Briggs & Stratton 63036

SCREW (Crimptite) No. 8-18 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 68746A

PANEL, Back

$

$

Currently unavailable

15

Briggs & Stratton 65511

PLUG BUTTON - 1/2"

$

$

Currently unavailable

15

Briggs & Stratton 37806

PLUG, Connector - 120 volts, 30 amp
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 43483

PLUG, Connector - 120/240 volts, 20 amp
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
