L4000E (8866-2) - Generac 4,000 Watt Portable Generator Wheel Kit Parts Diagram

4,000 Watt Portable Generator

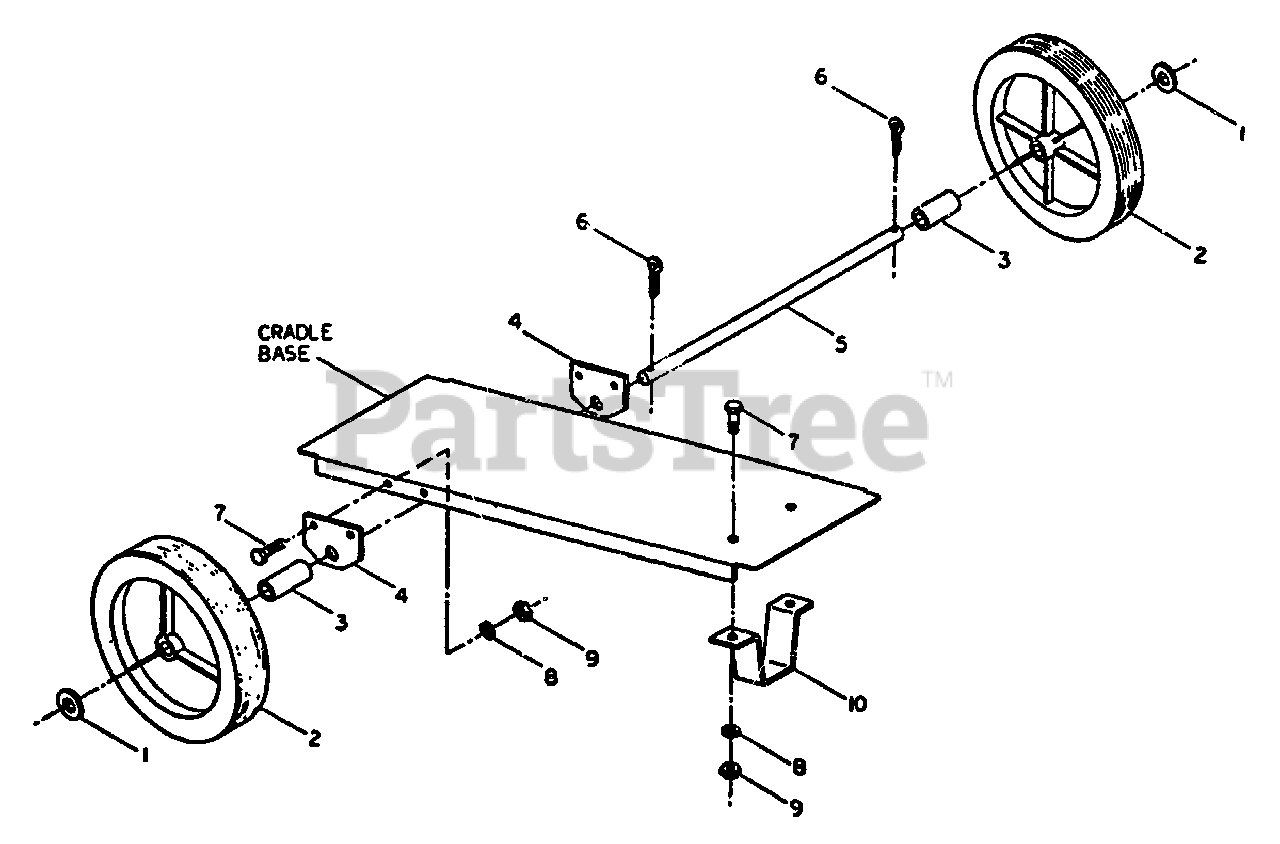

Wheel Kit Parts Diagram

  • Title

1

Briggs & Stratton 22304

FLATWASHER-1/2"
(Superseded to 22304GS)

$3.49

$

In Stock, Qty 20+

0

2

Briggs & Stratton 52597

WHEEL-10" Diameter

$

$

Currently unavailable

3

Briggs & Stratton 39712B

SPACER, Wheel-1" long

$

$

Currently unavailable

4

Briggs & Stratton 67212

BRACKET, Axle

$

$

Currently unavailable

5

Briggs & Stratton 60564C

AXLE- 1/2" x 19.25" long

$

$

Currently unavailable

6

Briggs & Stratton 22268

PIN, Cotter-3/32"
(Superseded to 22268GS)

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22287

CAPSCREW, Hex Head 1/4"-20 x 3/4"
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22097

LOCKWASHER- 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

10

Briggs & Stratton 68885

LEG, Support

$

$

Currently unavailable
