L2400 (9158-0) - Generac 2,400 Watt Portable Generator Cradle Assembly No. 77390 Parts Diagram

2,400 Watt Portable Generator

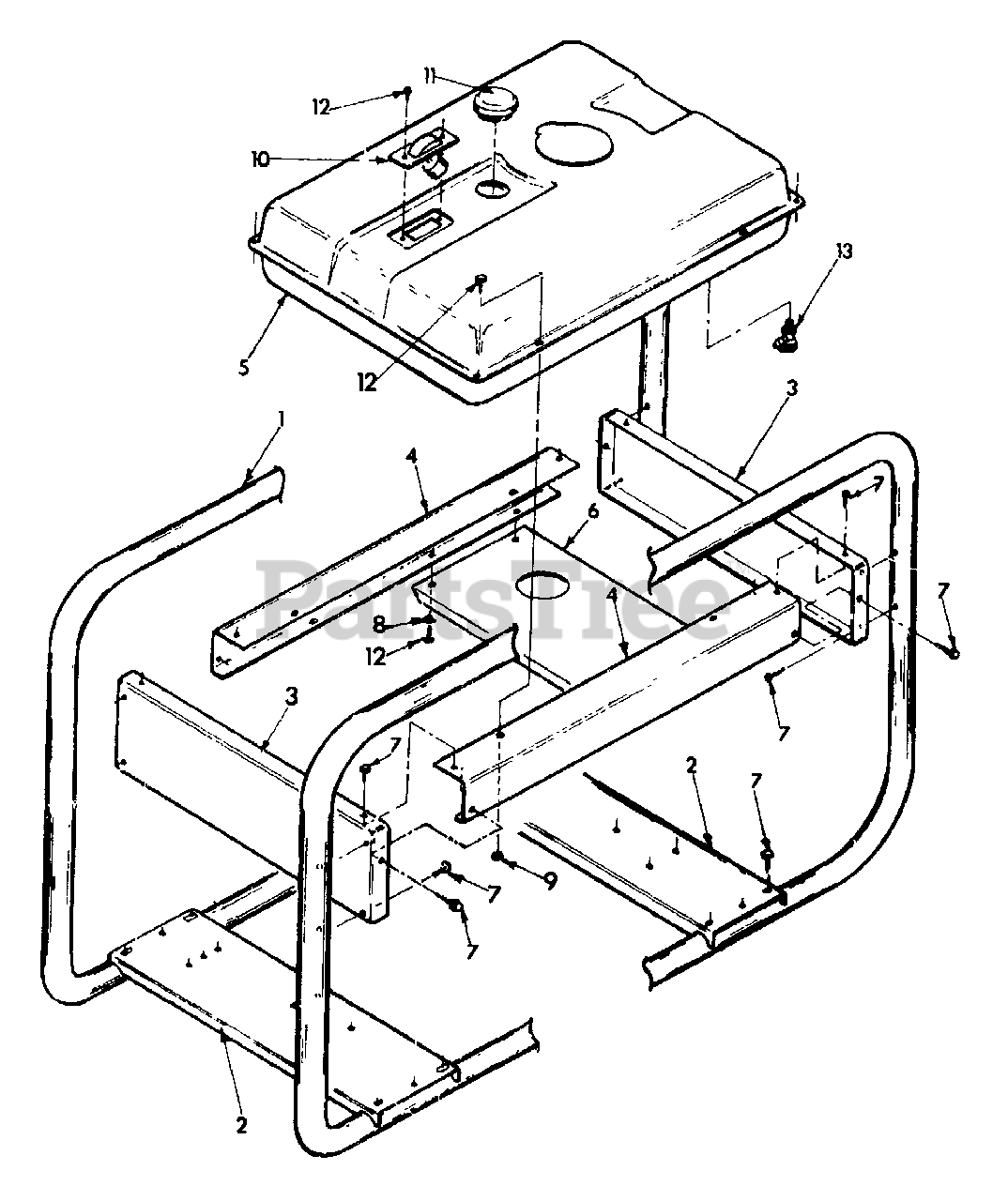

Cradle Assembly No. 77390 Parts Diagram

  • Title

1

Briggs & Stratton 77375

CRADLE, TUBE

$

$

Currently unavailable

2

Briggs & Stratton 77338

ENGINE AND GENERATOR BASE

$

$

Currently unavailable

3

Briggs & Stratton 77339

CRADLE END SUPPORT

$

$

Currently unavailable

4

Briggs & Stratton 77378

FUEL TANK SUPPORT

$

$

Not available

5

Briggs & Stratton 77353

FUEL TANK
(Superseded to 7077353YP)

$14.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 77376

HEAT SHIELD
(Superseded to 7027710YP)

$59.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 67459

SCREW, 1/4"-20 X 1/2"

$

$

Currently unavailable

8

Briggs & Stratton 49226

LOCK WASHER-M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 52856

NUT, M5-0.8
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 66391B

FUEL LEVEL GAUGE

$

$

Not available

11

Briggs & Stratton 69658

FUEL CAP

$

$

Currently unavailable

12

Briggs & Stratton 52749

SCREW, M5-0.80 x 12MM

$

$

Currently unavailable

13

Briggs & Stratton 77651

FUEL TANK VALVE
(Superseded to 77651GS)

$17.99

$

Usually ships in 2-12 days

0
