L - Simplicity Two-Wheeled Tractor, 1.5hp Disc Harrow Group (3739I05) Parts Diagram

Two-Wheeled Tractor, 1.5hp

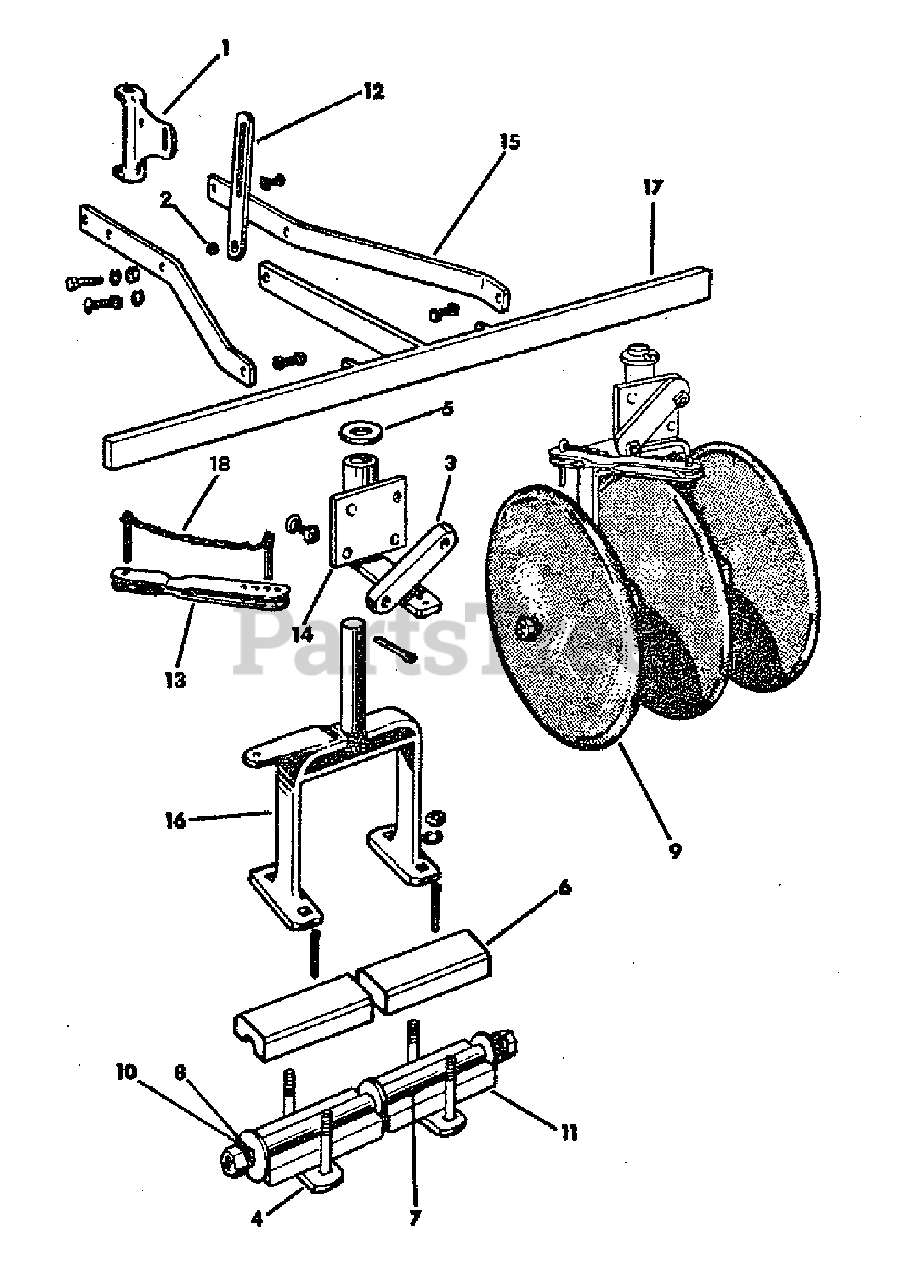

Disc Harrow Group (3739I05) Parts Diagram

  • Title
1

Simplicity SSA7

END, Draw Bar

$

$

Not available

2

Simplicity SSC-A4

SPACER, Adjustment Link

$

$

Not available

3

Simplicity SSC-A8

CLIP, Clamp

$

$

Not available

4

Simplicity SSC-A13

CLIP, Bearing

$

$

Not available

5

Simplicity SSC-A14

POST WASHER

$

$

Not available

6

Simplicity SSC-A15

BLOCK, Upper Bearing

$

$

Not available

7

Simplicity SSC-A16

DISC SPACER

$

$

Not available

8

Simplicity SSC-A18

AXLE, 8 Disc

$

$

Not available

9

Simplicity SSC-A19

BLADE, 12" Disc

$

$

Not available

10

Simplicity SSC-A20

AXLE, 6 Disc

$

$

Not available

11

Simplicity SSC-A21

BLOCK, Lower Bearing

$

$

Not available

12

Simplicity SSC-A24

LINK, Tilt Adjusting

$

$

Not available

13

Simplicity SSC-AX1

STRAP ASSEMBLY, Angle Adjusting

$

$

Not available

14

Simplicity SSC-BX1

CLAMP ASSEMBLY

$

$

Not available

15

$

$

Not available

16

Simplicity SSC-CX2

ARCH ASSEMBLY

$

$

Not available

17

Simplicity SSC-CX3

BAR ASSEMBLY, Cross

$

$

Not available

18

CHAIN, 6"

$

$

Not available
