L 8565 E (1694984) - Simplicity 26" Snow Thrower, 8.5hp Traction Drive Group - Standard Parts Diagram

26" Snow Thrower, 8.5hp

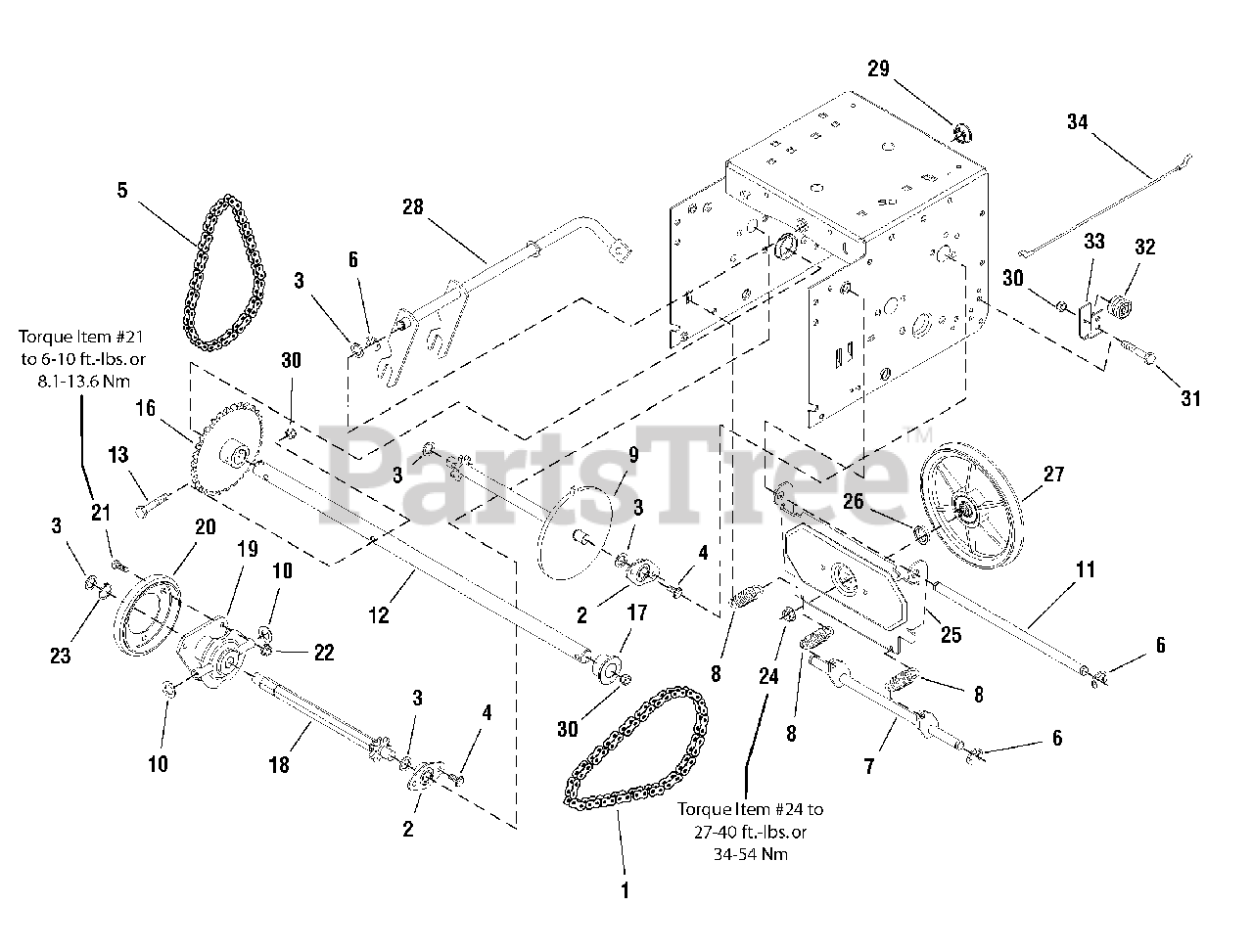

Traction Drive Group - Standard Parts Diagram

  • Title

1

Simplicity 579851MA

CHAIN, Roller

$21.99

$

In Stock, Qty 15

0

2

Simplicity 334163MA

RETAINER & BUSHING ASSEMBLY

$11.99

$

In Stock, only 2 left!

0

3

Simplicity 579858MA

WASHER

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1924856SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 579868MA

CHAIN, Roller

$20.99

$

In Stock, Qty 17

0

6

Simplicity 11X30MA

RETAINER, Ring 7/16

$4.49

$

In Stock, Qty 11

0

7

Simplicity 1502105YZMA

SPRING LINK ASSEMBLY STANDARD

$33.99

$

Usually ships in 2-12 days

0

8

Simplicity 165X112MA

SPRING, Extension
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 20+

0

9

Simplicity 1501090MA

SPROCKET, Set
(Superseded to 1501237MA)

$80.99

$

In Stock, only 3 left!

0

10

Simplicity 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1501092YZMA

AXLE, Swing Plate

$12.99

$

Usually ships in 2-12 days

0

12

Simplicity 1501563MA

AXLE
(Superseded to 1501563YZMA)

$69.99

$

In Stock, only 4 left!

0

13

Simplicity 01X193MA

BOLT, Hex 1/4-20 x 1-3/4
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

16

Simplicity 1501089MA

SPROCKET, Axle

$42.99

$

In Stock, Qty 7

0

17

Simplicity 1501114MA

BEARING, Axle D-Hole

$11.99

$

In Stock, Qty 20+

0

18

Simplicity 1501100MA

HEX SHAFT & SPROCKET ASSEMBLY

$

$

Not available

19

Simplicity 337029MA

HUB, Friction Wheel & Bearing
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

20

Simplicity 1501435MA

WHEEL, Friction

$27.99

$

In Stock, Qty 20+

0

21

Simplicity 1921959SM

CAPSCREW, Hex Head 1/4-20 x 5/8 G5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

22

Simplicity 2828372SM

NUT, Hex KEPS 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

23

Simplicity 579859MA

RING, Retaining, Extension

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 15X114MA

NUT, FlangeLock 38-24

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 1501057YZMA

PLATE, Swining

$37.99

$

In Stock, only 1 left!

0

26

Simplicity 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 10

0

27

Simplicity 1501115MA

FRICTION PULLEY ASSEMBLY

$

$

Not available

28

Simplicity 1501110YZMA

SPEED SELECT ASSEMBLY

$50.99

$

In Stock, only 1 left!

0

29

Simplicity 579944MA

BEARING, Flange

$15.99

$

Usually ships in 2-12 days

0

30

Simplicity 1920397SM

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1922837SM

CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

32

Simplicity 579860MA

SPOOL CABLE, Auger Control

$5.99

$

In Stock, Qty 7

0

33

Simplicity 1501059YZMA

BRACKET, Cable Spool

$3.49

$

In Stock, only 1 left!

0

34

Simplicity 1501122MA

CABLE, Front Drive Lower All

$8.49

$

In Stock, Qty 9

0
