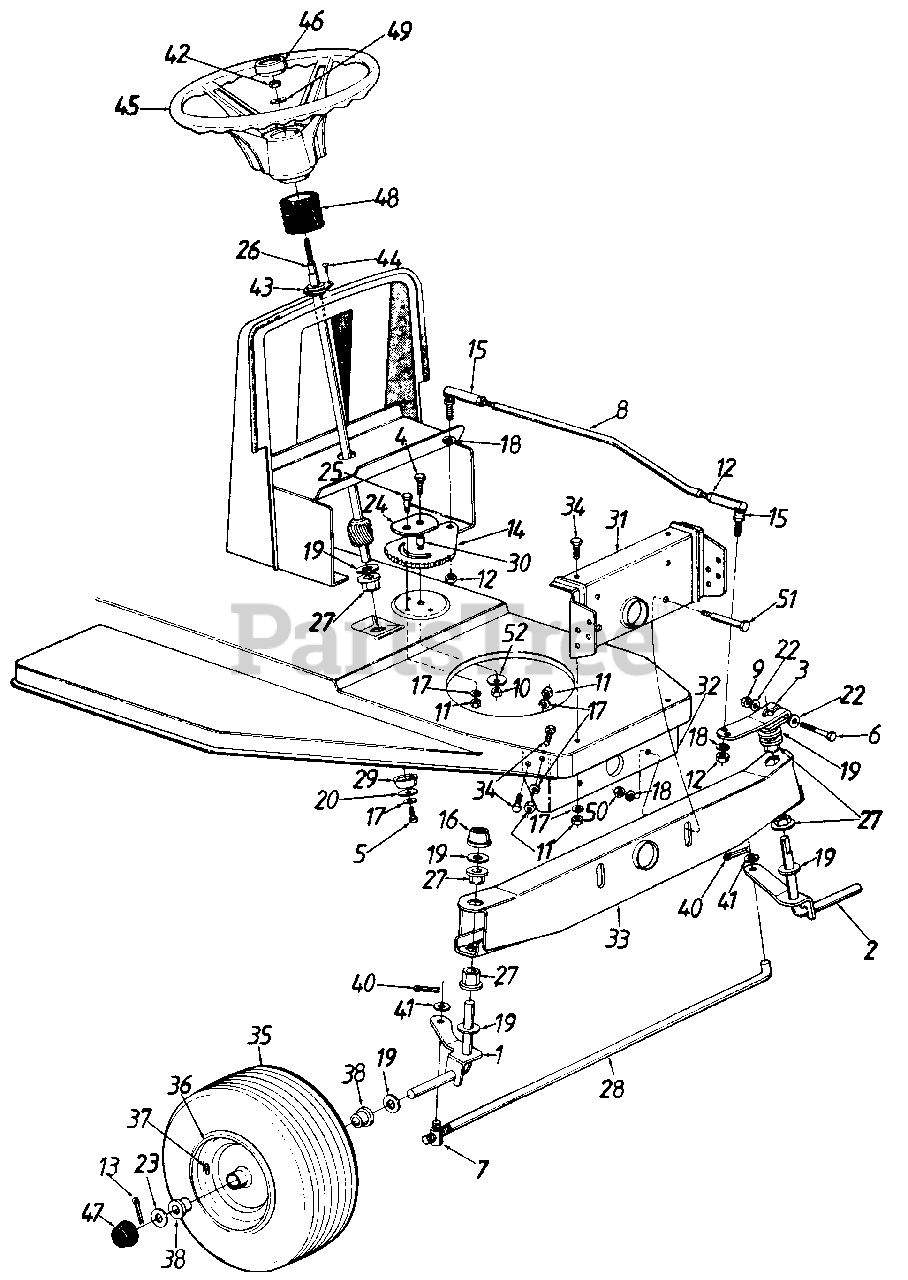

L-8 (131-317D190) - White Outdoor 32" Lawn Tractor (1991) Steering Assembly Parts Diagram

32" Lawn Tractor

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 17584

Front Axle Ass'y.-R.H.
(Superseded to 97584A-0637)

$76.99

$

In Stock, only 4 left!

0

2

White Outdoor 17585

Front Axle Ass'y.-L.H.
(Superseded to 97585A-0637)

$

$

Not available

3

White Outdoor 16481

Steering Arm
(Superseded to 983-0055-0637)

$47.99

$

In Stock, only 1 left!

0

4

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1" Lg.*
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0538

Hex Bolt 5/16-18 x .62"

Note: (Spec.)

$4.49

$

In Stock, Qty 9

0

6

White Outdoor 710-0772

Hex Bolt 5/16-24 x 2" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

White Outdoor 711-0723

Ferrule
(Superseded to 911-0723A)

$15.99

$

Usually ships in 3-6 days

0

8

White Outdoor 711-0809

Steering Drag Link

$

$

Not available

9

White Outdoor 712-0237

Hex L-Nut 5i16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

10

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

11

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

12

White Outdoor 712-0711

Hex Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 714-0470

Cotter Pin 1/8 Dia.

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 717-0622A

Steering Gear Segment
(Superseded to 717-0622C)

$53.99

$

In Stock, only 2 left!

0

15

White Outdoor 723-3018

Drag Link Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

16

White Outdoor 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

17

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0187

Fl-Wash. .64" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 736-0343

Fl-Wash. .340" I.D. x 1.125"

$4.49

$

In Stock, Qty 7

0

22

White Outdoor 736-0271

Spr. Wash. .32 I.D. x .62
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

23

White Outdoor 736-0285

Fl-Wash. .635 I.D. x 1.585

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 17198

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

25

White Outdoor 738-0141

Shld. Bolt .437 Dia. x .350
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

26

White Outdoor 738-0730

Steering Shaft

$108.99

$

In Stock, only 1 left!

0

27

White Outdoor 741-0225

Hex Flange Brg. .634 Dia.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

28

White Outdoor 747-0759

Tie Rod 19.1 Lg.

$

$

Not available

29

White Outdoor 750-0532

Spacer .985 I.D.
(Superseded to 950-0532)

$

$

Not available

30

White Outdoor 750-0535

Spacer .380 I.D.
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

31

16657

Front Pivot Bar Support Brkt.

$

$

Not available

32

16658

Rear Pivot Bar Support Brkt.

$

$

Not available

33

White Outdoor 17127

Pivot Bar Ass'y.

$

$

Not available

34

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 734-1422

Front Wheel Ass'y. Comp. 1 3 x 6

$

$

Not available

White Outdoor 734-1421

Tire Only

Variations

White Outdoor 734-1421-0901

No Longer Available - Carlisle (0901)

$

$

Not available

White Outdoor 734-1421-0902

No Longer Available - Dico (0902)

$

$

Not available

White Outdoor 734-1421-0905

No Longer Available - Duro (0905)

$

$

Not available

$

$

36

White Outdoor 734-0997A

Wheel Rim Ass'y. Only
(Superseded to 753-0838-0662)

$

$

Not available

White Outdoor 737-0146

Grease Fitting

$5.49

$

Usually ships in 3-6 days

0

37

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 741-0487

Flange Bearing .632 I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

40

White Outdoor 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

41

White Outdoor 736-0185

Fl-Wash. .406" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

43

White Outdoor 741-0501

Steering Column Brg.
(Superseded to 941-0501)

$

$

Not available

44

White Outdoor 710-0837

Cr-Sunk Scr. #10 x 5/8" Lg.

$4.49

$

In Stock, Qty 5

0

45

White Outdoor 731-0805

Steering Wheel
(Superseded to 931-0806A)

$

$

Not available

46

White Outdoor 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

47

White Outdoor 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

48

White Outdoor 731-0559

Bellow Steering Column
(Superseded to 731-0559B)

$

$

Not available

49

White Outdoor 736-0242

Bell-Wash. .345 I.D. x .88

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

51

White Outdoor 738-0728

Shld. Bolt 1/2" Dia. x 2.32"

$

$

Not available

52

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.4" O.D.
(Superseded to 936-0356)

$

$

Not available
