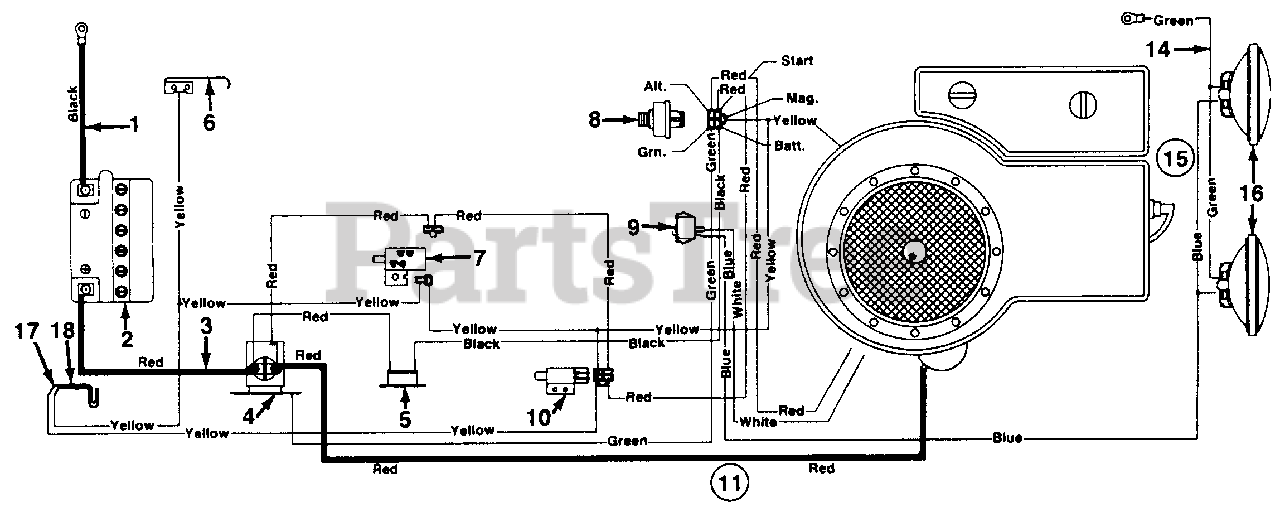

L-8 (131-317D190) - White Outdoor 32" Lawn Tractor (1991) Electrical System Parts Diagram

32" Lawn Tractor

Electrical System Parts Diagram

  • Title

1

White Outdoor 725-0976A

Ground Wire

$

$

Not available

2

White Outdoor 725-0514A

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

3

White Outdoor 725-0926

Electric Wire-8.0" Lg.

$

$

Not available

4

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

5

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

6

White Outdoor 732-0758

Spring Switch
(Superseded to 753-0580)

Note: (Reverse)

$

$

Not available

7

White Outdoor 725-0803B

Safety Switch

Note: (Deck)

$33.99

$

In Stock, only 1 left!

0

8

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

9

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

10

White Outdoor 725-3169

Safety Switch
(Superseded to 925-04039)

Note: (Clutch)

$24.99

$

In Stock, Qty 8

0

11

White Outdoor 725-1475

Harness

$

$

Not available

14

White Outdoor 725-0916A

Ground Wire

$

$

Not available

15

White Outdoor 725-1477

Headlight Harness

$

$

Not available

16

White Outdoor 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

17

White Outdoor 725-1303

Safety Switch
(Superseded to 925-1303)

Note: (Seat)

$6.49

$

In Stock, Qty 7

0

18

White Outdoor 725-1439

Safety Switch

Note: (Seat)

$8.49

$

In Stock, Qty 10

0
