L-8 (130-317D190) - White Outdoor 32" Lawn Tractor (1990) Deck Assembly Parts Diagram

32" Lawn Tractor

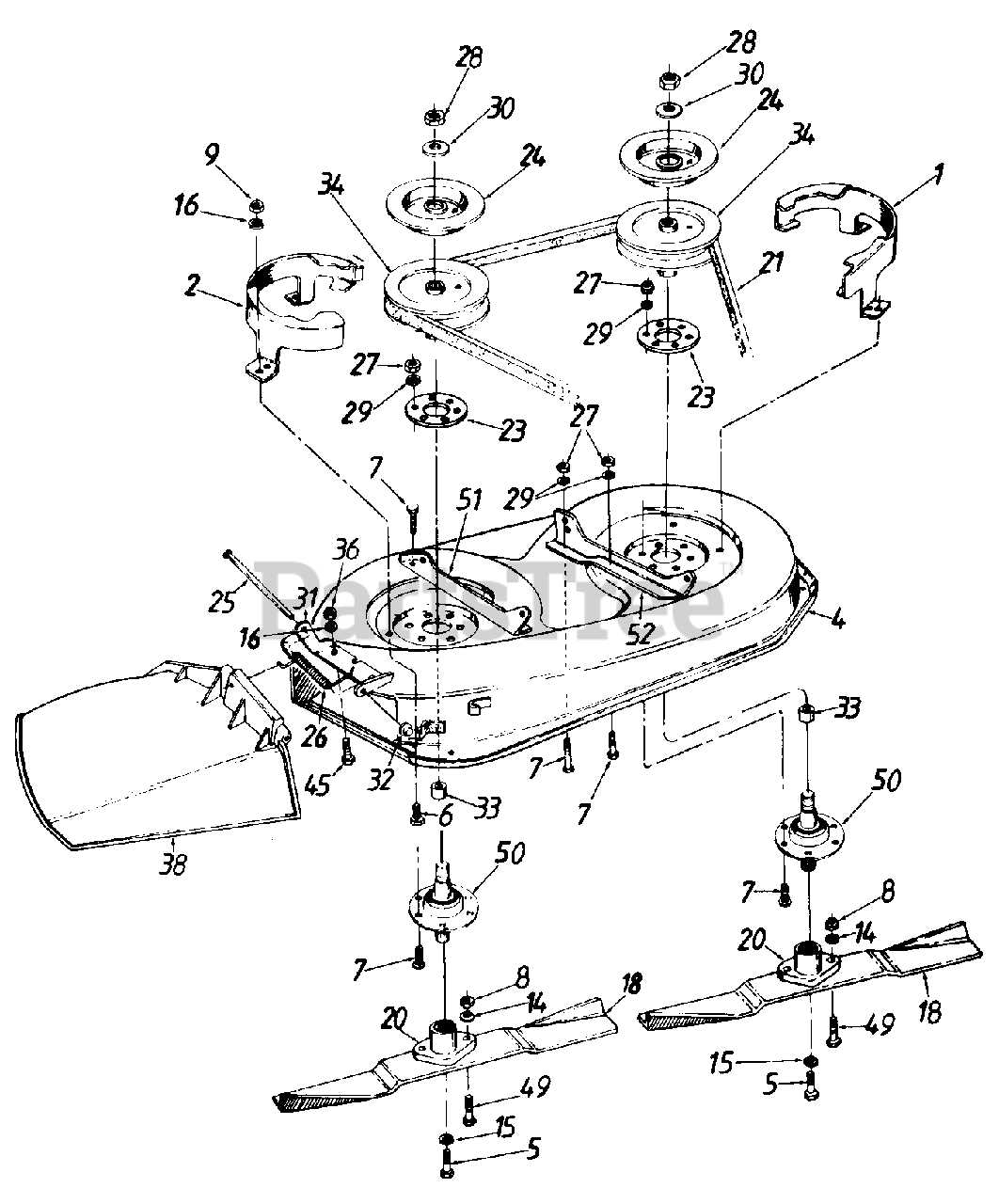

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 16607

Belt Guard Deck-L.H.

Variations

White Outdoor 16607-0637

GUARD-BELT-LH - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 16608A

Belt Guard Deck-R.H.

Variations

White Outdoor 16608A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 17750

32" Deck Ass'y.
(Superseded to 97750A)

Variations

White Outdoor 17750-0637

DECK ASSY-32" - POWDER BLACK (0637)

$

$

Not available

$

$

813-03104

32" Deck Ass'y. Comp.

Note: (Service Only)

$

$

Not available

5

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

6

White Outdoor 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

7

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

8

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

9

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

14

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 9

0

16

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 742-0487

High-Lift Blade

$

$

Not available

20

White Outdoor 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

21

White Outdoor 754-0151

V-Belt

$

$

Not available

23

White Outdoor 09164A

Reinforcement Plate
(Superseded to 09164A-0637)

Variations

White Outdoor 09164A-0637

Reinforcement Plate - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

24

White Outdoor 09322

Brake Disc

$

$

Not available

25

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

Usually ships in 3-6 days

0

26

White Outdoor 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

27

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

28

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

29

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

31

White Outdoor 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

32

White Outdoor 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

33

White Outdoor 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 756-0486

5" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

36

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

38

White Outdoor 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

45

White Outdoor 710-0255

Truss-Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.0" Lg.

Note: (Special)

$4.49

$

In Stock, Qty 5

0

50

White Outdoor 717-0900

Blade Spindle Complete
(Superseded to 917-0900A)

$

$

Not available

51

17692

Deck Bracket-R.H.

$

$

Not available

52

White Outdoor 17693

Deck Bracket-L.H.

$

$

Not available
