L 421 P - Husqvarna 21" Walk-Behind Mower (Original) ENGINE Parts Diagram

21" Walk-Behind Mower

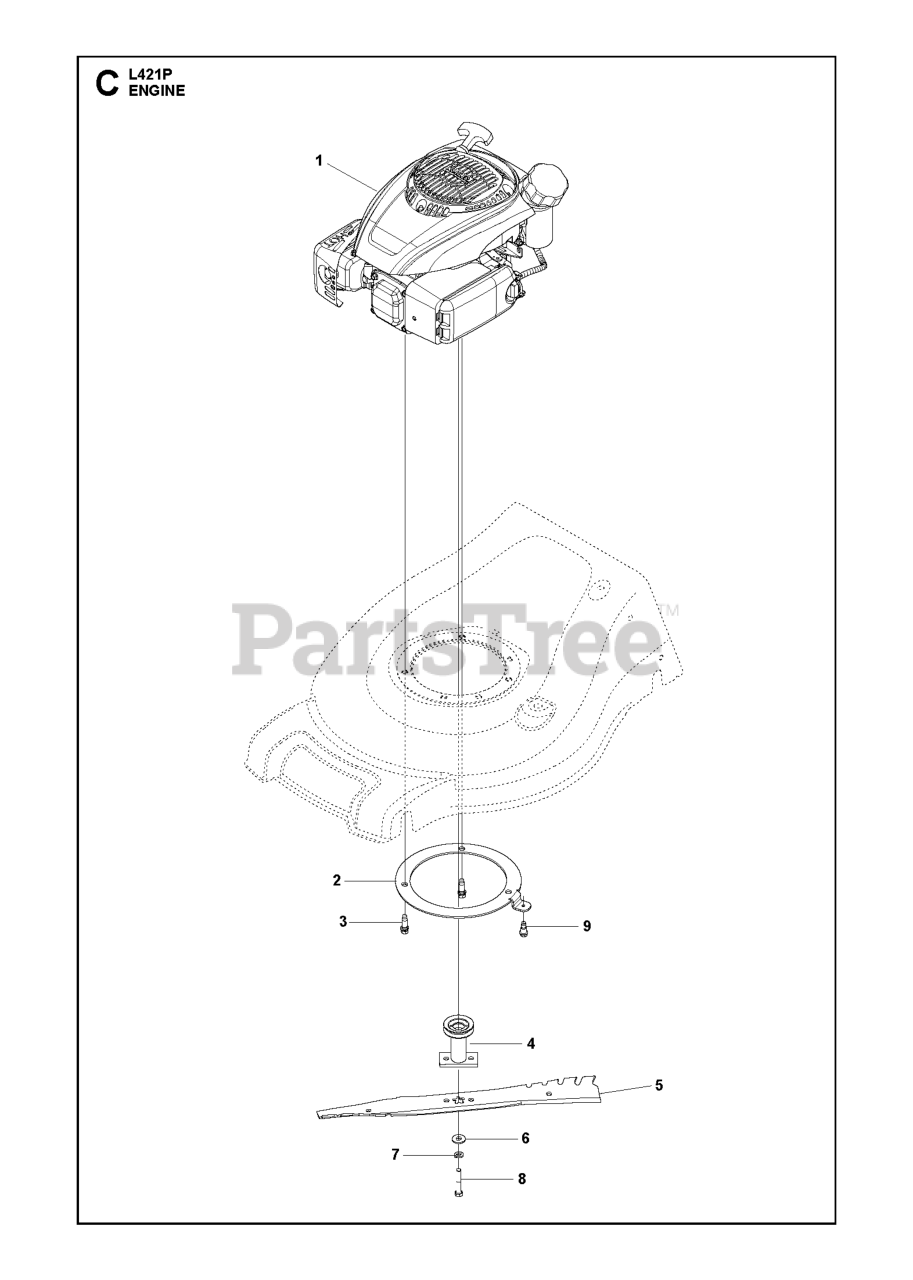

ENGINE Parts Diagram

  • Title

8

Husqvarna 582388401

BOLT.ENGINE.PULLEY

Note: Hex Head Machine Screw

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532150406

BOLT 3/8-16X1-1/8

Note: For 96133003300, 3/8-16

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 586859602

BLADE.21.REAPER.WO/NOTCHES
(Superseded to 586859604)

Note: High Lift

$17.99

$

In Stock, Qty 20+

0

9

Husqvarna 581726101

BOLT SHOULDER_1/4-20_TRILOB

Note: Shoulder, 1/4-20 Tri-lobe

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 590044201

ADAPTER.BLD.25M.2P.AW/RW/21EFF

Note: "7/8 21"""

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 591101102

MOUNTING PLATE BOTTOM ENGINE R

Note: For 96133003300, Bottom Engine Ring

$

$

Not available

7

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

Note: 3/8, Helical Spring

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532150406

BOLT 3/8-16X1-1/8

Note: For 96133003301, Engine, 3/8-16

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 591101102

MOUNTING PLATE BOTTOM ENGINE R

Note: For 96133003301, Engine

$

$

Not available

6

Husqvarna 532851074

WASHER,HARDEN

Note: Hardened

$4.99

$

In Stock, only 4 left!

0

1

000000000

Note: Kohler HD 775 For service and parts 1-800-544-2444

$

$

Not available
