L 421 P (961330033-01) - Husqvarna 21" Walk-Behind Mower (2018-09) MOWER DECK / CUTTING DECK Parts Diagram

21" Walk-Behind Mower

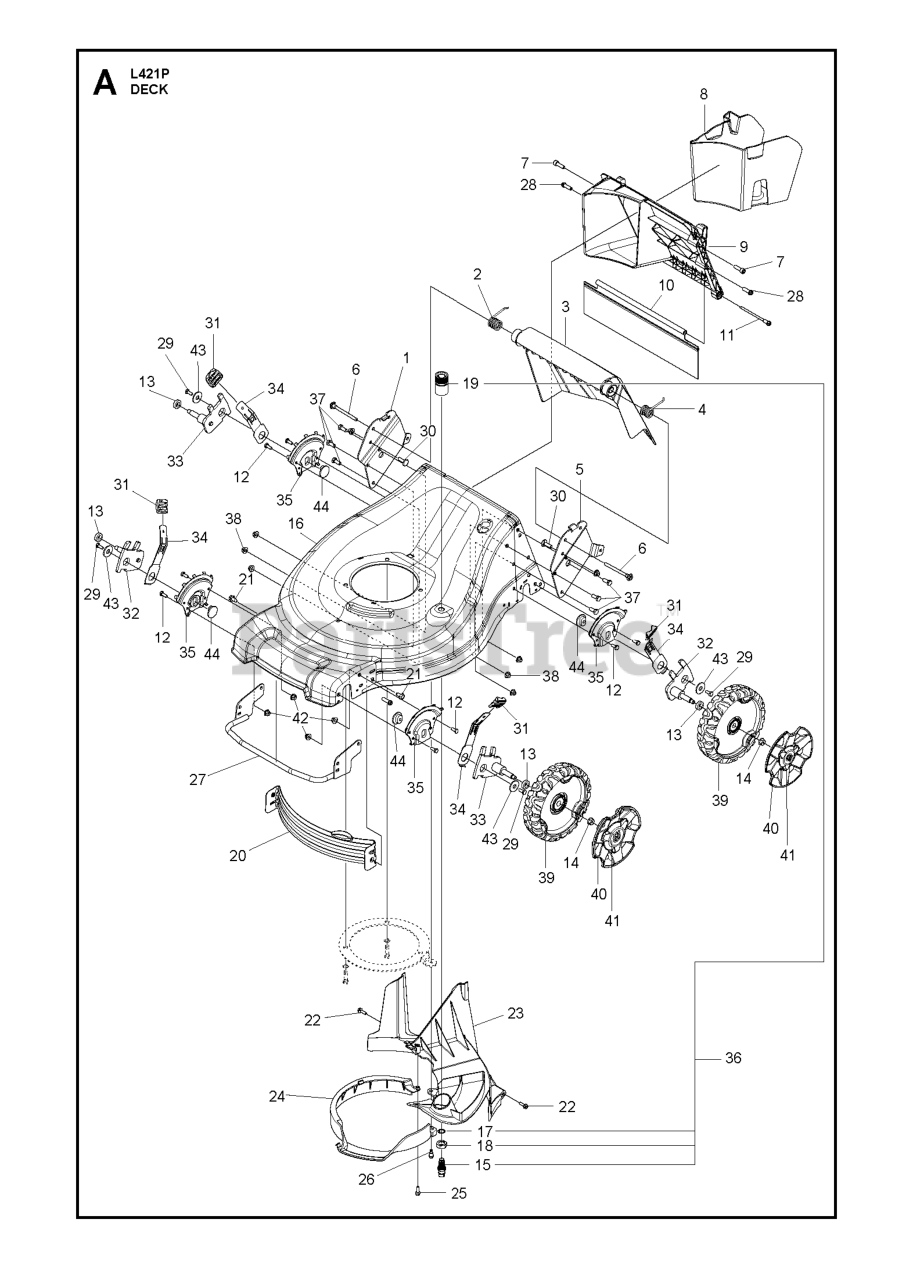

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

16

Husqvarna 588610232

HOUSING ASSY KIT 21EFF.COMM.66

Note: "21"" Commercial"

$148.99

$

Usually ships in 3-10 days

0

12

Husqvarna 874780416

BOLT

Note: 1/4-20.

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 590755001

TORSION SPRING DOOR, LH, 21 CO

Note: Left, Door

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

Note: Nut

$6.99

$

In Stock, Qty 20+

0

7

Husqvarna 587281101

SCREW.HI-LO,5/16-14 X T-45

Note: Hi-Lo, 5/16-14 X T-45

$3.49

$

In Stock, only 2 left!

0

3

Husqvarna 586138007

DOOR REAR, 21IN EFF GRAY MS-49
(Superseded to 586138004)

Note: Rear

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 586698801

SKIRT.REAR.21 EFF

Note: Rear

$13.99

$

In Stock, only 1 left!

0

22

Husqvarna 587599801

SCREW.HI-LO.13-16X.750.375XDRV
(Superseded to 532194189)

Note: Hi-Lo, 13-16 X .750

$7.49

$

In Stock, Qty 20+

0

24

Husqvarna 587081001

RING.STRIPPER.21 EFF

Note: Stripper

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 590560402

HANDLE BRACKET LEFT, 21 COMMER

Note: Adjustable Handle, Left

$27.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532701037

SELECTOR KNOB

Note: Ergonomic

$5.99

$

In Stock, only 4 left!

0

36

Husqvarna 532421114

KIT.WASH-OUT.PORT

Note: Kit

$24.99

$

In Stock, only 2 left!

0

44

Husqvarna 594019701

AXLE PIVOT AXLE CLEAR ZINC

Note: HGT. adjuster

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 587000605

SPRING.SELECT.4PT.21EFF.004

Note: Selector spring

$

$

Not available

9

Husqvarna 586137501

INSERT.REAR.21 EFF

Note: Rear

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590755201

TORSION SPRING DOOR, RH, 21 CO

Note: Right, Door

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

Note: Hex

$6.49

$

In Stock, only 4 left!

0

42

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

Note: 1/4 .20 Hex F18

$

$

Not available

8

Husqvarna 586922701

PLUG.MULCH.21 EFF

$26.99

$

In Stock, Qty 20+

0

29

Husqvarna 874780616

BOLT

Note: 3/8-16 X 1.00 GR5 Hex

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532184193

BOLT

Note: Pivot. 3/8-16

$

$

Not available

26

Husqvarna 581726101

BOLT SHOULDER_1/4-20_TRILOB

Note: Shoulder, 1/4-20 Tri-lobe

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

Note: Hex, 5/16

$7.49

$

In Stock, Qty 12

0

37

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

Note: Screw

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 584611601

WHEEL ASSY 210, IDLE, MEDIUM

$34.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

15

Husqvarna 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

Note: Zinc

$18.99

$

In Stock, only 1 left!

0

35

Husqvarna 587000407

ADJUSTER HEIGHT BLACK AUTOPHOR

Note: HGT. adjuster

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 584159301

HUB CAP

$6.99

$

Usually ships in 3-10 days

0

28

Husqvarna 587281101

SCREW.HI-LO,5/16-14 X T-45

Note: Hi-Lo, 5/16 X 1.00

$3.49

$

In Stock, only 2 left!

0

25

Husqvarna 587599801

SCREW.HI-LO.13-16X.750.375XDRV
(Superseded to 532194189)

Note: Hi-Lo, 13-16 X .750

$7.49

$

In Stock, Qty 20+

0

43

Husqvarna 819132012

WASHER
(Superseded to 596134901)

Note: 13/32 X 1-1/4 X 7/64 Thick Flat

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

Note: 5/16-18 x 0.75, Carriage bolt

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 587438201

SCREW.HI-LO.5/16-14 X 4.10

Note: Hi-Lo, 5/16-14 X 4.10

$4.99

$

In Stock, Qty 6

0

33

Husqvarna 590559702

AXLE AXLE ARM ASSM. LF,RR BLAC

Note: Axle arm LF/RR

$

$

Not available

32

Husqvarna 590674402

ARM AXLE ARM ASSM, RF, LR, 21

Note: Axle arm RF/LR

$

$

Not available

1

Husqvarna 590560502

HANDLE BRACKET RIGHT, 21 COMME

Note: Handle, Right

$27.99

$

Usually ships in 3-10 days

0

41

Husqvarna 584159401

NUT CAP

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 586560401

COVER.BELT/REAR BAFFLE.21 EFF

Note: Belt/Rear Baffle

$20.99

$

In Stock, Qty 20+

0

14

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

Note: Hex Flange, 3/8-16

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 586698601

BAFFLE.FRONT.21 EFF

Note: Front

$

$

Not available

17

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

Note: Star

$4.99

$

In Stock, only 2 left!

0

27

Husqvarna 590559905

BUMPER.ASM.GRY.498

Note: Front (Gray)

$

$

Not available
