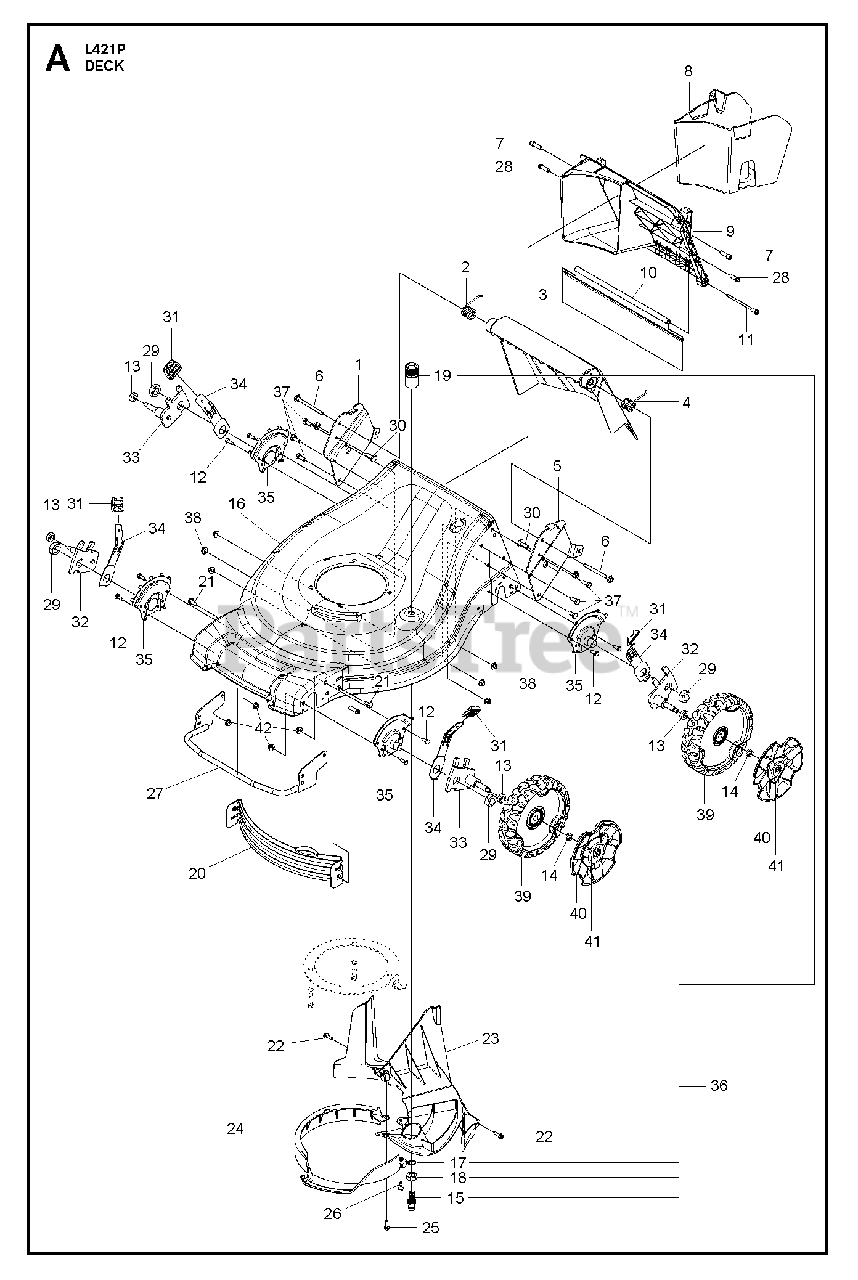

L 421 P (961330033-00) - Husqvarna 21" Walk-Behind Mower (2017-10) MOWER DECK / CUTTING DECK Parts Diagram

21" Walk-Behind Mower

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 590560502

HANDLE BRACKET RIGHT, 21 COMME

Note: Handle Right

$27.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590755201

TORSION SPRING DOOR, RH, 21 CO

Note: Right Door

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 586138001

DOOR.REAR.21 EFF.GRY
(Superseded to 586138004)

Note: REAR

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 590755001

TORSION SPRING DOOR, LH, 21 CO

Note: Left Door

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 590560402

HANDLE BRACKET LEFT, 21 COMMER

Note: Adjustable Handle Left

$27.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587198901

BOLT.DOOR.PIVOT..375-16.21EFF

Note: Pivot 3 /8-16

$3.49

$

In Stock, only 2 left!

0

7

Husqvarna 587281101

SCREW.HI-LO,5/16-14 X T-45

Note: Hi-Lo 5 /16-14 x T-45

$3.49

$

In Stock, only 2 left!

0

8

Husqvarna 586922701

PLUG.MULCH.21 EFF

$26.99

$

In Stock, Qty 20+

0

9

Husqvarna 586137501

INSERT.REAR.21 EFF

Note: REAR

$26.99

$

Usually ships in 3-10 days

0

10

Husqvarna 586698801

SKIRT.REAR.21 EFF

Note: REAR

$13.99

$

In Stock, only 1 left!

0

11

Husqvarna 587438201

SCREW.HI-LO.5/16-14 X 4.10

Note: Hi-Lo 5 /16-14 x 4 10

$4.99

$

In Stock, Qty 6

0

12

Husqvarna 874780410

BOLT
(Superseded to 539990072)

Note: 1 /4-20

$3.99

$

In Stock, only 1 left!

0

13

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

Note: Hex Flange 3 /8-16

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

Note: Zinc

$18.99

$

In Stock, only 1 left!

0

16

Husqvarna 588610232

Housing Assembly Kit, 21Eff Comm 66

Note: 21 Commercial

$148.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

Note: Star

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

Note: Hex

$6.49

$

In Stock, only 4 left!

0

19

Husqvarna 532416405

COUPLING.QUICK CONNECT

Note: Quick Connect

$10.99

$

In Stock, Qty 6

0

20

Husqvarna 586698601

BAFFLE.FRONT.21 EFF

Note: FRONT

$

$

Not available

21

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

Note: Hex 5 /16

$7.49

$

In Stock, Qty 12

0

22

Husqvarna 587599801

SCREW.HI-LO.13-16X.750.375XDRV
(Superseded to 532194189)

Note: Hi-Lo 13-16 x 750

$7.49

$

In Stock, Qty 20+

0

23

Husqvarna 586560401

COVER.BELT/REAR BAFFLE.21 EFF

Note: Rear Baffle

$20.99

$

In Stock, Qty 20+

0

24

Husqvarna 587081001

RING.STRIPPER.21 EFF

Note: Stripper

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 587599801

SCREW.HI-LO.13-16X.750.375XDRV
(Superseded to 532194189)

Note: Hi-Lo 13-16 x 750

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 581726101

BOLT SHOULDER_1/4-20_TRILOB

Note: Shoulder 1 /4-20 Tri-lobe

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 590559902

BUMPER ASSY FRONT, 21 COMMERCI

Note: Front (Gray)

$24.99

$

Usually ships in 3-10 days

0

28

Husqvarna 587281101

SCREW.HI-LO,5/16-14 X T-45

Note: Hi-Lo 5 /16 x 1 00

$3.49

$

In Stock, only 2 left!

0

29

Husqvarna 592784801

NUT HEXAGON LOCK 3/4-16" GRA Z

Note: Hex

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

Note: 5 /16-18 x 0 75 Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

31

Husqvarna 532701037

SELECTOR KNOB

Note: Ergonomic

$5.99

$

In Stock, only 4 left!

0

32

Husqvarna 590674402

ARM AXLE ARM ASSM, RF, LR, 21

Note: Axle Arm RF /LR

$

$

Not available

33

Husqvarna 590559702

AXLE AXLE ARM ASSM. LF,RR BLAC

Note: Axle Arm LR /RR

$

$

Not available

34

Husqvarna 587000605

SPRING.SELECT.4PT.21EFF.004

Note: Selector Spring

$

$

Not available

35

Husqvarna 590559202

PLATE HEIGHT ADJUSTER PLATE AS

Note: Adjuster Plate

$9.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532421114

KIT.WASH-OUT.PORT

Note: Wash-out 15 17 18 19

$24.99

$

In Stock, only 2 left!

0

37

Husqvarna 874780512

BOLT
(Superseded to 596030501)

Note: SCREW

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

Note: Nut

$6.99

$

In Stock, Qty 20+

0

39

Husqvarna 584611601

WHEEL ASSY 210, IDLE, MEDIUM

$34.99

$

Usually ships in 3-10 days

0

40

Husqvarna 584159301

HUB CAP

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 584159401

Cap Nut

$5.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

Note: 1 /4 20 Hex F18

$

$

Not available
