L 2500 AR - Electrolux/AYP Lawn Tractor TRANSAXLE PEERLESS - MODEL NUMBER 143.801.047 Parts Diagram

Lawn Tractor

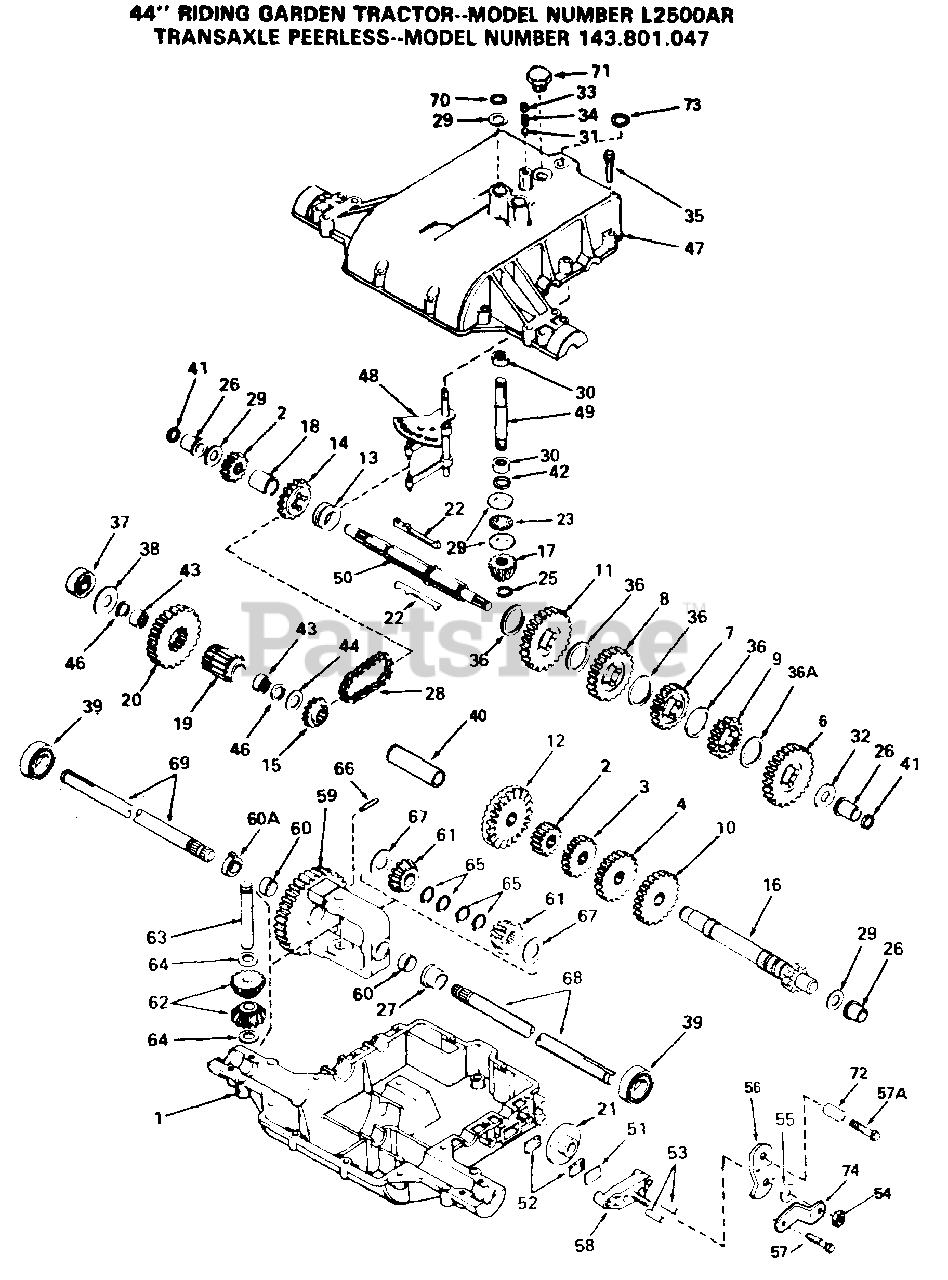

TRANSAXLE PEERLESS - MODEL NUMBER 143.801.047 Parts Diagram

  • Title
1

Electrolux/AYP 77071A

Case, Transfer

$

$

Not available

2

Electrolux/AYP 778136

GEAR, SPUR, 15 TEETH

$

$

Not available

3

Electrolux/AYP 778200

GEAR, SPUR, 20T

$

$

Not available

4

Electrolux/AYP 778201

GEAR, SPUR, 25T

$

$

Not available

6

Electrolux/AYP 778216

GEAR, SPUR (41 TEETH)

$

$

Not available

7

Electrolux/AYP 778204

GEAR, SPUR (25 TEETH)

$

$

Not available

8

Electrolux/AYP 778205

GEAR, SPUR (30 TEETH)

$

$

Not available

9

Electrolux/AYP 778209

GEAR, SPUR, 19 TEETH

$

$

Not available

10

Electrolux/AYP 778208

GEAR, SPUR, 31T

$

$

Not available

11

Electrolux/AYP 778206

GEAR, SPUR (35 TEETH)

$

$

Not available

12

Electrolux/AYP 778154

GEAR, BEVEL, (42 TEETH)

$

$

Not available

13

Electrolux/AYP 784266

COLLAR, SHIFT

$

$

Not available

14

Electrolux/AYP 786083

SPROCKET (18 TEETH)

$

$

Not available

15

Electrolux/AYP 786082

SPROCKET 9T

$

$

Not available

16

Electrolux/AYP 776248

COUNTERSHAFT & GEAR

$

$

Not available

17

Electrolux/AYP 778176

BEVEL PINION, INPUT

$

$

Not available

$

$

Not available

19

Electrolux/AYP 778138

PINION, OUTPUT

$

$

Not available

20

Electrolux/AYP 778139

GEAR, OUTPUT

$

$

Not available

21

Electrolux/AYP 790003

DISK, BRAKE

$

$

Not available

22

Electrolux/AYP 792089A

KEY (4 REQUIRED)

$

$

Not available

23

Electrolux/AYP 780071

THRUST BEARING

$

$

Not available

25

Electrolux/AYP 788040

RETAINING RING

$

$

Not available

26

Electrolux/AYP 780105A

BUSHING, FLANGED

$

$

Not available

27

Electrolux/AYP 780118A

BUSHING, FLANGED

$

$

Not available

28

Electrolux/AYP 786081

CHAIN, ROLLER

$

$

Not available

29

Electrolux/AYP 780072

WASHER THRUST

$

$

Not available

30

Electrolux/AYP 780122

BEARING, NEEDLE

$

$

Not available

31

Electrolux/AYP 792077

BALL STEEL, 5/16" DIA.

$

$

Not available

$

$

Not available

33

Electrolux/AYP 792078

SCREW, 3/8-16 X 3/8"

$

$

Not available

$

$

Not available

35

Electrolux/AYP 792073

SCREW, 1/4-20 X 1-1/4

$

$

Not available

36

Electrolux/AYP 780108

WASHER THRUST

$

$

Not available

$

$

Not available

37

Electrolux/AYP 780121

BEARING, BALL

$

$

Not available

38

Electrolux/AYP 780113

WASHER, FLAT

$

$

Not available

39

Electrolux/AYP 780119

BEARING BALL

$

$

Not available

40

Electrolux/AYP 786113

SPACER (2-1/4" LONG)

$

$

Not available

41

Electrolux/AYP 788051

SEAL, SQUARE CUT

$

$

Not available

42

$

$

Not available

43

Electrolux/AYP 780112

BEARING, NEEDLE

$

$

Not available

44

Electrolux/AYP 780114

WASHER, FLAT

$

$

Not available

46

Electrolux/AYP 788053

SEAL, SQUARE CUT

$

$

Not available

47

Electrolux/AYP 772082

COVER, TRANSAXLE

$

$

Not available

48

Electrolux/AYP 784290

ROD & FORK ASSY., SHIFT

$

$

Not available

49

Electrolux/AYP 776135

SHAFT, INPUT

$

$

Not available

50

Electrolux/AYP 776184A

SHAFT, BRAKE

$

$

Not available

51

Electrolux/AYP 790007

PLATE BRAKE PAD

$

$

Not available

52

$

$

Not available

53

$

$

Not available

54

Electrolux/AYP 792075

LOCKNUT 5/16-24

$

$

Not available

55

Electrolux/AYP 792076

WASHER, FLAT

$

$

Not available

56

Electrolux/AYP 790038

LEVER, BRAKE

$

$

Not available

57

Electrolux/AYP 792073

SCREW, 1/4-20 X 1-1/4

$

$

Not available

57A

Electrolux/AYP 792085

SCREW FLNG HEX 1/4-20 X 2-1/4

$

$

Not available

58

Electrolux/AYP 790025

HOLDER BRAKE PAD

$

$

Not available

59

Electrolux/AYP 778175

GEAR ASSY DIFFERENTIAL (INCL. 2 OF #60)

$

$

Not available

$

$

Not available

60A

$

$

Not available

61

Electrolux/AYP 778166

GEAR, BEVEL

$

$

Not available

62

Electrolux/AYP 778131

PINION, BEVEL

$

$

Not available

63

Electrolux/AYP 786034

PINE, DRIVE

$

$

Not available

64

Electrolux/AYP 780065

WASHER, THRUST

$

$

Not available

65

Electrolux/AYP 792125

RING RETAINER

$

$

Not available

66

$

$

Not available

$

$

Not available

68

Electrolux/AYP 774657

AXLE (15-1/8" LONG)

$

$

Not available

69

Electrolux/AYP 774658

AXLE (13-1/4" LONG)

$

$

Not available

70

Electrolux/AYP 792035

RING, RETAINER

$

$

Not available

71

Electrolux/AYP 792074

PLUG, THRDED, 9/16-18

$

$

Not available

$

$

Not available

73

Electrolux/AYP 788069

SEAL SQUARE CUT

$

$

Not available

74

Electrolux/AYP 786086

BRKT BRAKE LEVER

$

$

Not available
