L 2500 AR - Electrolux/AYP Lawn Tractor DRIVE Parts Diagram

Lawn Tractor

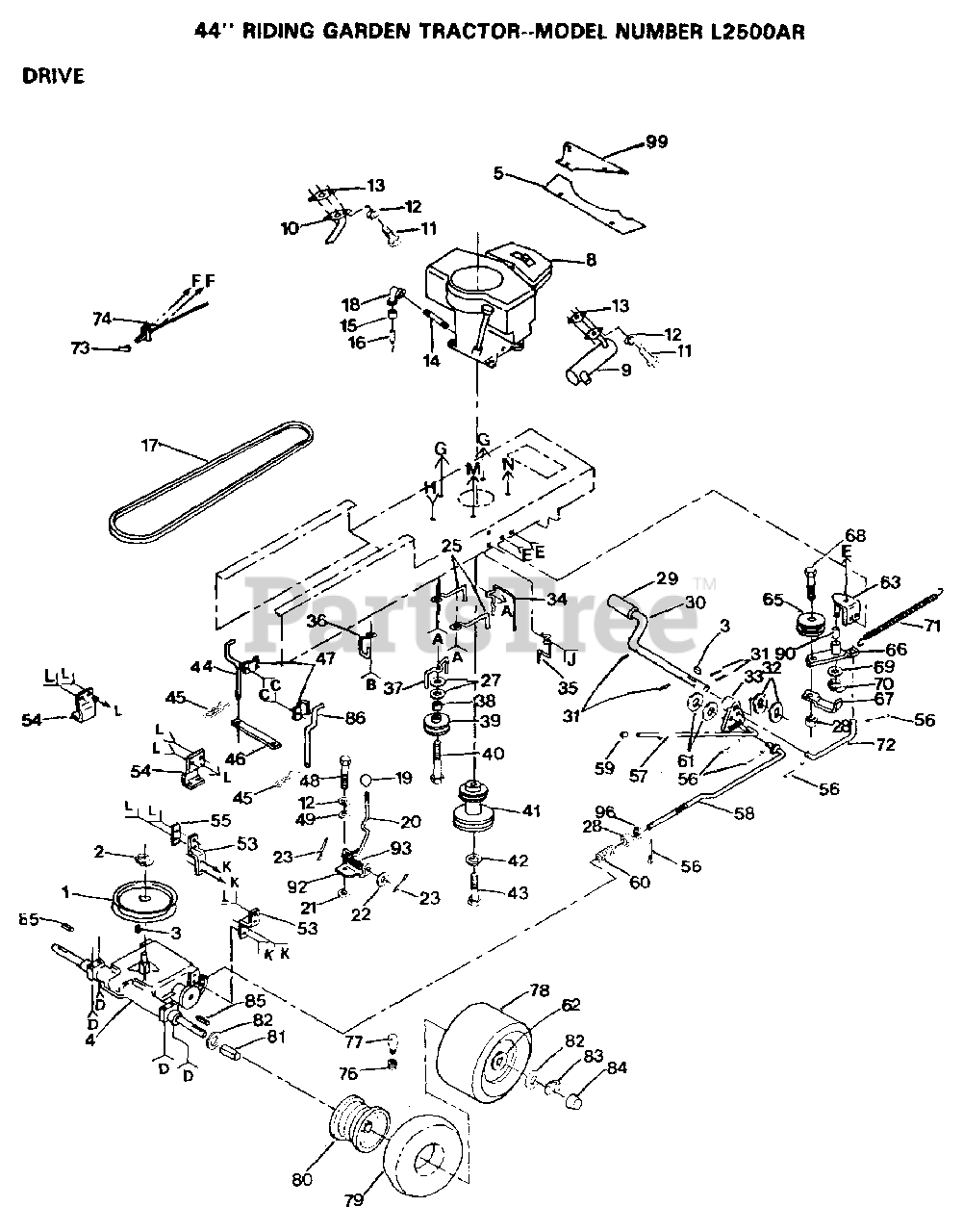

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 106192X

Pulley, Transaxle

$

$

Not available

2

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

3

Murray 2228M

SUB= 2228M1

$

$

Not available

4

Electrolux/AYP 109566X

TRANSAXLE

$

$

Not available

5

Electrolux/AYP 109741X

SUB= 123190X

$

$

Not available

8

Electrolux/AYP 109570X

ENGINE

$

$

Not available

9

Electrolux/AYP 108373X

MUFFLER HYT

$

$

Not available

10

Electrolux/AYP 100229L

EXHAUST TUBE T

$

$

Not available

11

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

12

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 8545J

SUB= 272250

$

$

Not available

14

Electrolux/AYP 13280328

PIPE NIPPLE
(Superseded to 813280328)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 13300300

COUPLING LT

$

$

Not available

16

Electrolux/AYP 13290300

PLUG T
(Superseded to 813290300)

$

$

Not available

17

Electrolux/AYP 108310X

SUB= 130969
(Superseded to 532130969)

$30.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 13240300

STREET ELBOW LT
(Superseded to 813240300)

$7.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 105699X

SUB= 110458X

$

$

Not available

21

Electrolux/AYP 106362X

WASHER
(Superseded to 532106362)

$2.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

23

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 105730X

"KEEPER,BLT ENG LT"
(Superseded to 532105730)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 109037X

FOOT SHAFT PEDAL

$

$

Not available

31

Murray 1572H

SUB= 2882J

$

$

Not available

32

Electrolux/AYP 19252016

SUB= 121749X

$

$

Not available

33

Electrolux/AYP 106918X

ARM BRAKE LT
(Superseded to 583653301)

$

$

Not available

34

Electrolux/AYP 106301X

SUB= 121440X

$

$

Not available

35

Electrolux/AYP 106300X

SUB= 121441X

$

$

Not available

36

Electrolux/AYP 104777X

SUB= 140312

$

$

Not available

37

Electrolux/AYP 109070X

BELT KEEPER LT
(Superseded to 532109070)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 4859J

SUB= 123674X

$

$

Not available

40

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 105731X

SUB= 137326

$

$

Not available

42

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 74770720

SUB= 71130720
(Superseded to 874780720)

$6.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 108331X

SUB= 122067X

$

$

Not available

45

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

46

Electrolux/AYP 106296X

SUB= 122066X
(Superseded to 122066X)

$

$

Not available

47

Electrolux/AYP 106190X

CLAMP LT
(Superseded to 532106190)

$

$

Not available

48

Electrolux/AYP 71040412

SUB= 74550412

$

$

Not available

49

Electrolux/AYP 19091210

WASHER LT
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 106360X

STRAP TORQUE LT
(Superseded to 532121520)

$7.99

$

In Stock, only 3 left!

0

54

Electrolux/AYP 109167X

BRACKET LT
(Superseded to 532109167)

$

$

Not available

55

Electrolux/AYP 106157X

PLATE-STRAP LT

$

$

Not available

56

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

57

Electrolux/AYP 105844X

SUB= 125637X

$

$

Not available

58

Electrolux/AYP 105752X

SUB= 110437X

$

$

Not available

59

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 106888X

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

61

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

62

Electrolux/AYP 19252616

SUB= 121748X

$

$

Not available

63

Electrolux/AYP 105724X

SUB= 123102X

$

$

Not available

65

Electrolux/AYP 106298X

SUB= 139245

$

$

Not available

66

Electrolux/AYP 105705X

SUB= 125829X

$

$

Not available

67

Electrolux/AYP 106499X

SUB= 123205X

$

$

Not available

68

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 207J

WASHER T
(Superseded to 532000207)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

71

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 61159

KNOB

$

$

Not available

74

Electrolux/AYP 106678X

THROTTLE CNTRL LT

$

$

Not available

76

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

77

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

78

Electrolux/AYP 106268X

SUB= 122074X
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 7152J

TUBE.18X9.5-8
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 106272X

"RIM ASSY 10"" T"

$

$

Not available

81

Electrolux/AYP 105702X

"SPACER, SPLIT LT"

$

$

Not available

82

Electrolux/AYP 19252016

SUB= 121749X

$

$

Not available

83

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 2703J

SUB= 123583X

$

$

Not available

86

Electrolux/AYP 108332X

KEEPER BELT RH
(Superseded to 122068X)

$

$

Not available

90

Electrolux/AYP 105706X

"LY, BEARING"
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 109569X

PLATE T
(Superseded to 583657801)

$6.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 105700X

SPRING LT
(Superseded to 532105700)

$

$

Not available

96

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

99

Electrolux/AYP 104919X

SUB= 109740X

$

$

Not available
