L 2500 AR - Electrolux/AYP Lawn Tractor CHASSIS AND ENCLOSURE Parts Diagram

Lawn Tractor

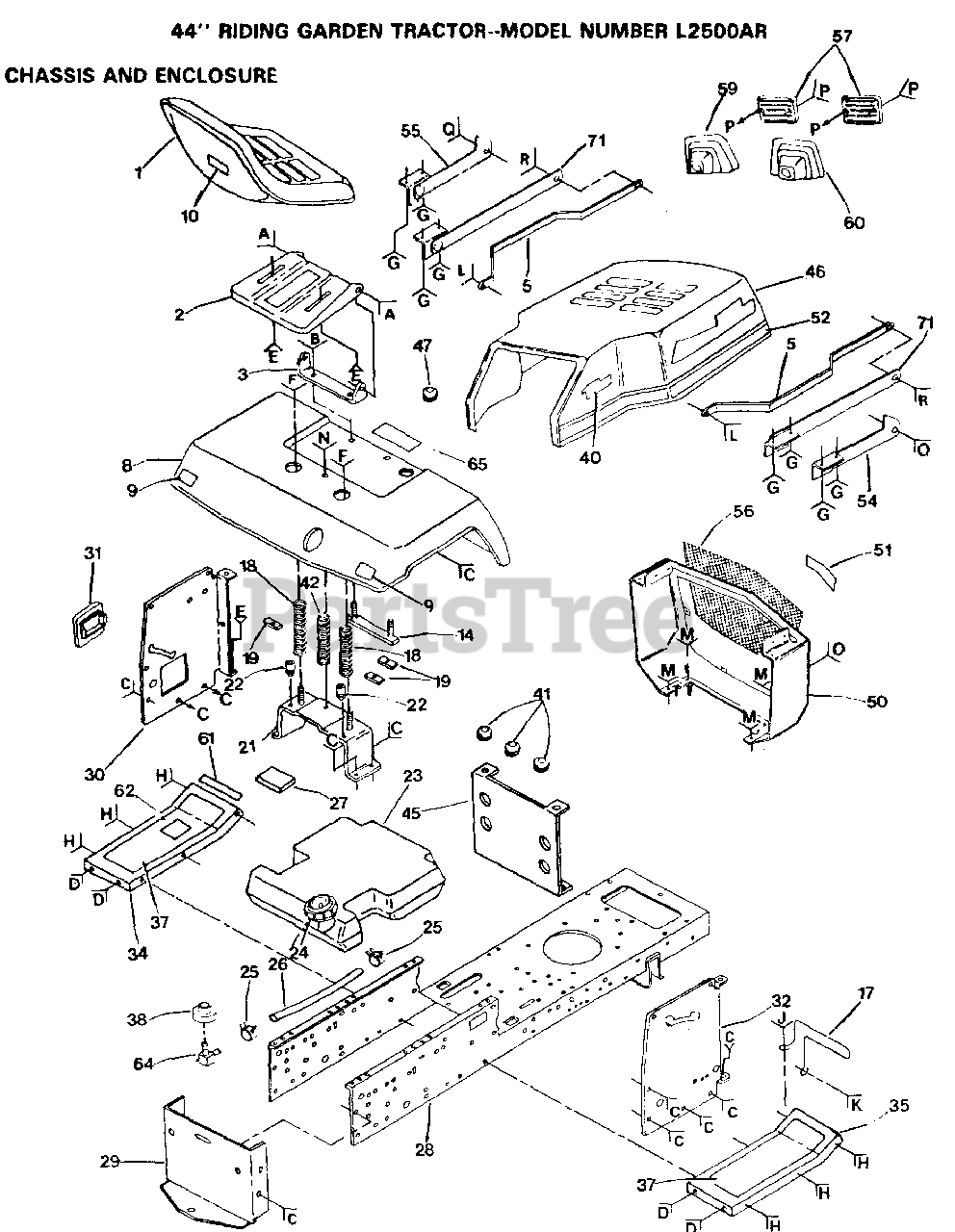

CHASSIS AND ENCLOSURE Parts Diagram

  • Title

1

Electrolux/AYP 110059X

Seat

$

$

Not available

2

Electrolux/AYP 109866X

SEAT PAN T
(Superseded to 583658401)

$36.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 109871X

BRKT.ASM.SEAT.P

$

$

Not available

5

Electrolux/AYP 109587X

NLA

$

$

Not available

8

Electrolux/AYP 109593X366

FENDER

$

$

Not available

9

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available

10

Electrolux/AYP 109323X

NLA

$

$

Not available

14

Electrolux/AYP 105511X

SUB= 140675

$

$

Not available

17

Electrolux/AYP 108885X

GUARD MUFFLER HYT

$

$

Not available

18

Electrolux/AYP 105512X

SPRING LT

$

$

Not available

19

Electrolux/AYP 105514X

"CLAMP, SPRING LT"
(Superseded to 583646001)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 105509X

SUB= 137113

$

$

Not available

22

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 106020X

SUB= 151346

$

$

Not available

24

Electrolux/AYP 109462X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 6999R

SUB= 123487X

$

$

Not available

26

Electrolux/AYP 5277J

SUB= 8543R

$

$

Not available

27

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

28

Electrolux/AYP 109512X

CHASSIS T

$

$

Not available

29

Electrolux/AYP 102481X

SUB= 145009

$

$

Not available

30

Electrolux/AYP 109665X

SUB= 532132072

$

$

Not available

31

Electrolux/AYP 105505X

SUB= 121794X

$

$

Not available

32

Electrolux/AYP 109666X

SUB= 106976X

$

$

Not available

34

Electrolux/AYP 105465X366

FOOTREST - L.H.

$

$

Not available

35

Electrolux/AYP 105464X366

FOOTREST - R.H.

$

$

Not available

37

Electrolux/AYP 108256X

PAD FOOTREST T
(Superseded to 532108256)

$

$

Not available

38

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 109435X

NLA

$

$

Not available

41

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

42

Electrolux/AYP 109867X

SPRING T
(Superseded to 583658501)

$60.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 104920X

NLA

$

$

Not available

46

Electrolux/AYP 3607J366

SUB= 3607J419

$

$

Not available

47

Electrolux/AYP 109641X

GROMMET T
(Superseded to 583657901)

$2.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 5351J366

SUB= 5351J419

$

$

Not available

51

Electrolux/AYP 109673X

NLA

$

$

Not available

52

Electrolux/AYP 109754X

NLA

$

$

Not available

54

Electrolux/AYP 677A876

STRAP ASSY T

$

$

Not available

55

Electrolux/AYP 677A875

STRAP ASSY T

$

$

Not available

56

Electrolux/AYP 101235L

SCREEN GRILL GTV

$

$

Not available

57

Electrolux/AYP 109671X

LENS T

$

$

Not available

59

Electrolux/AYP 7606J366

SUB= 7606J361

$

$

Not available

60

Electrolux/AYP 7607J366

SUB= 7607J361

$

$

Not available

61

Electrolux/AYP 4900J

DECAL T

$

$

Not available

62

Electrolux/AYP 109199X

SUB= 146046
(Superseded to 582965201)

$4.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 8710J

FUEL TANK STEM GT

$

$

Not available

65

Electrolux/AYP 106974X

SUB= 133796

$

$

Not available

71

Electrolux/AYP 677A432

STRAP ASSY-REAR T
(Superseded to 583773401)

$3.99

$

Usually ships in 3-10 days

0
